Запчасти Case IH 2400 (15-03) - WHEELS AND TRACTION, REAR WHEELS Wheels & Traction

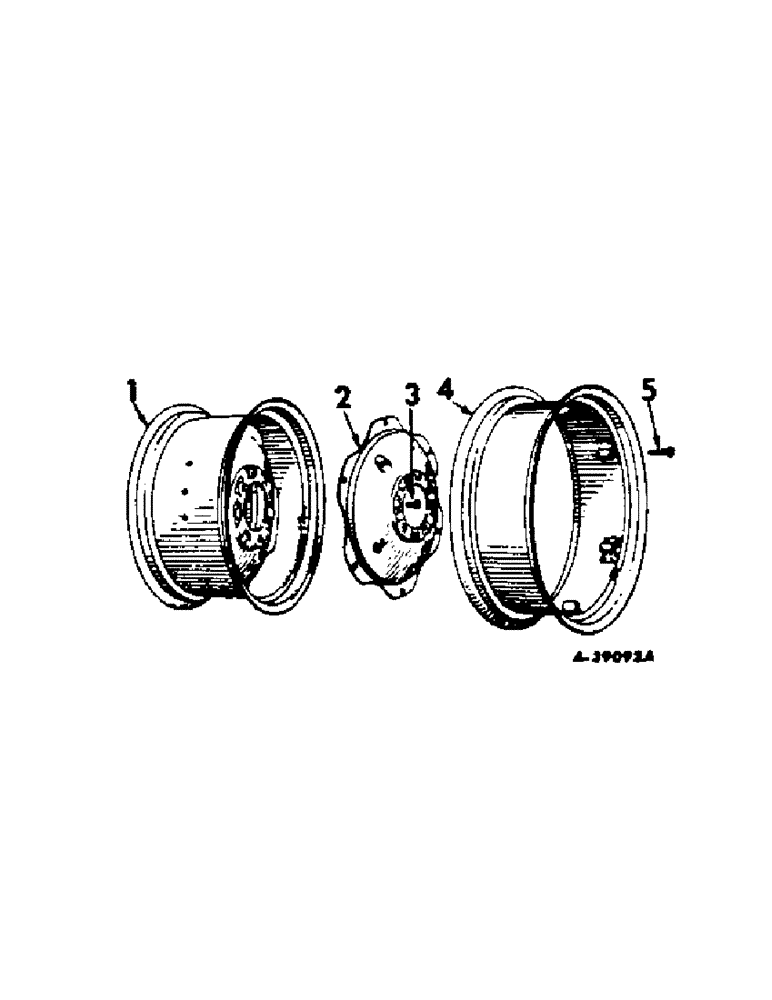

Схема запчастей Case IH 2400 - (15-03) - WHEELS AND TRACTION, REAR WHEELS Wheels & Traction
5
3
1
4
2

Артикул

Название

Примечание

Количество

1

364346R92

WHEEL

RIM AND DISC ASSY, W12-24 rear wheel for 14.9-24 or 16.9-24 tire

2шт.

1

365480R92

WHEEL

RIM AND DISC ASSY, W16L-24 rear wheel for 16.9-24 tire

2шт.

1

376196R91

WHEEL

RIM AND DISC ASSY, W12-24 rear wheel for 14.9-24 tire

2шт.

1

376197R91

WHEEL ASSY.

RIM AND DISC ASSY, W12-28 rear wheel for 14.9-28 tire, 2400 series A tractors

2шт.

2

374806R1

DISC, WHEEL

WHEEL, 24 in. disc rear, 4 used for dual rear wheels

2шт.

2

361724R1

WHEEL DISC

WHEEL, 28 in. disc rear

2шт.

3

(Not used in this application)

1шт.

4

374808R92

RIM

W12-24 rear wheel w/clamps for 14.9-24 tire

2шт.

4

363988R92

RIM

W12-28 rear wheel w/clamps for 13.6-28 or 14.9-28 tires

2шт.

4

361700R92

RIM

W10-28 rear wheel w/clamps for 12.4-28 or 13.6-28 tire

2шт.

5

363800R1

BOLT,5/8" - 18 x 3 1/8"

rear wheel rim clamp, 12 used for single rear wheels, 24 used for dual rear wheels

1шт.

369730R1

WASHER

rear wheel rim bolt

12шт.

352777R1

NUT

rear wheel rim

12шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

138550H2

VALVE

TR-618A air-liquid tubeless

2шт.

P/N 382268R1 - W7-24 Rear wheel

1шт.

Выбрано товаров: 16
