Запчасти Case IH 2400 (15-02) - WHEELS AND TRACTION, FRONT WHEELS Wheels & Traction

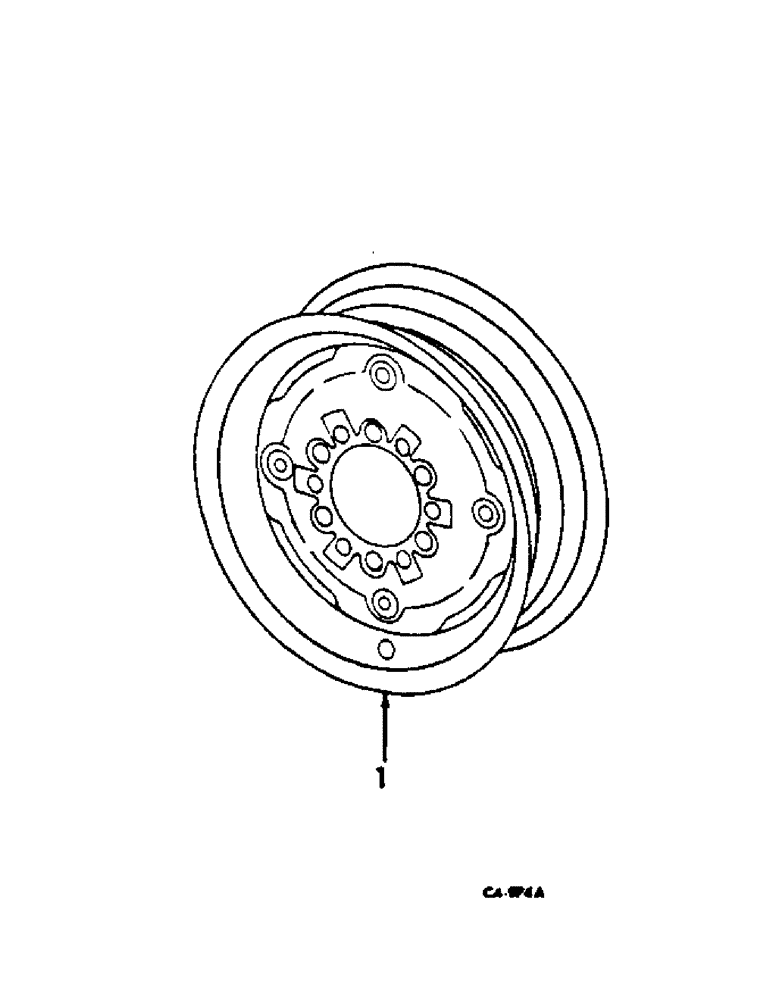

Схема запчастей Case IH 2400 - (15-02) - WHEELS AND TRACTION, FRONT WHEELS Wheels & Traction
1

Артикул

Название

Примечание

Количество

1

361714R91

WHEEL ASSY.

WHEEL ASSY, front, disc type, 4.25 KA-16DC rim for 6.00-16 or 6.50-16 tires

2шт.

1

364343R92

WHEEL

ASSY, front, disc type, 5.50F x 16DC rim for 7.50-16 or 6.50-16 tires, 5KB x 15DC rim for 5.90-15 tire

2шт.

1

622192R91

WHEEL

ASSY, front, disc type, 5KB x 15DC rim for 5.90-15 tires, 2400 series A lo-boy tractors

2шт.

1

66504C1

WHEEL

ASSY, front, disc type, W8-1/2 JA_12 rim for 12.00_12 tires

2шт.

387897R91

VALVE STEM

VALVE, TR-415 tubeless tire

2шт.

138550H2

VALVE

air liquid TR-618A

2шт.

387841R91

VALVE

ASSY, TR-413 tubeless type

2шт.

Выбрано товаров: 7
