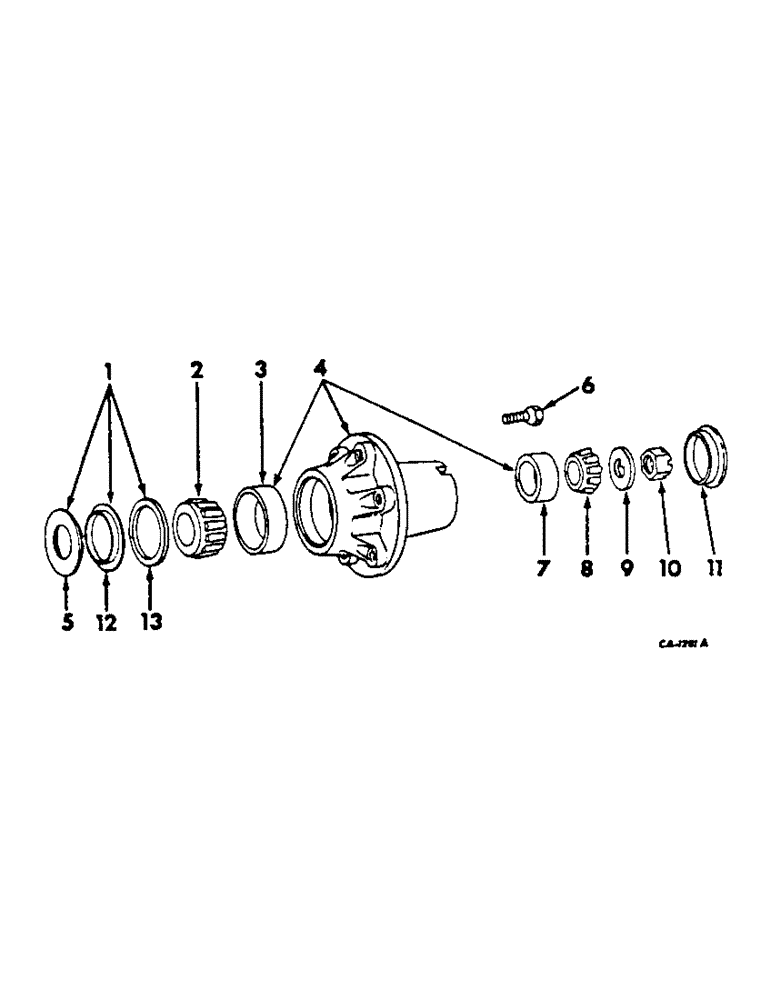

Запчасти Case IH 2400 (14-13) - SUSPENSION, FRONT WHEEL HUB, BEARINGS & CAP, INTL 2400 SERIES A TRACTOR WITH CAST I BEAM FRONT AXLE Suspension

1

378402R11

RETAINER

ASSY, hub felt

2шт.

2

ST2005A

ROLLER BEARING,44.45mm ID x 30.94mm W

CONE, front wheel inner bearing

2шт.

3

ST954

BEARING, CUP,1.7505" ID x 3.4385" OD x 1.2015"

CUP, front wheel inner bearing

2шт.

4

378401R11

HUB

ASSY, front wheel

2шт.

5

RETAINER, oil seal, not serviced separately, furnish retainer assy 378402R11

1шт.

6

403538R2

WHEEL BOLT,Hex, 9/16" - 18 x 1.21"

BOLT, front wheel mtg

12шт.

7

20646DA

TAPERED BEARING,1.125" ID x 2.484" OD x 0.937"

CUP, front wheel outer bearing

2шт.

8

ST2034

TAPERED BEARING,1.125" ID x 2.484" OD x 0.9375"

CONE, front wheel outer bearing

2шт.

9

97788HA

WASHER,1.033" ID x 2.125" OD x 2.03"

brg adjustable nut

2шт.

10

25-1316

NUT,1"-14, G5

NUT, SLOTTED, , Bearing Adj. 1"-14, G5

2шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

11

378814R1

CAP

front wheel hub

2шт.

12

97738H

RETAINER COLLAR

RETAINER, oil seal

2шт.

13

97737HA

RING

FELT, oil seal

2шт.

65990C91

PACKAGE

front wheel bearing overhaul, consists of (1) cone ST2005A, (1) cup ST954, (1) cone ST2034, (1) cup 20646DA, (1) washer 97788HA, (1) retainer assembly 378402R11

1шт.
