Запчасти Case IH 2400 (14-07) - SUSPENSION, CAST I BEAM FRONT AXLE, INTERNATIONAL 2400 SERIES A TRACTORS Suspension

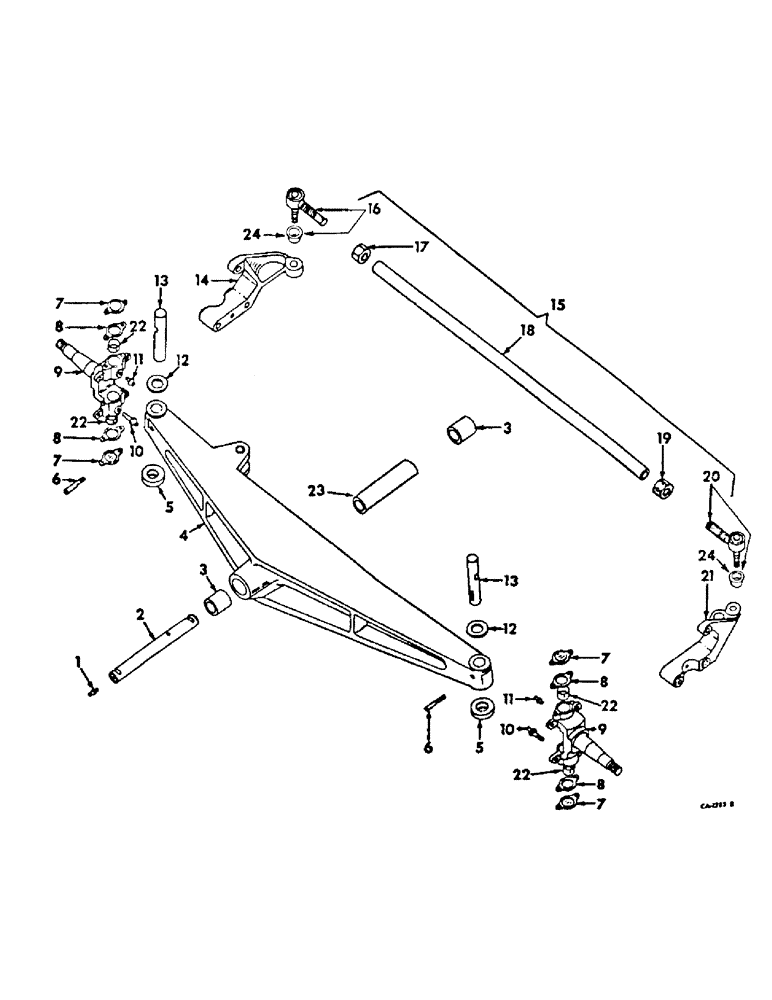

Схема запчастей Case IH 2400 - (14-07) - SUSPENSION, CAST I BEAM FRONT AXLE, INTERNATIONAL 2400 SERIES A TRACTORS Suspension
1
22
13
7
8
8
24
9
18
7
22
8
5
23
9
20
14
19
7
3
7
6
5
24
2
22
17
8
16
4
13
3
21
10
11
10
12
15
6
22
11
12

Артикул

Название

Примечание

Количество

1

19628R91

NIPPLE, LUBE

FITTING, 1/8-27 PTF 45 deg lub

1шт.

2

378503R1

PIN

front axle pivot

1шт.

180193

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

SCREW, 1/2-13 x 3-3/4 hex-hd cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

3

378813R1

BUSHING

axle

2шт.

4

378502R12

CENTER AXLE

AXLE ASSY, front, includes ref nos 3 and 23

1шт.

5

21076D

BEARING ASSY,31.9mm ID x 55.56mm OD x 16.13mm W

BEARING, steering knuckle thrust

2шт.

6

111571H

KEY

draw-king pin

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

70590R1

CAP

steering knuckle

4шт.

51124V

SCREW

steering knuckle cap

8шт.

116120

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

8

70591R1

GASKET

steering knuckle cap

4шт.

9

112775R11

STEERING KNUCKLE

KNUCKLE ASSY, steering, includes ref no. 22 and pin 107317

2шт.

107317

GROOVED PIN,3/16" x 1/2", Type A

Pin, Grooved, , Taper 3/16" x 1/2", Type A

1шт.

10

219-7

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, 1/8-27 PTF str lub

2шт.

11

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

12

61554R1

WASHER

SHIM, steering knuckle spacer light

1шт.

12

70586R1

SHIM

steering knuckle spacer med

1шт.

13

70592R1

PIVOT PIN,31.75mm OD x 171.45mm L

PIN, king-pin pivot

2шт.

14

538717R1

ARM, steering knuckle RH, replaces 378400R1

1шт.

414-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

SCREW, 5/8-18 x 2-1/4 hex-hd cap

1шт.

414-1060

BOLT,Hex, 5/8" - 18 x 3-3/4", Gr 5

SCREW, 5/8-18 x 3-3/4 hex-hd cap

2шт.

425-110

5/8-18 hex.

3шт.

15

NSS

NOT SOLD SEPARAT

ROD ASSY, tie

2шт.

16

379327R91

END

ASSEMBLY - rod, right

1шт.

425-1910

SLOTTED NUT,5/8"-18, G5, Thk

NUT, 5/8-18 znd slt. hex.

1шт.

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

1шт.

17

379329R1

LOCK NUT

lock RH

1шт.

18

535768R2

TUBE

connecting, gasoline engine tractors

2шт.

18

379325R1

TUBE,0.76" ID, 0.97" OD, 36.72" Length

connecting, diesel engine tractors

2шт.

19

379328R1

LOCK NUT

lock LH

1шт.

20

379326R91

END

ASSEMBLY - rod, left

1шт.

425-1910

SLOTTED NUT,5/8"-18, G5, Thk

NUT, 5/8-18 znd slt. hex.

1шт.

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

1шт.

21

538716R1

ARM

steering knuckle LH, replaces 378399R1

1шт.

271749

PLATE,Hex, 5/8" - 18 x 2 1/4", Gr 5

SCREW, 5/8-18 x 2-1/4 hex-hd cap

1шт.

414-1060

BOLT,Hex, 5/8" - 18 x 3-3/4", Gr 5

SCREW, 5/8-18 x 3-3/4 hex-hd cap

2шт.

121358

YOKE

5/8-18 hex.

3шт.

22

70589R1

BRONZE BUSHING,31.37mm ID x 34.66mm OD x 40.21mm L

BUSHING, steering knuckle

4шт.

23

530975R2

SPACER

1шт.

24

358900R1

SEAL

COVER, dust

2шт.

Выбрано товаров: 43
