Запчасти Case IH 2400 (14-04) - SUSPENSION, FRONT AXLE, SWEPT BACK Suspension

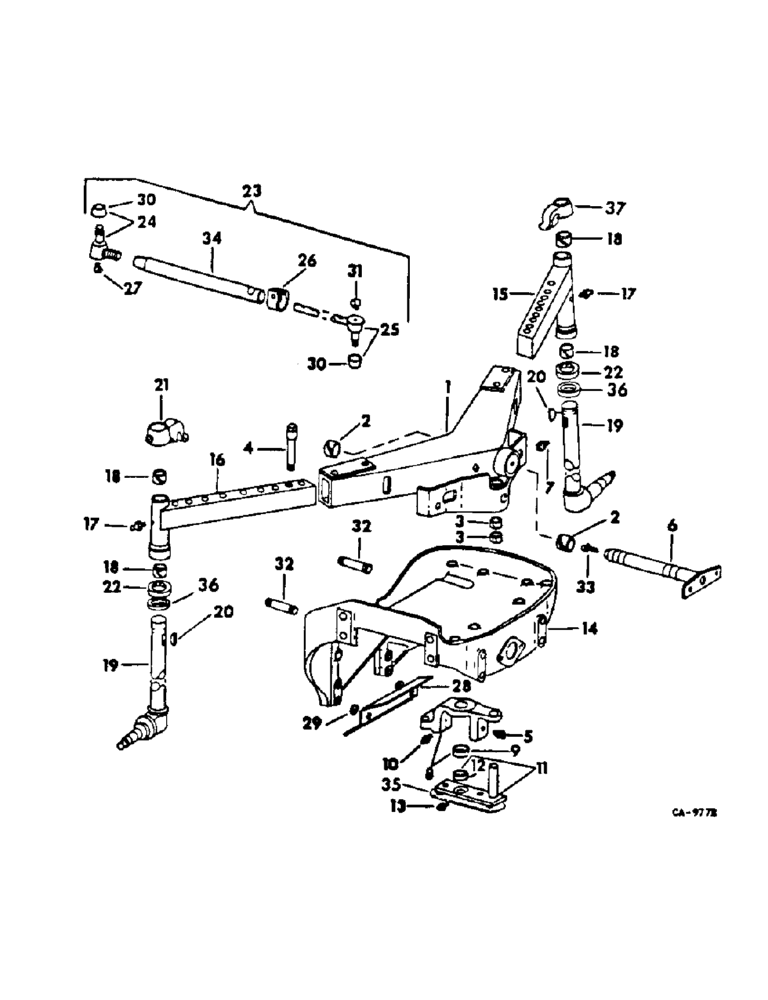

Схема запчастей Case IH 2400 - (14-04) - SUSPENSION, FRONT AXLE, SWEPT BACK Suspension
35
5
4
19
33
30
29
36
16
25
13
32
14
18
12
28
26
3
22
17
20
24
10
37
27
22
1
34
2
18
31
19
21
32
20
9
6
15
11
23
2
18
7
3
18
36
8
17
30

Артикул

Название

Примечание

Количество

.

SERVICE PARTS, adjustable front axle, 48 to 80 in. tread, International 454 tractors, consists of all unmarked parts and those marked unit A

1шт.

.

SERVICE PARTS, adjustable front axle, 56 to 76 in. tread, International 2400 series A lo-boy tractors, consists of all unmarked parts and those marked unit B

1шт.

.

SERVICE PARTS, narrow tread front axle, 44 to 72 in. tread, International 454 tractors, consists of all unmarked parts and those marked unit C

1шт.

1

539158R92

NO LONGER SERVICED

AXLE ASSY, front, includes ref nos 2 and 3, will work for 405564R91, units A and B

1шт.

1

539162R92

AXLE ASSY, front, includes ref nos 2 and 3, will work for 534276R91, unit C

1шт.

2

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

pivot

2шт.

3

405574R1

BUSHING

support

2шт.

4

14-1276

SCREW,Hex, 3/4 - 16 x 4 3/4", Gr 5

3/4-16 x 4-3/4 hex-hd cap, optional w/bolt 405575R2, units A and C

4шт.

.

539568R1

SPACER

4шт.

.

405576R1

NUT

front axle

4шт.

4

405575R2

BOLT,Shldr, 3/4" - 16 x 3.75"

shoulder, optional w/screw 271645, units A and C

1шт.

.

405576R1

NUT

front axle

4шт.

4

14-1276

SCREW,Hex, 3/4 - 16 x 4 3/4", Gr 5

3/4-16 x 4-3/4 hex-hd cap, optional w/bolt 405584R2, unit B

4шт.

.

405576R1

NUT

front axle

4шт.

.

539569R1

BUSHING

SPACER

4шт.

4

405584R2

BOLT,Shldr, 3/4" - 16 x 4

Shoulder, Optional w/screw 271645, Unit B

1шт.

.

405576R1

NUT

front axle

4шт.

5

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING, 1/4 65 deg angle drive type

1шт.

6

539128R1

SHAFT ASSY.

SHAFT ASSY, front axle pivot, on orders for pin 405577R1 and plate 4054578R1 furnish shaft 539128R1 and fitting 273352

1шт.

.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

7

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str lub

1шт.

8

405579R11

ARM

ASSY, PS center, units A and C

1шт.

8

405585R11

ARM

ASSY, PS center, unit B

1шт.

9

379748R1

BUSHING

1шт.

10

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg angle drive

1шт.

11

405580R11

BAR ASSY.

BAR ASSY, PS cyl

1шт.

.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

12

379748R1

BUSHING

1шт.

13

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str-lub

1шт.

14

405583R4

BOLSTER

front, diesel engine tractors

1шт.

.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 hex-hd cap

4шт.

14

405582R3

BOLSTER

front, gasoline engine tractors

1шт.

.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 hex-hd cap

4шт.

15

66695C91

EXTENSION

WITH TWO BUSHINGS 368621R1, front axle LH, will work for 405707R12, unit A

1шт.

15

66711C91

EXTENSION WITH TWO BUSHINGS 376099R1, front axle LH, will work for 534279R92, unit B

1шт.

15

66714C91

EXTENSION WITH TWO BUSHINGS 368621R1, front axle LH, will work for 534284R92, unit C

1шт.

16

66696C91

EXTENSION

WITH TWO BUSHINGS 368621R1, front axle RH, will work for 405708R12, unit A

1шт.

16

66712C91

EXTENSION WITH TWO BUSHINGS 376099R1, front axle RH, will work for 534280R92, unit B

1шт.

16

66715C91

EXTENSION WITH TWO BUSHINGS 368621R1, front axle RH, will work for 534285R92, unit C

1шт.

17

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4 drive type str-lub

2шт.

18

368621R1

BUSHING,36.2mm ID x 39.47mm OD x 38.35mm L

units A and C

4шт.

18

376099R1

BUSHING

unit B

4шт.

19

405838R11

STEERING KNUCKLE

KNUCKLE ASSY, steering, units A and C, serial no. 5020 and below

1шт.

19

536061R2

STEERING KNUCKLE

KNUCKLE ASSY, steering, units A and C, serial no. 5021 and above

1шт.

19

534288R92

KNUCKLE

ASSY, steering, unit B

2шт.

20

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

21

405834R1

ARM

steering knuckle RH, units A and C

1шт.

.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 hex-hd cap

1шт.

.

102637

NUT,1/2"-13, G5

1шт.

21

405837R1

ARM

steering knuckle RH, unit B

1шт.

.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

.

102637

NUT,1/2"-13, G5

1шт.

22

365317R91

THRUST BEARING,36.51mm ID x 2.48mm OD x 16.51mm W

steering knuckle thrust, units A and C

2шт.

22

405831R91

BEARING

steering knuckle thrust, unit B

2шт.

23

ROD ASSY, tie

2шт.

24

356540R91

END

W/PIN, nut and cover, RH, units A and C

1шт.

.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

.

390686R1

JAM NUT

11/16-18 hex. jam

1шт.

24

527658R91

BALL JOINT

END W/PIN, nut and cover, RH, unit B

1шт.

24

527658R91GV

TIE-ROD

Value, Tie Rod End

1шт.

.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

.

102648

SLOTTED NUT,9/16"-18, G5

1шт.

.

390686R1

JAM NUT

11/16-18 hex. jam

1шт.

25

65077C91

BALL JOINT

END W/PIN, nut and cover, LH, will work for 527653R91, unit A

1шт.

.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

25

527660R91

END

W/PIN, nut and cover, LH, optional w/end 65082C91, unit B

1шт.

.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

.

102648

SLOTTED NUT,9/16"-18, G5

1шт.

25

65082C91

END

W/PIN, nut and cover, LH, optional w/end 527660R91, unit B

1шт.

.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

.

102648

SLOTTED NUT,9/16"-18, G5

1шт.

25

65074C91

END

W/PIN, nut and cover, LH, will work for 534293R91, unit C

1шт.

.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

26

43747D

CLAMP

1шт.

.

537165R1

BOLT,Hex, 7/16" - 20 x 1-7/8", Gr 5

. 716-20 x 1-3/4 hex-hd cap

1шт.

.

425-117

NUT,7/16"-20, G5

7/16-20 hex.

1шт.

.

9421096

LOCK WASHER,7/16"

Ext tooth 7/16"

1шт.

27

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

1шт.

28

534809R1

BAFFLE, bolster air, gasoline engine tractors

1шт.

.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 hex-hd cap

2шт.

.

369936R1

WASHER

bolster air baffle

2шт.

28

534810R1

BAFFLE

bolster air, diesel engine tractors

1шт.

.

271567

BRACKET,Hex, 5/8" - 11 x 3 1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 hex-hd cap

2шт.

.

369936R1

WASHER

bolster air baffle

2шт.

29

534813R1

SPACER

bolster air baffle, diesel engine tractors

2шт.

30

358209R1

COVER

dust, units A and C

1шт.

30

358900R1

SEAL

COVER, dust, unit B

1шт.

31

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Taper, Straight 1/4"-28 NPT x .54" lg

1шт.

32

396627R1

STUD

engine mounting front crankcase

2шт.

.

425-1110

NUT,5/8"-18, G5

2шт.

33

273352

SCREW

FITTING, 1/8-27 PTF 90 deg angle lub

1шт.

34

527659R2

TUBE

units A and B

1шт.

34

534292R2

TUBE

unit C

1шт.

35

67976C1

PLATE, LOCKING

STRIP, straight center arm bolt lock, replaces washers 103323

1шт.

36

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle felt, Unit B

2шт.

For units A and C use p/n 368627R1

1шт.

37

405833R1

ARM

steering knuckle LH, units A and C

1шт.

.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 hex-hd cap

1шт.

.

102637

NUT,1/2"-13, G5

1шт.

37

405836R1

ARM

steering knuckle LH, unit B

1шт.

.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

.

102637

NUT,1/2"-13, G5

1шт.
