Запчасти Case IH 2400 (14-02) - SUSPENSION, FRONT AXLE, THREE POSITION STRAIGHT Suspension

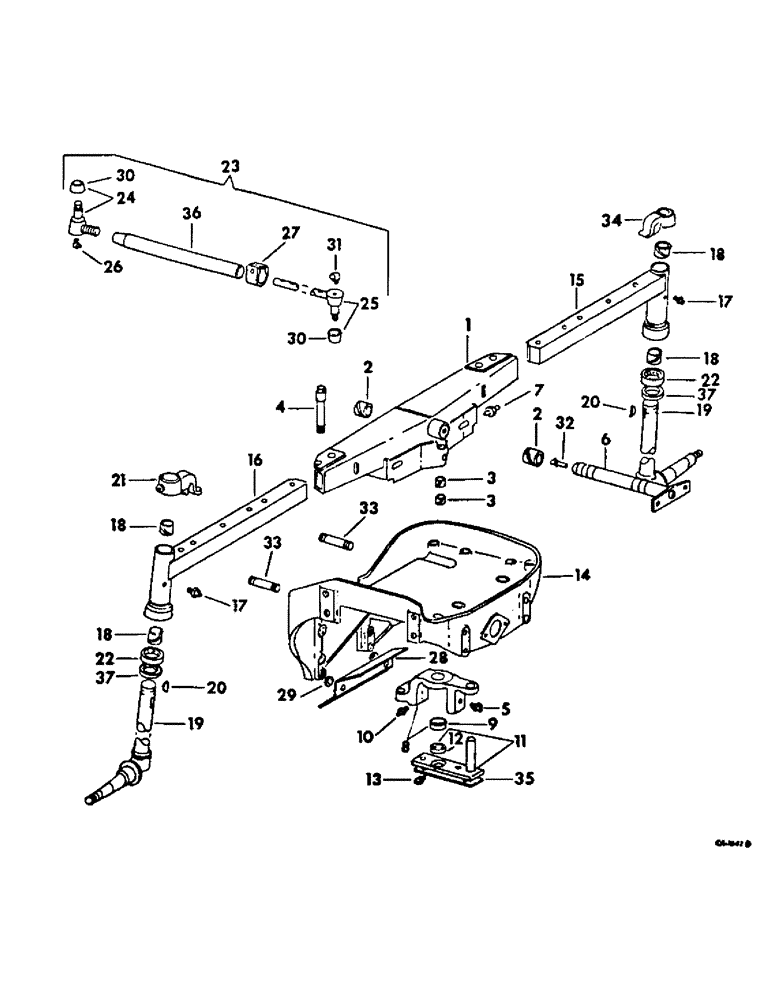

Схема запчастей Case IH 2400 - (14-02) - SUSPENSION, FRONT AXLE, THREE POSITION STRAIGHT Suspension
12
30
6
22
24
18
20
2
10
18
19
37
21
19
8
7
34
36
11
16
18
5
26
33
27
23
28
32
3
13
20
25
17
15
14
3
1
2
35
37
30
4
33
17
22
31
18
9
29

Артикул

Название

Примечание

Количество

.

SERVICE PARTS, three position front axle, 54, 62 or 74 in. tread, International 2400 series A tractors

1шт.

1

539161R92

CENTER AXLE

AXLE ASSY, front, will work for 527790R91, includes ref nos 2 and 3

1шт.

2

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

pivot

2шт.

3

405574R1

BUSHING

support

2шт.

4

14-1276

SCREW,Hex, 3/4 - 16 x 4 3/4", Gr 5

3/4-16 x 4-3/4 hex-hd cap, optional w/bolt 405584R2

4шт.

.

405576R1

NUT

front axle

4шт.

.

539569R1

BUSHING

SPACER

4шт.

4

405584R2

BOLT,Shldr, 3/4" - 16 x 4

Shoulder, Optional w/screw 271645

4шт.

.

405576R1

NUT

front axle

4шт.

5

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING, 1/4-65 deg angle drive type

1шт.

6

539128R1

SHAFT ASSY.

SHAFT ASSY, front axle pivot, on orders for pin 405577R1 and plate 405578R1 furnish shaft 539128R1 and fitting 273352

1шт.

.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

7

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str lub

1шт.

8

405585R11

ARM

ASSY, PS center, tractors w/serial no. 100005 and below

1шт.

8

67499C91

ARM ASSY.

ARM ASSY, PS center, tractors w/serial no. 100006 and above

1шт.

9

379748R1

BUSHING

1шт.

10

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg angle drive

1шт.

11

405580R11

BAR ASSY.

BAR ASSY, PS cyl

1шт.

.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

12

379748R1

BUSHING

1шт.

13

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str lub

1шт.

14

405583R4

BOLSTER

front, diesel engine tractors

1шт.

.

271564

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

SCREW, 5/8-11 x 2-1/2 hex-hd cap

4шт.

14

405582R3

BOLSTER

front, gasoline engine tractors

1шт.

.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 2-1/2 hex-hd cap

4шт.

15

66716C92

EXTENSION WITH TWO BUSHINGS 376099R1, front axle LH, will work for 534296R93

1шт.

16

66717C92

EXTENSION WITH TWO BUSHINGS 376099R1, front axle RH, will work for 534297R93

1шт.

17

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4 drive type str lub

2шт.

18

376099R1

BUSHING

4шт.

19

534288R91

STEERING KNUCKLE

KNUCKLE ASSY, steering, tractors w/serial no. 100005 and below

2шт.

19

67522C91

KNUCKLE JOINT

KNUCKLE ASSY, steering, tractors w/serial no. 100006 and above

2шт.

20

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

21

538691R1

ARM

steering knuckle RH, replaces 527802R1, tractors w/serial no. 100005 and below

1шт.

.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

.

102637

NUT,1/2"-13, G5

1шт.

21

67525C1

ARM

steering knuckle RH, tractors w/serial no. 100006 and above

1шт.

.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

.

102637

NUT,1/2"-13, G5

1шт.

22

405831R91

BEARING

steering knuckle thrust

2шт.

23

ROD ASSY, tie

2шт.

24

527658R91

BALL JOINT

END ASSY, RH

1шт.

24

527658R91GV

TIE-ROD

Value, Tie Rod End

1шт.

.

102648

SLOTTED NUT,9/16"-18, G5

1шт.

.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

.

390686R1

JAM NUT

11/16-18 hex. jam

1шт.

25

65079C91

END

ASSY, LH, will work for 529497R91

1шт.

.

102648

SLOTTED NUT,9/16"-18, G5

1шт.

.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

26

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

1шт.

27

43747D

CLAMP

1шт.

.

537165R1

BOLT,Hex, 7/16" - 20 x 1-7/8", Gr 5

7/16-20 x 1-7/8 hex-hd cap

1шт.

.

9421096

LOCK WASHER,7/16"

Ext tooth 7/16"

1шт.

.

271505

BODY

7/16-20 hex.

1шт.

28

534809R1

BAFFLE, bolster air, gasoline engine tractors

1шт.

.

369936R1

WASHER

bolster air baffle

2шт.

.

271565

SHIELD,Hex, 5/8" - 11 x 2 3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 hex-hd cap

2шт.

28

534810R1

BAFFLE

bolster air, diesel engine tractors

1шт.

.

369936R1

WASHER

bolster air baffle

2шт.

.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 hex-hd cap

2шт.

29

534813R1

SPACER

bolster air baffle, diesel engine tractors

2шт.

30

358900R1

SEAL

COVER, dust

2шт.

31

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Taper, Straight 1/4"-28 NPT x .54" lg

1шт.

32

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8-27 PTF 90 deg angle lub

1шт.

33

396627R1

STUD

engine mounting front crankcase

2шт.

.

425-1110

NUT,5/8"-18, G5

2шт.

34

538690R1

ARM

steering knuckle LH, replaces 527801R1, tractors w/serial no. 100005 and below

1шт.

.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

.

102637

NUT,1/2"-13, G5

1шт.

34

67524C1

ARM

steering knuckle LH, tractors w/serial no. 100006 and above

1шт.

.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

.

102637

NUT,1/2"-13, G5

1шт.

35

67976C1

PLATE, LOCKING

STRIP, straight center arm bolt lock, replaces washers 103323

1шт.

36

527659R1

TUBE

tractors w/serial no. 100005 and below

1шт.

36

67529C1

TUBE,0.766" ID, 1.005" OD, 16.21" Length

tractors w/serial no. 100006 and above

1шт.

37

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle felt

2шт.

Выбрано товаров: 75
