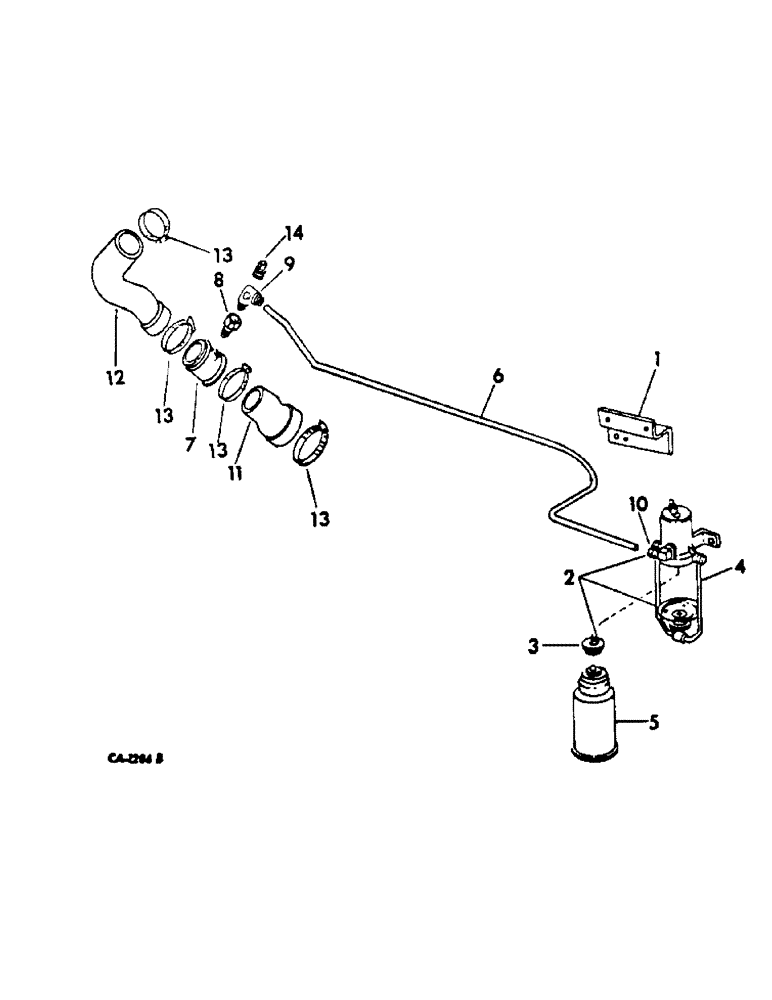

Запчасти Case IH 2400 (12-17) - POWER, ETHER STARTING, DIESEL ENGINE TRACTORS Power

1

535672R2

BRACKET

injector, replaces 536586R2

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

2

533231R91

NO LONGER SERVICED

SOLENOID ASSY, ether injection, also includes ref nos 3 and 4

1шт.

397384R1

SCRAPER RING

SPACER, solenoid

2шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

SCREW, 5/16-18 x 1-1/2 znd hex-hd cap

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

395686R1

GASKET

ether starting injector

1шт.

4

404247R1

BAIL

ASSY, injector

1шт.

5

385064R91

FLUID

ether starting 12 oz. can

1шт.

6

529917R1

TUBE

starting fluid

1шт.

7

529919R1

AIR INTAKE TUBE

TUBE ASSY, air cleaner

1шт.

8

269635R91

NOZZLE CAP

NOZZLE, starting fluid

1шт.

9

140304

ELBOW

1/8-27 90 deg ball sleeve tube

1шт.

10

140304

ELBOW

1/8-27 90 deg ball sleeve tube

1шт.

11

529921R1

INTAKE AIR HOSE,63.50 mm ID, 71.10 mm ID x 106.70 mm

HOSE, manifold inlet

1шт.

12

529922R1

INTAKE AIR HOSE,63.50 mm ID

Air Cleaner Outlet 63.50 mm ID

1шт.

13

379256R1

CLAMP, hose

4шт.

14

9617020

PLUG,1/4" - 18 x 0.48"

1/4-18 auto Hex Socket

1шт.
