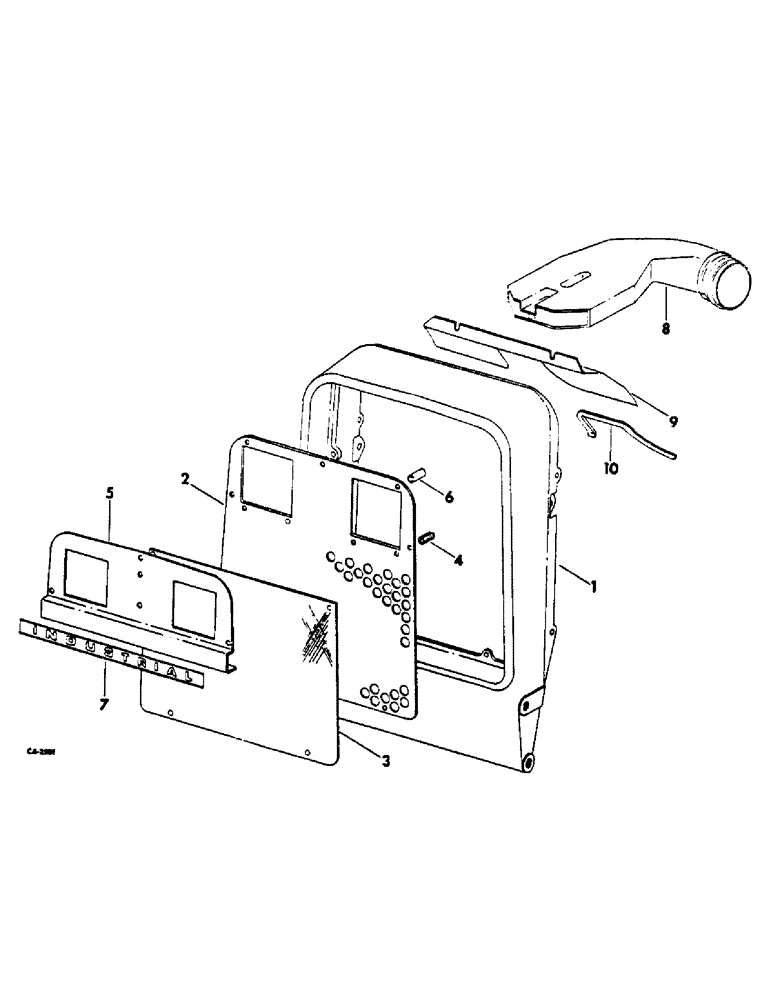

Запчасти Case IH 2400 (06-08) - COOLING, HEAVY DUTY CAST GRILLE, INTL 2400 SERIES A TRACTORS WITH LOADER OR HEAVY DUTY, FRONT AXLE Cooling

1

537352R1

HOUSING, heavy duty grille

1шт.

2

537353R1

GRILLE

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd cap

4шт.

3

537355R1

SCREEN, grille

1шт.

153326

SCREW,Cross Fil Hd, #10 - 24 x 1 1/2"

10-24 x 1-1/2 cr-rec-fil-hd mach

6шт.

4

537357R1

SPRING

6шт.

5

537358R1

COVER, head light

1шт.

6

391377R1

SPACER, optional w/301645R1

3шт.

6

301645R1

SPACER

optional w/391377R1

3шт.

159952

SCREW,Cross Pan Hd, #10-24 x 7/8"

10-24 x 7/8 cr-rec-pan-hd mach

3шт.

7

537359R1

PRODUCT GRAPHIC

industrial name plate

1шт.

8

537360R1

DUCT

air inlet

1шт.

9

537361R1

BAFFLE, air

1шт.

21744R1

HEX SOC SCREW,5/16"-18 x 1/2"

5/16-18 x 1/2 znd hex-soc-hd cap

2шт.

95-11034

WASHER,1/4"

11/32 plain flat

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

530854R1

MOLDING

MOULDING, edge

1шт.

2751846R1

EMBLEM CASE/IH

PRODUCT GRAPHIC, IH emblem, optional w/2751844R1

1шт.

2751844R1

PRODUCT GRAPHIC

IH emblem, optional w/2751846R1

1шт.

24388R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 3/8"

2шт.

19298R1

LOCK WASHER

WASHER, no. 10 cap reg lock

2шт.
