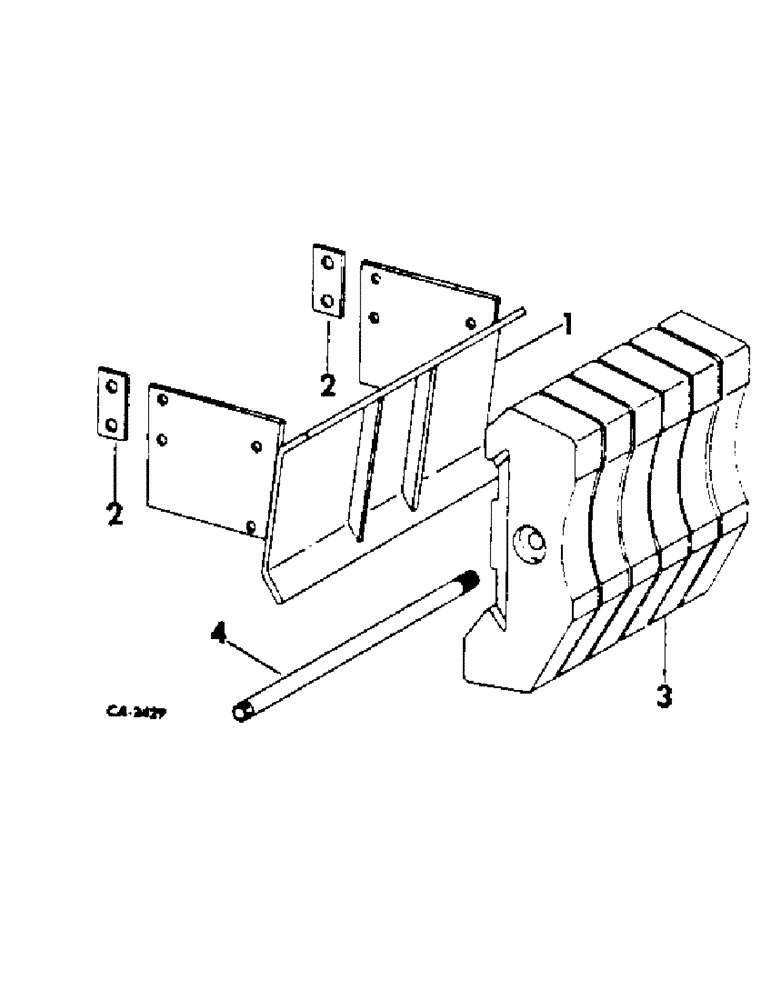

Запчасти Case IH 2400 (09-05[1]) - FRAME, FRONT END WEIGHTS, 2400 SERIES A TRACTORS WITH BACKHOE AND/OR LOADER (12) - FRAME

1

538337R1

WEIGHT ASSY, front end mounting

1шт.

271609

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

SCREW, 3/4-10 x 1-3/4 hex-hd cap, 4 used on all tractors except tractors equipped with heavy duty cast grille, 8 used on tractors equipped with heavy duty cast grille

1шт.

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

SCREW, 3/4-10 x 1-1/4 hex-hd cap, tractors with cast I beam front axle

2шт.

220081

NUT

3/4-10 hex., tractors with cast I beam front axle

2шт.

2

538342R1

PLATE, spacer, not used on tractors with cast I beam front axle

2шт.

3

381216R4

WEIGHT

front end, approx 72 lbs

6шт.

4

381217R1

SHAFT, front end weight cross tie

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

427691

NUT

7/8-9 znd reg sq

1шт.

577989R1

SPACER, pipe

1шт.
