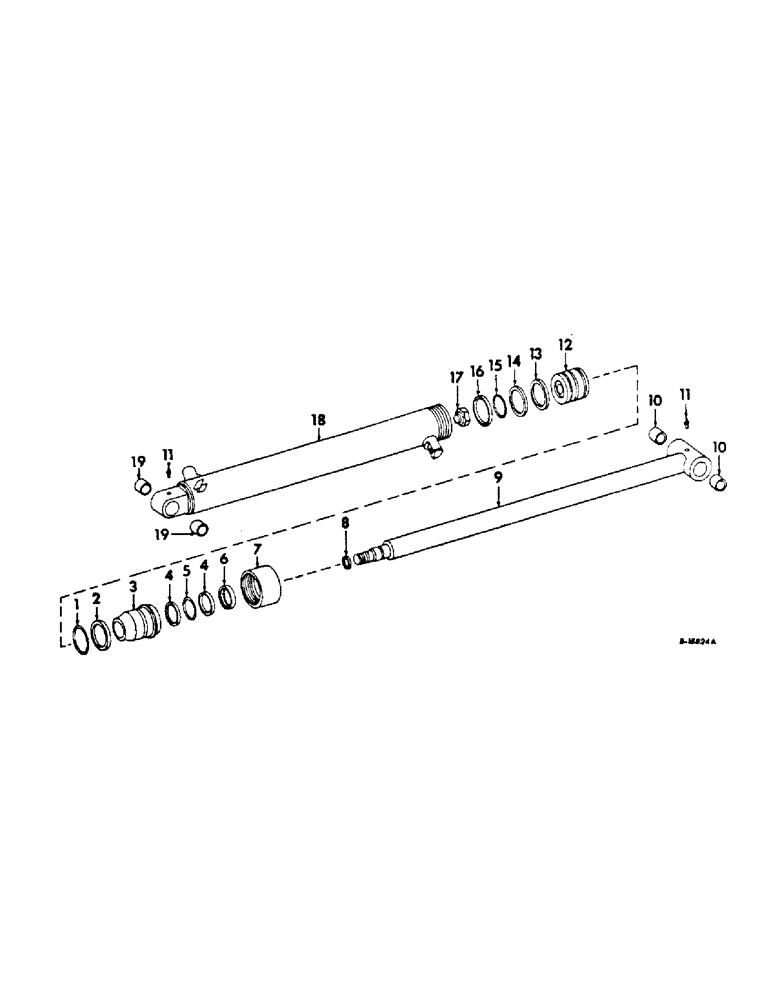

Запчасти Case IH 2400 (10-61) - HYDRAULICS, BACKHOE BUCKET DIPPERSTICK, LIFT AND STABILIZER (07) - HYDRAULICS

545226R91

CYLINDER ASSY, 3.0 x 18.18 hydraulic LH stabilizer, consists of all unmarked parts and those marked unit A

1шт.

545225R91

CYLINDER ASSY, 3.0 x 18.18 hydraulic RH stabilizer, consists of all unmarked parts and those marked unit B

1шт.

545223R92

CYLINDER ASSY, 3.5 x 33.7 hydraulic dipperstick, consists of all unmarked parts and those marked unit C

1шт.

545224R91

CYLINDER

ASSY, 3.0 x 27 hydraulic bucket, consists of all unmarked parts and those marked unit D

1шт.

385616R93

CYLINDER ASSY, 4 x 33.75 hudraulic dipperstick and lift, consists of all unmarked parts and those marked unit E

1шт.

548359R91

CYLINDER ASSY, 3.5 x 33.7 hydraulic lift, consists of all unmarked parts and those marked unit F

1шт.

1

3044436R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

2-5/8 x 3 x 3/16, units A, B and D

1шт.

1

352216R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 5, 75 Duro

3-1/8 x 3-1/2 x 3/16, unit C and F

1шт.

1

347801R1

O-RING,0.21" Thk x 3.6" ID, -342, Cl 6, 90 Duro

3-5/8 x 4 x 3/16, unit E

1шт.

2

387370R1

BACK-UP RING

WASHER, front head o-ring backup, units A, B and D

1шт.

2

381088R1

BACK-UP RING

front head o-ring backup, unit C and F

1шт.

2

381107R1

BACK-UP RING

WASHER, front head backup, unit E

1шт.

3

387394R1

HEAD

cyl front, units A, B and D

1шт.

3

389771R1

NO LONGER SERVICED

HEAD, cyl front, unit C

1шт.

3

381106R1

HEAD

front, unit E

1шт.

3

381080R1

HEAD

cyl front, unit F

1шт.

4

387399R2

RING

quad ring backup, unit A, B, C and D

2шт.

4

381083R2

BACK-UP RING

WASHER, piston rod backup, unit E and F

2шт.

5

400745R1

SEALING RING

RING, piston rod quad, units A, B, C and D

1шт.

5

398978R1

RING

QUAD RING, piston rod, unit E and F

1шт.

6

403844R1

WIPER SEAL,50.7mm ID x 63.65mm OD x 7.92mm Thk

WIPER, piston rod, UNIT A, B, C and D

1шт.

6

619072C91

WIPER SEAL

WIPER, piston rod, unit E and F

1шт.

7

387375R1

RETAINER

RING, front head retainer, units A, B and D

1шт.

7

381089R1

RING

front head retainer, unit C and F

1шт.

7

381111R1

RING

front head retainer, unit E

1шт.

8

293739R1

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1-3/8 x 1-5/8 x 1/8, unit E

1шт.

9

545817R11

ROD W/BUSHINGS, piston, units A and B, includes ref no.10

1шт.

9

545821R11

PISTON

ROD W/BUSHINGS, piston, unit C, includes ref no. 10

1шт.

9

545811R11

ROD

W/BUSHINGS, piston, unit D, includes ref no. 10

1шт.

9

384254R21

ROD

W/BUSHINGS, piston, unit E, includes ref no. 10

1шт.

9

584360R11

ROD W/BUSHINGS, piston, unit F, includes ref no. 10

1шт.

10

468280R1

BUSHING

units A, B and D

2шт.

10

468366R1

BUSHING

units C, E and F

2шт.

11

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF, Unit E 1/8"-27 x .66 lg

1шт.

11

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 45 deg angle lub, unit E

1шт.

12

545812R1

PISTON

hyd cyl, units A, B and D

1шт.

12

545823R1

PISTON

hyd cyl, unit C and F

1шт.

12

384255R2

PISTON, hyd cyl, used with unit E cylinder 385616R92

1шт.

12

533373R1

PISTON

hyd cyl, used with unit E cylinder 385616R93

1шт.

13

383005R1

RING

piston bearing, unit C and F

1шт.

13

387374R1

RING,70mm ID x 76.2mm OD x 6.43mm Thk

piston bearing, units A, B and D

1шт.

13

383006R1

RING

piston bearing, unit E

1шт.

14

545813R2

RING

SEAL, piston outer, units A, B and D

1шт.

14

545189R2

RING

SEAL, piston outer, unit C and F

1шт.

14

381110R1

RING

SEAL, piston outer, used with unit E cylinder 385616R92

1шт.

14

533374R1

SEAL

piston outer, used with unit E cylinder 385616R93

1шт.

15

25205R1

O-RING,Rect, 2.5" ID x 2.875" OD, Cl 5

SEAL, piston inner, units A, B and D

1шт.

15

545190R1

SEALING RING,2.975" ID x 3.395" OD x 0.21"

SEAL, piston inner, unit C and F

1шт.

15

381109R1

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

SEAL, piston inner, used with unit E cylinder 385616R92

1шт.

15

533375R1

O-RING,3.475" ID x 3.985" OD x 0.21"

SEAL, piston inner, used with unit E cylinder 385616R93

1шт.

16

387374R1

RING,70mm ID x 76.2mm OD x 6.43mm Thk

piston bearing, units A, B and D

2шт.

16

383005R1

RING

piston bearing rear, unit C and F

1шт.

16

383006R1

RING

piston bearing, unit E

1шт.

17

25126R1

LOCK NUT,1 1/8"-12, GC

NUT, 1-1/8-12 znd hex. lock, units A, B, C, D and F

1шт.

17

25049R1

NUT

1-1/2-12 PHC hex lock, unit E

1шт.

18

545815R91

BODY W/BUSHINGS, hyd cyl, unit A, includes ref no. 19

1шт.

18

545814R91

BODY W/BUSHINGS, hyd cyl, unit B, includes ref no. 19

1шт.

18

545818R91

BODY, W/BUSHINGS, hyd cyl, unit C and F, includes ref no. 19

1шт.

18

545809R91

BODY W/BUSHINGS, hyd cyl, unit D, includes ref no. 19

1шт.

18

385617R92

BODY W/BUSHINGS, hyd cyl, unit E, includes ref no. 19

1шт.

19

468280R1

BUSHING

units A, B and D

2шт.

19

468366R1

BUSHING

units C, E and F

2шт.

545830R92

CYLINDER

PACKAGE, hyd cyl service, unit A, B and D, consists of (1) o-ring 3044436, (1) o-ring 25205R1, (1) quad-ring 400475R1, (1) ring 387374R1, (1) seal 545813R2, (2) washer 387399R2, (1) washer 387370R1, (1) wiper 403844R1

1шт.

545829R92

SEAL KIT

PACKAGE, hyd cyl service, unit C, consists of (1) o-ring 352216R1, (1) quad-ring 400475R1, (1) o-ring 381088R1, (1) o-ring 545190R1, (2) ring 383005R1, (1) seal 545189R2, (2) washer 387399R1, (1) wiper 403844R1

1шт.

471266R96

KIT

1шт.

PACKAGE, hyd cyl service, unit E, consists of (1) o-ring 252483R1, (1) o-ring 347801R1, (1) quad-ring 398978R1, (1) o-ring 381109R1, (1) o-ring 293739R1, (1) ring 383006R91, (1) seal 381110R1, (2) washer 381083R2, (1) washer 381107R1, (1) seal 533374R2, (1) ring 533375R1, (1) wiper 619072C91

1шт.

545299R92

SEAL KIT

PACKAGE, hyd cyl service, unit F, consists of (1) o-ring 352216R1, (1) quad ring 398978R1, (2) ring 383005R1, (1) ring 545190R1, (1) seal 545189R2, (1) washer 381088R1, (2) washer 381018R2, (1) wiper 619072C91

1шт.
