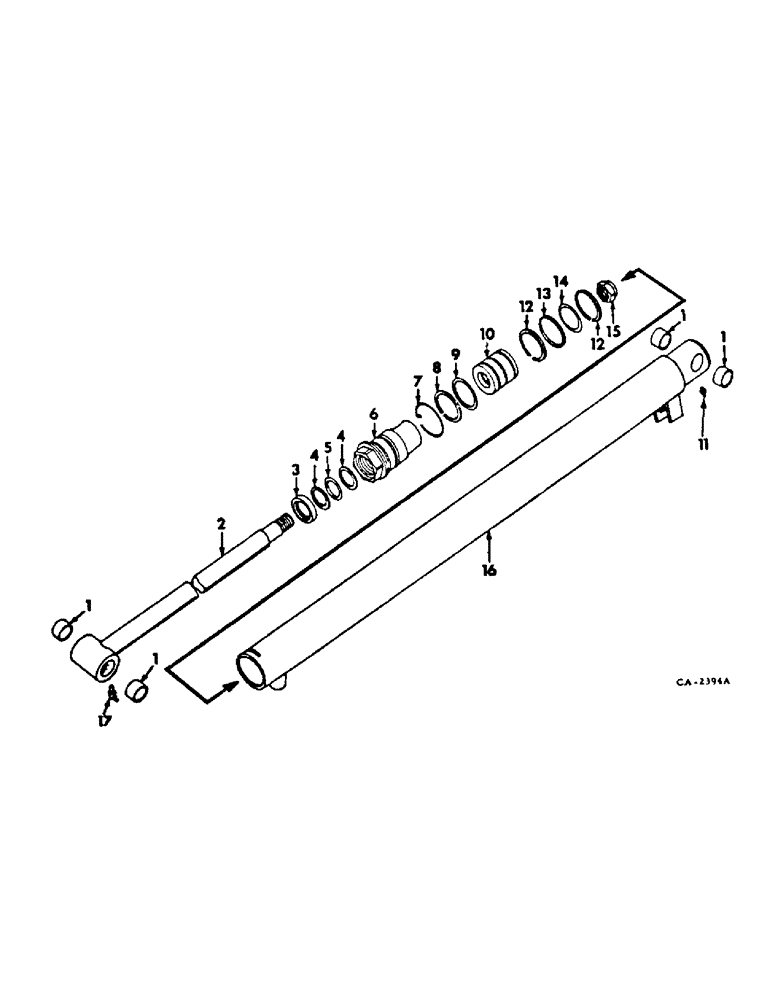

Запчасти Case IH 2400 (10-60) - HYDRAULICS, LOADER CYLINDER (07) - HYDRAULICS

544718R91

CYLINDER ASSY, 2-1/2 x 28.70 loader boom, consists of all unmarked parts and those marked unit A

1шт.

544719R92

CYLINDER

ASSY, 2-1/2 x 23.50 loader bucket, consists of all unmarked parts and those marked unit B

1шт.

1

378478R1

BUSHING,28.85mm ID x 34.98mm OD x 18.92mm L

press fit

4шт.

2

546015R11

ROD W/BUSHINGS, piston, unit A

1шт.

2

546018R11

ROD W/BUSHINGS, piston, unit B

1шт.

3

403460R1

WIPER SEAL,38mm ID x 50.9mm OD x 7.94mm Thk

WIPER, rod

1шт.

4

403622R1

BACK-UP RING

WASHER, backup rod

2шт.

5

400744R1

RING

piston rod quad

1шт.

6

378536R2

GUIDE

HEAD, front

1шт.

7

385133R1

RETAINING WIRE

RING, front head retaining

1шт.

8

378733R1

BACK-UP RING

WASHER, backup

1шт.

9

350657R1

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

2-1/8 x 2-1/2 x 3/16

1шт.

10

384129R2

PISTON

1шт.

11

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 str drive type lubrication, not part of cylinder assy

2шт.

12

379960R1

SEALING RING

BEARING, piston

2шт.

13

379959R1

RING,Square, 3.17mm Thk x 58mm ID

SEAL, piston

1шт.

14

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2-1/16 x 2-1/4 x 3/32

1шт.

15

9416471

NUT

1-14 CDP hex. lock, piston rod

1шт.

16

546011R91

BODY W/BUSHINGS, hyd cyl, unit A

1шт.

16

546016R92

BODY

W/BUSHINGS, hyd cyl, unit B

1шт.

17

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING, 1/4 drive type 65 deg angle lubrication, not part of cylinder assy

1шт.

63578C91

SEAL PACKAGE

PACKAGE, hydraulic cylinder service, consists of (2) bearing 379960R1, (1) o-ring 21255R1, (1) o-ring 253070R1, (1) seal 119203C1, (1) o-ring 379961R1, (1) ring 385133R1, (1) seal 379959R1, (1) washer 378733R1, (1) wiper 403460R1

1шт.
