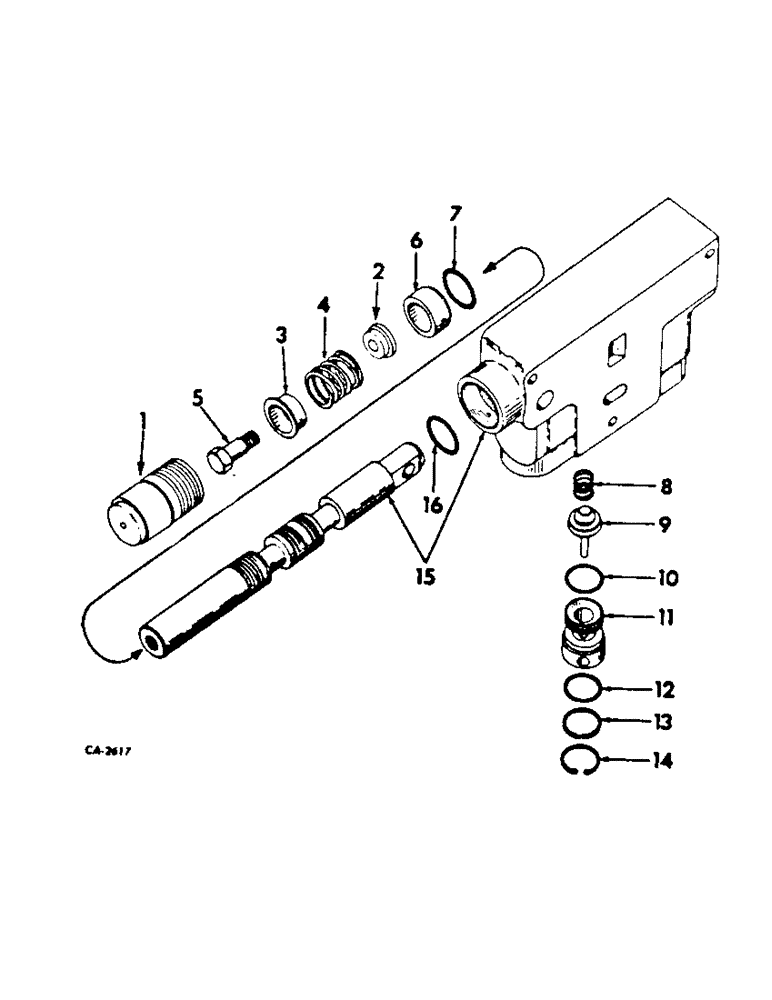

Запчасти Case IH 2400 (10-57) - HYDRAULICS, HYDRAULIC CONTROL VALVE, THREE POSITION SPRING CENTERED (07) - HYDRAULICS

57290C92

VALVE

ASSY, hydraulic center control

1шт.

383270R94

VALVE ASSY, hydraulic control

1шт.

383271R96

VALVE ASSY, hydraulic control

1шт.

394705R96

VALVE ASSY, hydraulic control

1шт.

1

395782R2

CAP

centering spring

1шт.

2

406825R1

CAPSCREW

RETAINER, centering spring

1шт.

3

376423R1

CUP

RETAINER, centering spring

1шт.

4

384381R1

SPRING

centering

1шт.

5

395950R1

SCREW,Hex, 7/16" - 14 x 1.24"

centering spring

1шт.

6

395781R3

DETENT

RETAINER, valve spool o-ring

1шт.

7

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32, S treated, control valve spool lower

1шт.

8

395278R1

SPRING

check poppet

1шт.

9

395277R1

VALVE

back flow check poppet

1шт.

10

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

7/8 x 1-1/16 x 3/32 retainer inner

1шт.

11

383280R1

VALVE

RETAINER, check ball

1шт.

12

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, ball retainer outer

1шт.

13

376433R1

BACK-UP RING,0.957" ID x 0.87" Width

WASHER, valve body plug o-ring back-up

1шт.

14

537603R1

RING

check ball retainer snap

1шт.

15

BODY ASSY, control valve, not serviced separately, order valve assy

1шт.

16

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

7/8 x 1-1/8 x 1/8, S treated valve spool upper

1шт.

383548R92

SET OF PARTS

1шт.

PACKAGE, open center control valve, consists of (1) o-ring 253070R1, (1) o-ring 383219R1, (1) o-ring 359158R1, (1) o-ring 380830R1, (1) o-ring 364879R1, (1) poppet assy 395277R1, (1) retainer 383280R1, (1) ring, snap 537603R1, (1) spring 395278R1, (1) washer 376433R1

1шт.

548787R91

KIT

PACKAGE, control valve lower seal, consists of (1) o-ring 364879R1, (1) retainer 395781R3, (1) cap 395782R2

1шт.
