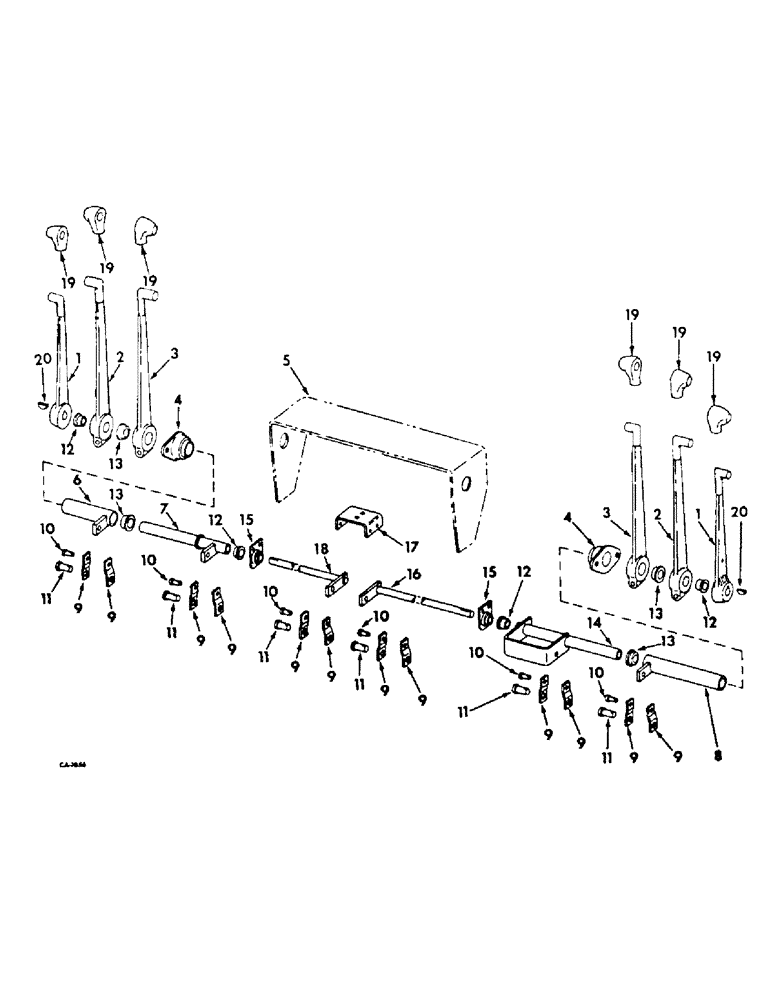

Запчасти Case IH 2400 (10-53) - HYDRAULICS, BACKHOE HYDRAULIC CONTROLS (07) - HYDRAULICS

1

544959R1

HANDLE, stabilizer control

2шт.

431662

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z hex-soc-hd cup, pt set

2шт.

2

544958R1

HANDLE, crowd and swing control

2шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

SCREW, 3/8-16 x 2-1/4 znd hex-hd cap

2шт.

120374

NUT

3/8-16 sq

2шт.

3

544957R1

HANDLE, bucket & lift control

2шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

SCREW, 3/8-16 x 2-1/4 znd hex-hd cap

2шт.

120374

NUT

3/8-16 znd sq.

2шт.

4

608879R91

BUSHING

BEARING ASSY

2шт.

5

SUPPORT, seat, refer to console, seat support and floor plates listing

1шт.

6

481670R91

SHAFT ASSY, lift control

1шт.

7

481675R91

SHAFT ASSY, crowd control

1шт.

8

481667R91

SHAFT ASSY, bucket control

1шт.

9

481684R1

LINK, control valve

12шт.

10

B921/2

PIN, 3/8 x 7/8 std hd

6шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

6шт.

11

Q1332

PIN

1/2 x 1-1/8 std hd

6шт.

108632

PIN

3/16 x 7/8 cot.

6шт.

12

307920R1

BUSHING

BEARING

4шт.

13

477554R1

NO LONGER SERVICED

BEARING, center control

4шт.

14

481672R92

SHAFT ASSY, swing control

1шт.

15

481683R91

BEARING, self-aligning

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

16

481680R91

SHAFT ASSY, RH stabilizer control

1шт.

17

481664R1

BRACKET, brg support

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8-16 x 1 znd sq-nk crg

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

18

481679R91

SHAFT ASSY, LH stabilizer control

1шт.

19

379022R2

KNOB

hyd valve lever

6шт.

20

106751

KEY

3/16 x 3/4 Woodruff

2шт.
