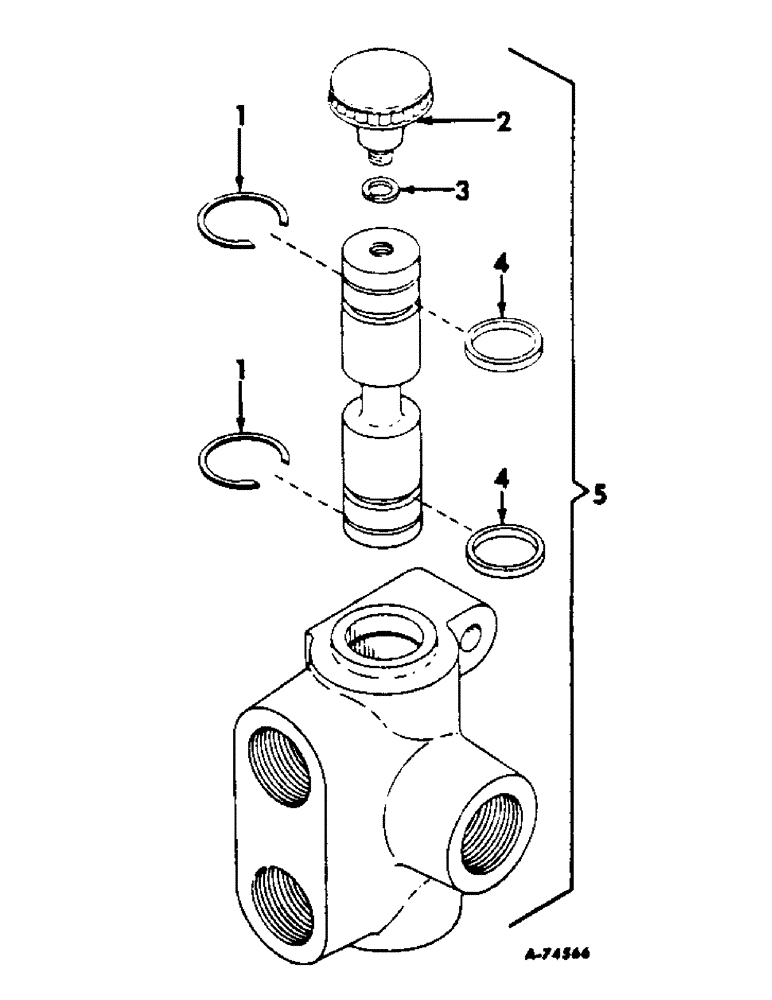

Запчасти Case IH 2400 (10-50) - HYDRAULICS, DIVERTER VALVE (07) - HYDRAULICS

1

661652R1

SNAP RING,#75, Ext

Selector valve #75, Ext

2шт.

1

23090R1

SNAP RING,#75, Ext

Ring, Snap, , selector valve #75, Ext

2шт.

2

384283R1

KNOB

control

1шт.

2

389255R1

KNOB

control

1шт.

3

120381

WASHER

3/8 znd light lock

1шт.

3

131099

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32

2шт.

4

403519R1

O-RING,13.94mm ID x 2.62mm Width

9/16 x 3/4 x 3/32

1шт.

5

383946R91

SPARE PART

VALVE ASSY, diverter

1шт.

5

389251R92

SPARE PART

VALVE ASSY, diverter

1шт.
