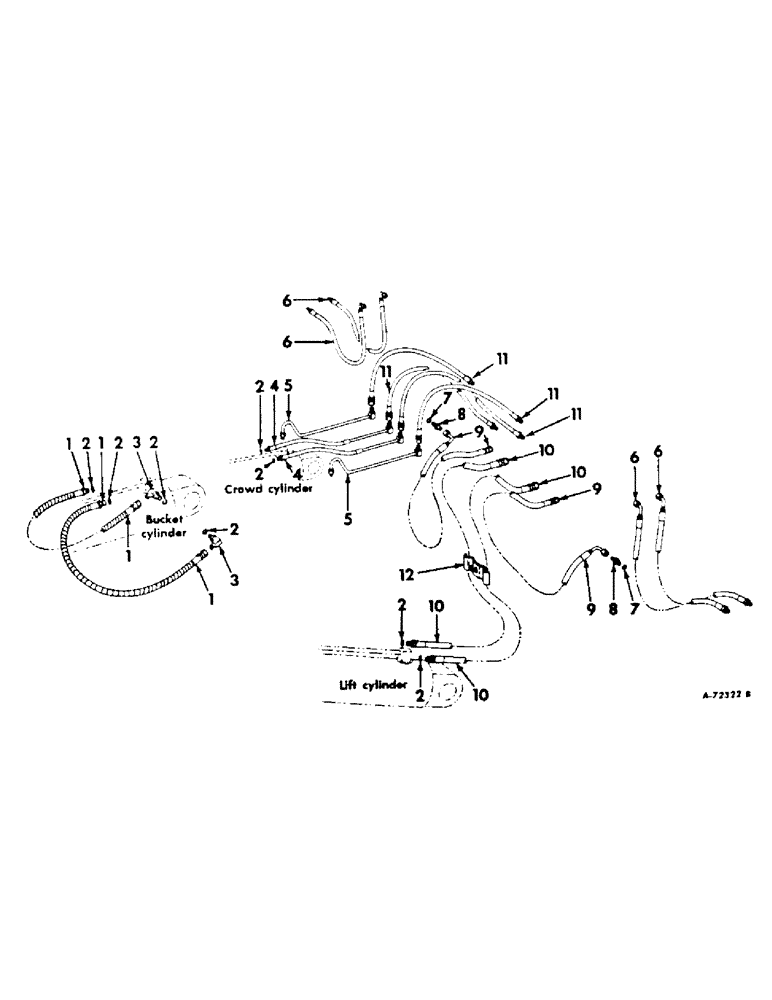

Запчасти Case IH 2400 (10-48) - HYDRAULICS, BACKHOE TUBING AND HOSES (07) - HYDRAULICS

1

545972R1

HOSE ASSY, boom to bucket, 38 in.

2шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 tube

8шт.

3

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared tube

2шт.

4

481697R91

HOSE, hole to dipperstick cyl

2шт.

5

481699R11

TUBE ASSY, Serial Range: boom-hose

2шт.

6

470256R91

HOSE

ASSY, Serial Range: bulkhead-stabilizer

4шт.

7

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 tube

2шт.

8

382449R1

CONNECTOR, ELEC

UNION, 3/4-16 to 9/16-18 hyd flared short swivel reducer

2шт.

9

545353R1

HOSE, bulkhead to swing 32 in.

2шт.

10

481698R93

HOSE ASSY, pipe to lift cyl 51 in.

2шт.

11

481641R91

HOSE ASSY.

HOSE, pipe to boom, 41.5 in.

4шт.

12

469998R1

CLAMP

hyd hose

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex. jam

1шт.
