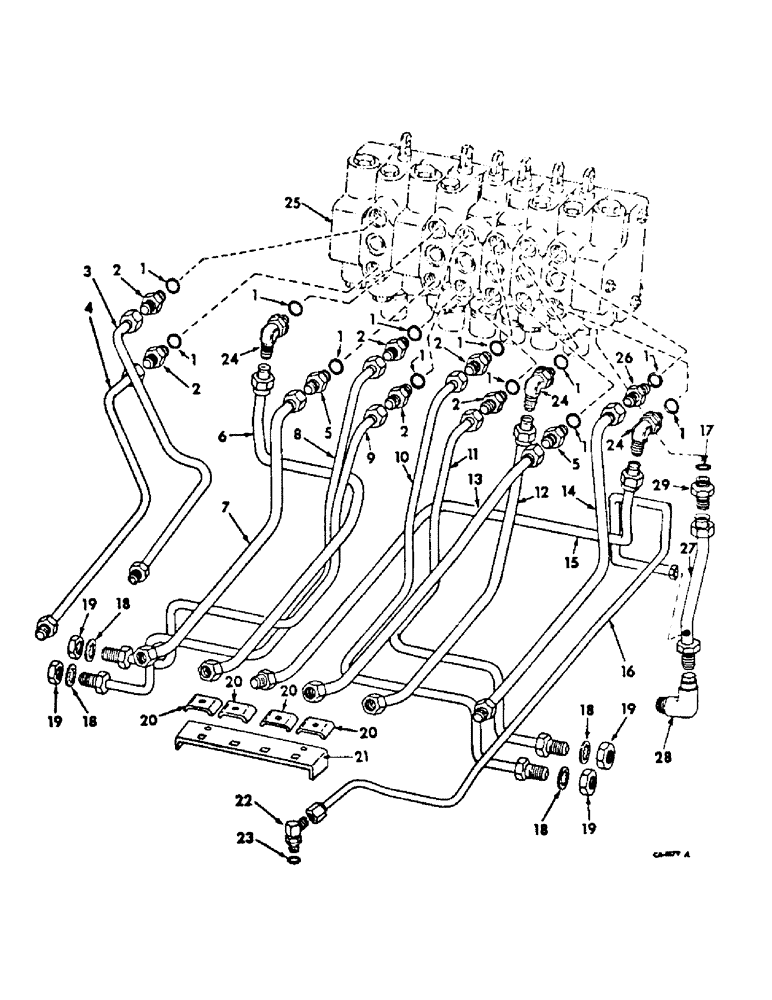

Запчасти Case IH 2400 (10-46) - HYDRAULICS, BACKHOE HYDRAULIC TUBING AND CONNECTIONS (07) - HYDRAULICS

1

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 tube

12шт.

2

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 to 3/4-16 C-Z hyd flared short swivel reducer

6шт.

3

481647R21

TUBE, top port swing cyl

1шт.

4

481648R21

TUBE, bottom port swing cyl

1шт.

5

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 37 deg C-Z hyd flared

2шт.

6

486020R2

TUBE, top port bucket cyl

1шт.

7

481642R21

TUBE, bottom port bucket cyl

1шт.

8

481649R21

TUBE, top port RH stabilizer

1шт.

9

481651R21

TUBE, bottom port RH stabilizer

1шт.

10

481652R21

TUBE, top port LH stabilizer

1шт.

11

481655R21

TUBE, bottom port LH stabilizer

1шт.

12

486021R2

TUBE

top port dipperstick cyl

1шт.

13

481646R21

TUBE, bottom port dipperstick cyl

1шт.

14

481643R21

TUBE, top port boom cyl

1шт.

15

486019R2

TUBE, bottom port boom cyl

1шт.

16

546236R1

TUBE ASSY, swing mechanism drain

1шт.

17

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 OD tube

1шт.

18

138561

LOCK WASHER,Int Tooth, 3/4"

WASHER, 3/4 C-Z int-tooth lock

4шт.

19

9403294

NUT

3/4-16 C-Z bulkhead union lock

4шт.

20

486004R1

CLAMP

tube

4шт.

1800128

SCREW, 3/8-16 x 1-3/4 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

21

60357C1

STRAP ASSY, hyd line clamp

1шт.

22

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg C-Z hyd flared tube adjustable str-thd 90 deg

1шт.

23

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 tube

1шт.

24

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg C-Z hyd flared tube adjustable str-thd 90 deg

3шт.

25

VALVE BANK, refer to hydraulic control valves listing

1шт.

26

UNION ASSY, orifice, refer to hydraulic control valve bank listing

1шт.

27

547342R1

TUBE ASSY, backhoe return

1шт.

28

9410285

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

37 deg hyd flared tube

1шт.

29

9410207

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

UNION, 1-5/16-12 37 deg flared tube short swivel

1шт.
