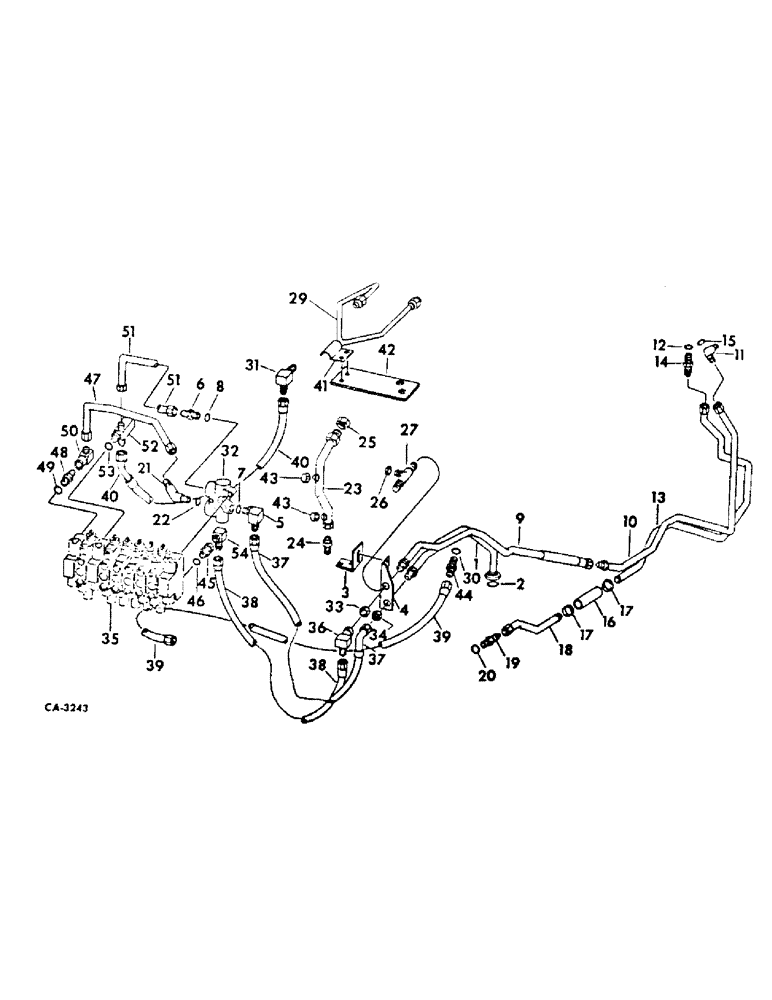

Запчасти Case IH 2400 (10-44) - HYDRAULICS, HYDRAULIC POWER SUPPLY, 2400 SERIES A TRACTORS WITH FLAT REAR FRAME COVERS AND BACKHOE (07) - HYDRAULICS

1

547347R1

TUBE ASSY, Serial Range: pump-backhoe

1шт.

2

343906R1

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1-5/16 x 1-9/16 x 1/8

1шт.

3

547348R1

BRACKET, bulkhead support

1шт.

4

547349R1

BULKHEAD, pump-power beyond

1шт.

181566

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

SCREW, 1/4-28 x 3/4 znd hex-hd cap

2шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x 18 ga C-Z

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-28 znd hex.

2шт.

5

545773R1

ELBOW

37 deg flared tube adj str-thd 90 deg

1шт.

6

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 37 deg hyd flared tube short swivel

2шт.

7

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

1шт.

8

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

2шт.

9

547351R1

TUBE ASSY, backhoe to loader power

1шт.

10

547352R2

TUBE ASSY, loader power beyond

1шт.

11

9411108

ELBOW,45 Degree, 1 3/16"-12 x 1 3/16"-12, 37 Degree

1-3/16-12 37 deg hyd flared tube adj str-thd 45 deg

1шт.

12

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube

1шт.

13

544493R1

TUBE ASSY, return

1шт.

14

9410207

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

UNION, 1-5/16-12 37 deg hyd flared tube short swivel

1шт.

15

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 OD tube

1шт.

16

544494R1

HOSE, return line

1шт.

17

279024R91

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP, hose

2шт.

18

544495R1

TUBE ASSY, return

1шт.

19

574018R1

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

UNION, 3/4-1 37 deg hyd flared tube short swivel

1шт.

20

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

1шт.

21

9411106

ELBOW

7/8-14 37 deg hyd flared tube adj str-thd 45 deg

1шт.

22

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

23

59048C1

TUBE ASSY, hyd filler

1шт.

24

565014R1

CONNECTOR, 1-5/16 to 3/4 37 deg hyd flared tube reducer

1шт.

25

9403376

CAP,37 Degree, 1 5/16"-12

1-5/16-12 37 deg hyd flared tube

1шт.

26

(Not used in application)

1шт.

27

(Not used in application)

1шт.

28

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

29

59047C1

TUBE ASSY, M.C.V.

1шт.

30

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 in. OD tube

1шт.

31

9402944

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

7/8-14 37 deg flared tube 90 deg union

1шт.

32

545229R91

VALVE ASSY, flow divider, for components see list of parts under details of flow divider valve

1шт.

33

9403297

LOCK NUT,Blkhd, 1 3/16"-12

NUT, 1-3/16-12 bulkhead union lock

1шт.

34

9403296

LOCK NUT,Blkhd, 1 1/16"-12

NUT, 1-1/16-12 bulkhead union lock

1шт.

35

VALVES, hydraulic control, refer to hydraulic control valves listing

1шт.

36

9410284

ELBOW,90 Degree, 1 3/16"-12, 37 Degree x 1 3/16"-12, 37 Degree Fem Sw

1-3/16-12 37 deg hyd flared tube 90 deg swivel

1шт.

37

545774R1

HOSE ASSY, power, Serial Range: supply-backhoe

1шт.

38

545776R1

HOSE ASSY, power beyond

1шт.

39

545777R1

HOSE ASSY, return

1шт.

40

545775R1

HOSE ASSY, Serial Range: MVC-backhoe

1шт.

41

545764R1

CLAMP, hydraulic tube

1шт.

42

545763R1

BRACKET, clamp mounting

1шт.

180018

CONNECTING LINK

SCREW, 1/4-20 x 5/8 znd hex-hd cap

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

43

9403373

CAP,37 Degree, 7/8"-14

7/8-14 37 deg hyd flared tube

2шт.

44

9410207

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

UNION, 1-5/16-12 37 deg hyd flared tube short swivel

1шт.

45

481766R1

ADAPTER, 15/16 str-thd to 1-5/16 37 deg swivel

1шт.

46

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 OD tube

1шт.

47

547341R1

TUBE ASSY, flow, Serial Range: divider-swing

1шт.

48

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 37 deg hyd flared tube short swivel

1шт.

49

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

50

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

7/8-14 37 deg hyd flared tube 90 deg swivel

1шт.

51

547340R1

TUBE ASSY, flow divider to mid inlet

1шт.

52

545680R1

TEE, adj str thd reducer

1шт.

53

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tubing

1шт.

54

547339R1

ELBOW, 1-15/16-12 37 deg hyd flared tube 90 deg

1шт.
