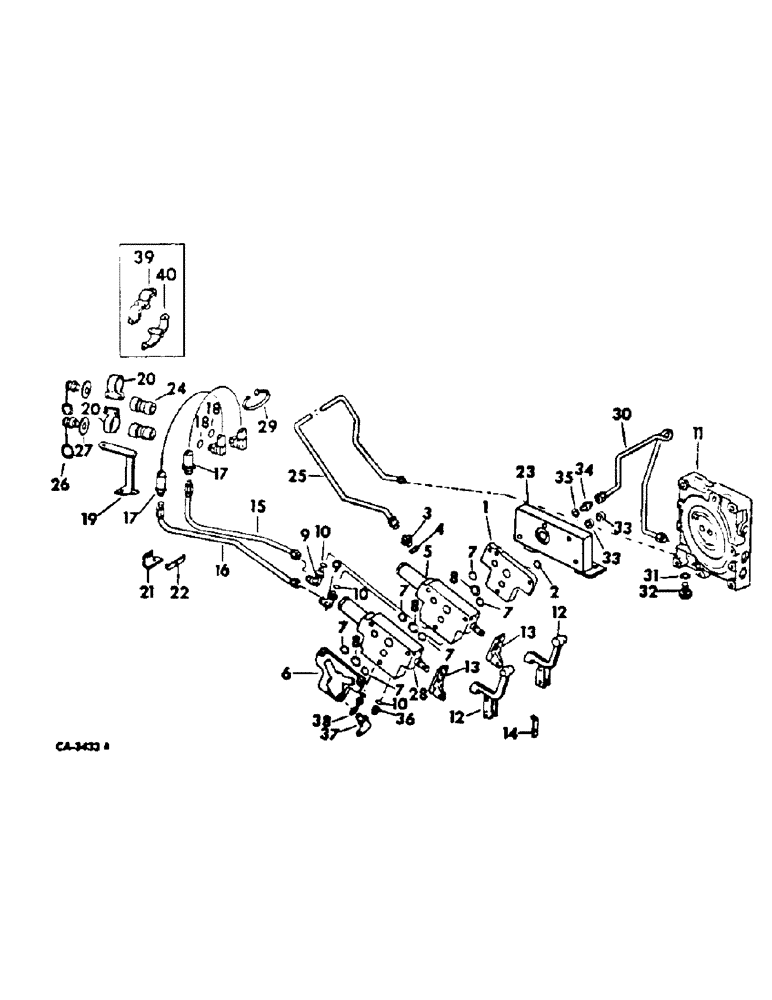

Запчасти Case IH 2400 (10-40) - HYDRAULICS, AUXILIARY VALVES AND TUBES (07) - HYDRAULICS

SERVICE PARTS FOR SINGLE AUXILIARY HYDRAULIC VALVE AND MANIFOLD ATTACHMENT FOR TRACTORS EQUIPPED W/HYDRAULIC DRAFT CONTROL ATTACHMENT, consists of all parts marked unit A

1шт.

SERVICE PARTS FOR SINGLE AUXILIARY HYDRAULIC VALVE AND MANIFOLD ATTACHMENT FOR TRACTORS EQUIPPED WITH 1850 OR 2050A LOADER, consists of all parts marked unit B

1шт.

SERVICE PARTS FOR SINGLE AUXILIARY HYDRAULIC VALVE AND MANIFOLD ATTACHMENT FOR TRACTORS EQUIPPED W/FLAT PLATE REAR FRAME COVER, consists of all parts marked unit C

1шт.

530612R91

PARTS ACCESSORY, single auxiliary hydraulic valve for tractors equipped w/hydraulic draft control attachment, consists of all parts marked unit D

1шт.

67282C91

PARTS ACCESSORY, single auxiliary hydraulic valve for tractors equipped with flat plate rear frame cover, consists of all parts marked unit E

1шт.

530613R91

PARTS ACCESSORY, rear manifold for use w/first valve, consists of all parts marked unit F

1шт.

530616R91

PARTS ACCESSORY, second auxiliary hydraulic valve for tractors equipped w/first valve, consists of all parts marked unit G

1шт.

1

530209R1

BLOCK, control valve transfer, units A, B, C, D and E

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4 hex-hd cap

2шт.

2

379794R1

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

1-1/4 x 1-7/16 x 3/32, units A, B, C, D and E

1шт.

3

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 37 deg hyd flared tube short swivel, units A, B, C, D and E

1шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube, units A, B, C, D and E

1шт.

5

529912R92

VALVE

ASSY, hyd open center control, units A, B, C, D and E, for components, see list of parts under details of hydraulic control valve

1шт.

6

376023R4

COVER

open center control valve, units A, C, D and E

1шт.

6

470603R4

MANIFOLD

COVER, open center control valve, unit B

1шт.

381784R1

BOLT,Hex, 3/8" - 16 x 3 3/8", Gr 8

SCREW, 3/8-16 x 3-3/8 hex-hd cap

2шт.

450517

BOLT,Hex, 3/8" - 16 x 4 3/4", Gr 5

SCREW, 3/8-16 x 4-2/4 hex-hd cap

1шт.

7

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32, 4 used unit A, B, C, D and E, 6 w/unit G

1шт.

8

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16 x 3/32, 2 used unit A, B, C, D and E, 3 w/unit G

1шт.

9

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared tube, unit A, B, C and F, replaces tee 9411132 and cap 9403373

2шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube, units A, B, C, D, E, F and G

2шт.

11

57714C93

VALVE

ASSY, multiple control, for components see list of parts under details of multiple control valve, unit C

1шт.

12

530210R1

HANDLE

aux hyd valve control, units A, B, C, D, E and G

1шт.

16811R1

PIN, 1/2 x 1-11/16 rod end

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .095

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, 1/8 x 3/4 cot.

2шт.

13

467948R1

BRACKET

aux hyd valve control handle, units A, B, C, D, E and G

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

530211R1

BAR, aux hyd valve float lockout, units A, B, C, D, E and G

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

Float lockout bar Hex Flg, 5/16"-18 x 1/2", Serr

1шт.

15

535296R1

TUBE

ASSY, rear outlet raise, units A, B, C and F

1шт.

16

535297R1

TUBE

ASSY, rear outlet lower, units A, B, C and F

1шт.

17

535302R1

HOSE

ASSY, rear outlet, units A, B, C and F

2шт.

18

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube, units A, B, C and F

2шт.

19

535298R1

SUPPORT

BRACKET ASSY, rear manifold mounting, units A, B, C and F

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

5/16"-18 x 1-1/4" hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 hex-hd cap, unit A, B and F

2шт.

25673R1

WASHER,17/32" x 1 1/16" x .095", HDN

17/32 x 1-1/16 x .095, unit A, B and F

2шт.

20

3114106R1

CLAMP

mounting, units A, B, C and F

2шт.

21

535300R1

BRACKET

rear outlet tube, units A, B, C and F

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 hex-hd cap, units A, B and F

1шт.

22

535301R1

CLAMP

rear outlet tube, units A, B, C and F

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

5/16"-18 x 1-1/4" znd hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

23

67294C1

PLATE ASSY, aux valve mounting, unit C and E

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

125-10003

NUT,3/8"-16, G5, LH

3/8-16 hex.

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

24

395150R91

COUPLING, QUICK, FEM

COUPLING ASSY, hyd self-sealing female str thd, units A, B, C and F

2шт.

25

530222R1

TUBE

ASSY, aux hyd valve return, unit D

1шт.

25

66761C1

TUBE ASSY.

TUBE ASSY, draft control return, unit C and E

1шт.

26

401757R11

PLUG

W/WASHER, coupling dust, units A, B, C and F

2шт.

27

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

dust plug, units A, B, C and F

2шт.

28

529912R92

VALVE

ASSY, hyd open center control, unit G, for components, see list of parts under details of hydraulic control valve

1шт.

381781R1

BOLT,Hex, 3/8" - 16 x 5 3/8", Gr 8

SCREW, 3/8-16 x 5-3/8 hex-hd cap

2шт.

20507R1

BOLT,Hex, 3/8" - 16 x 6 3/4", Gr 5

SCREW, 3/8-16 x 6-3/4 hex-hd cap

1шт.

29

306132C1

CABLE TIE,14.5" L

STRAP, hose, units A, B, C and F

1шт.

30

67298C1

TUBE

ASSY, aux valve supply, unit C and E

1шт.

31

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32, unit E

1шт.

32

399858R92

VALVE

ASSY, pilot relief, 2500 PSI, unit E

1шт.

33

401941R1

SPACER

aux valve mounting plate, unit C and E

2шт.

34

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 37 deg hyd flared tube, unit C and E

1шт.

35

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube, unit C and E

1шт.

36

9410360

PLUG

7/8-14 str thd-o-ring boss, units D, E and G

2шт.

37

9411108

ELBOW,45 Degree, 1 3/16"-12 x 1 3/16"-12, 37 Degree

1-3/16-12 37 deg hyd flared tube adj str thd 45 deg, unit B

1шт.

38

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube, unit B

1шт.

39

371115R1

CLAMP

hydraulic self-sealing, unit A, B, C and F

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

SCREW, 5/16-18 x 1-1/2 hex-hd cap

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

40

371114R1

CLAMP

FRAME, hyd self-sealing coupling, unit A, B, C and F

1шт.

395149R1

QUICK MALE COUPLING

COUPLING ASSY, hyd self-sealing male

2шт.
