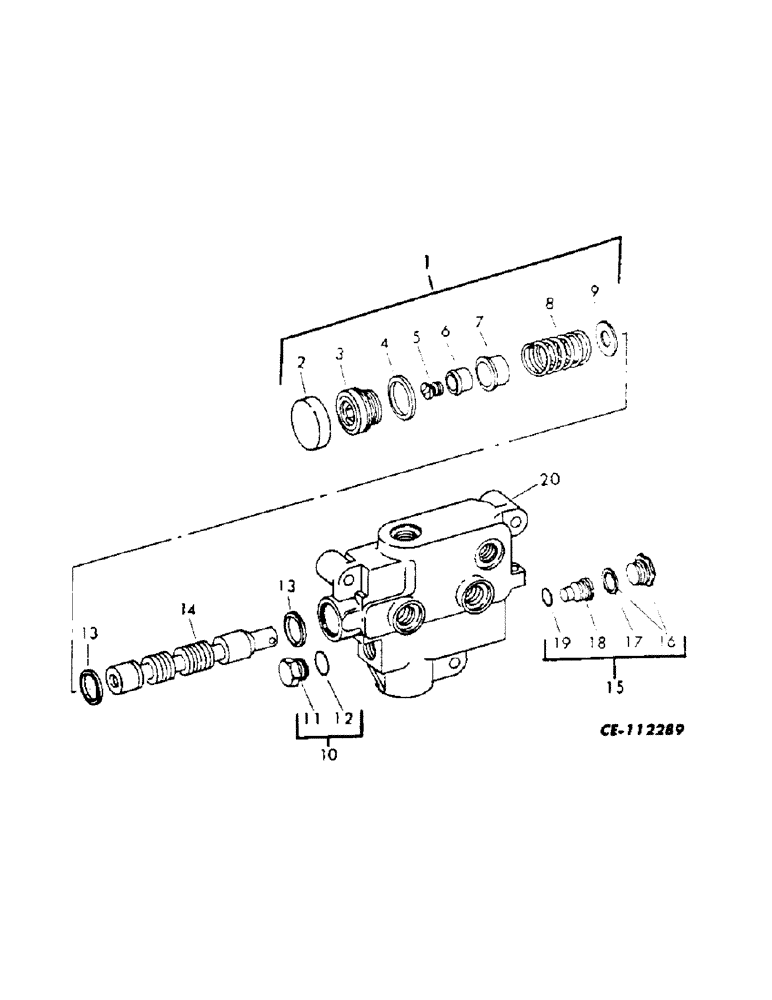

Запчасти Case IH 2400 (10-29) - HYDRAULICS, MOTOR CONTROL VALVE (07) - HYDRAULICS

538201R91

VALVE ASSY, motor control, composed of the following parts

1шт.

1

63821C91

VALVE ASSY, positioning

1шт.

2

63822C1

CAP

bonnet

1шт.

3

63823C1

DETENT

VALVE, detent

1шт.

4

63829C1

SPACER, detent

1шт.

5

63824C1

BOLT,Shoulder, 5/16" - 18 x 0.72"

shoulder

1шт.

6

63825C1

PLUNGER, detent

1шт.

7

63826C1

COLLAR

stop

1шт.

8

63827C1

SPRING

1шт.

8

63828C1

WASHER, stop

1шт.

10

63830C1

PLUG ASSY

1шт.

11

PLUG, not serviced separately, order plug assy, 63830C1

1шт.

12

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32

1шт.

13

63834C1

PACKING

SEAL, spool packing

2шт.

14

SPOOL, not serviced separately, order valve assy

1шт.

15

63831C91

PLUG ASSY

1шт.

16

63833C1

PLUG W/GASKET, outer

1шт.

17

GASKET, not serviced separately, order plug, 63833C1

1шт.

18

63832C1

PLUG, inner

1шт.

19

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

20

BODY, not serviced separately, order valve assy

1шт.
