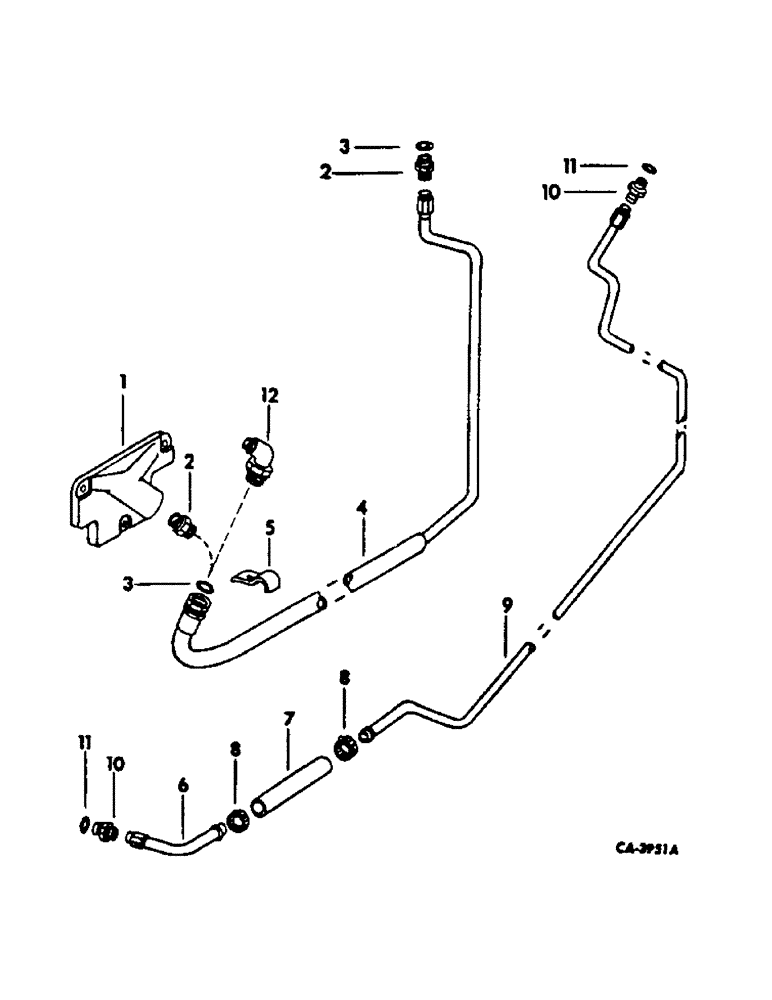

Запчасти Case IH 2400 (10-26) - HYDRAULICS, POWER SUPPLY, TRACTORS WITH INTERNAL PUMPS (07) - HYDRAULICS

1

COVER, power beyond, for component, see list of parts under details of auxiliary valves and tubes

1шт.

2

469736R1

HYD CONNECTOR,7/8"-14, 37 Degree x 1 3/16"-12, O-Ring

CONNECTOR, 1-3/16-12 o-ring boss, tractors w/o auxiliary valves & 2 for tractors w/auxiliary valves

1шт.

2

9410360

PLUG

7/8-14 str thd o-ring boss, tractors w/o auxiliary valves

1шт.

3

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1-13/64 x 1-7/32 x 1/8, tractors w/o auxiliary valves & 2 for tractors w/auxiliary valves

1шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube, tractors w/o auxiliary valves

2шт.

4

544554R2

HOSE

PRESSURE LINE, tractor to loader pressure

1шт.

5

544555R1

CLAMP, subframe tube

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

57232C1

FITTING, return line

1шт.

7

HOSE, return line, furnish 4 in. of 1 in. ID hose from a 50 ft. roll marked 490960R1

1шт.

8

279024R91

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP, hose

2шт.

9

57249C1

TUBE ASSY, loader valve return

1шт.

10

9410207

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR, 1-5/16-12 37 deg hyd flared tube short swivel

2шт.

11

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 in. OD tube

2шт.

12

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared tube, tractors without auxiliary valves

1шт.
