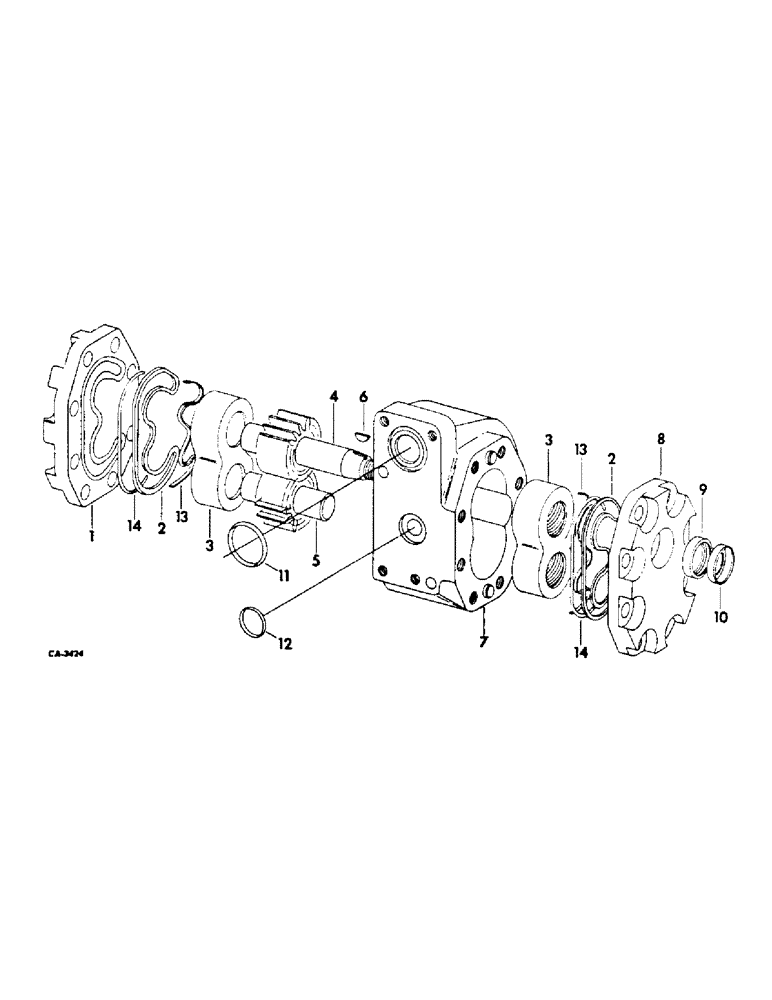

Запчасти Case IH 2400 (10-25) - HYDRAULICS, HYDRAULIC GEAR PUMP, PLESSEY (07) - HYDRAULICS

*

PUMP ASSY, hydraulic gear, on orders for complete pump assy 406827R91, furnish pump 67248C91 or 66513C91

1шт.

*

66513C91

PUMP, HYDRAULIC

PUMP ASSY, hydraulic gear, optional with 67248C91

1шт.

*

84573150R

REMAN-HYD PUMP

454, 2400, Both INTERNATIONAL SERIES-A TRACTOR (NORTH AMERICA), PUMP ASSY, hydraulic gear (1/71-12/73), Reman for New PN 66513C91

1шт.

*

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

COVER, pump body, not serviced separately, order pump assy

1шт.

2

RING, sealing, not serviced separately, order seal package

2шт.

3

BEARING, not serviced separately, order pump assy

2шт.

4

GEAR ASSY, drive, not serviced separately, order pump assy

1шт.

5

GEAR ASSY, drive, not serviced separately, order pump assy

1шт.

6

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Drive gear #6, 5/32" x 5/8", HT

1шт.

7

BODY, pump assy, not serviced separately, order pump assy

1шт.

8

COVER, pump body, not serviced separately, order pump assy

1шт.

9

SEAL, drive shaft, not serviced separately, order seal package

1шт.

10

RETAINER, shaft seal, not serviced separately, order pump assy

1шт.

11

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

suction port

1шт.

12

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

pressure port

1шт.

13

STRIP, backing, not serviced separately, order seal package

1шт.

14

STRIP, backing, not serviced separately, order seal package

1шт.

*

70230C1

SEAL KIT

PACKAGE, seal, replaces 534262R92, consists of (2) ring (NSS), (2) strip (NSS), (2) strip (NSS), (1) seal (NSS)

1шт.
