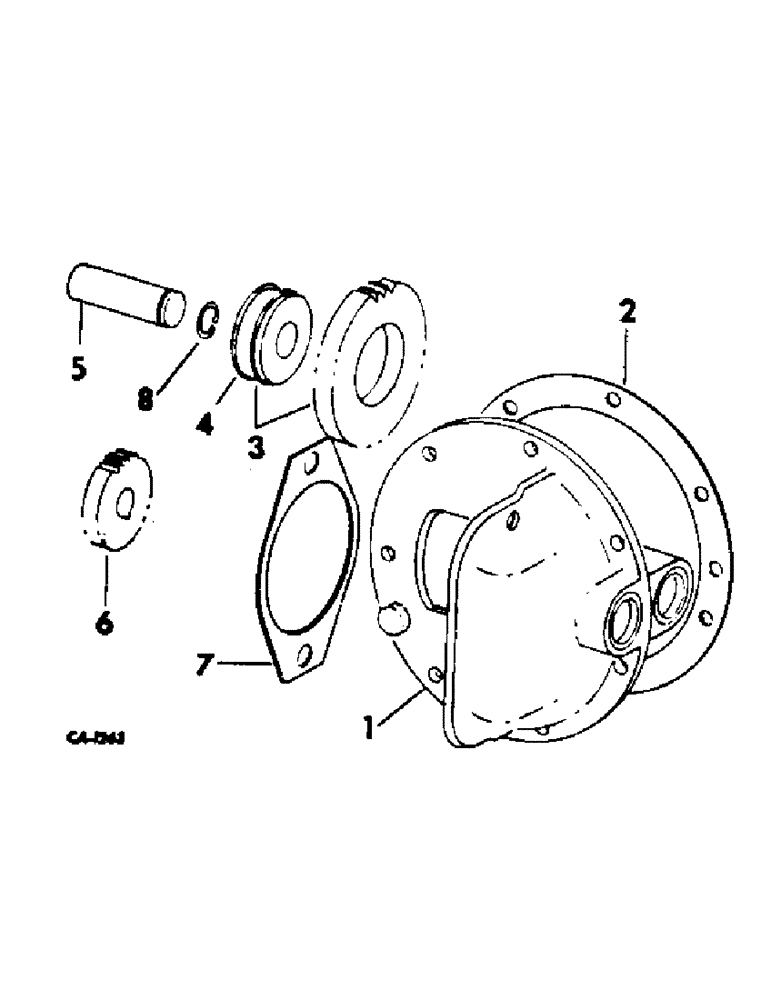

Запчасти Case IH 2400 (10-20) - HYDRAULICS, SIDE MOUNTED HYDRAULIC PUMP DRIVE (07) - HYDRAULICS

528643R93

PISTON ASSY.

PARTS ACCESSORY, side mounted hydraulic pump drive, 2400 series A tractors

1шт.

1

528644R1

HOUSING ASSY.

HOUSING ASSY, hyd pump mounting

1шт.

NLS

NO LONGER SERVICED

7шт.

2

528649R1

GASKET

hyd pump mounting housing light

1шт.

2

528650R1

GASKET

hyd pump mounting housing med

1шт.

3

528646R11

GEAR

ASSY, hyd pump idler

1шт.

ST421

SNAP RING,1.65mm Thk, Ext

RING, gear retaining snap

1шт.

4

528647R91

BALL BEARING

hyd pump idler gear

1шт.

5

528648R1

SHAFT

hyd pump idler gear

1шт.

142523

DRIVING SPROCKET

Pin, Grooved, 1/4" x 2", Type A

1шт.

6

528652R1

GEAR

side pump driven

1шт.

21121R1

LOCK NUT,1/2"-20, GB

NUT, 1/2-20 nylon insert hex.

1шт.

7

538898R1

GASKET

hyd pump, will work for 528653R1

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 hex-hd cap

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

102637

NUT,1/2"-13, G5

2шт.

8

515440R1

SNAP RING,#98, Ext

Ring, Snap, , gear #98, Ext

2шт.

66730C1

DIPSTICK

GAUGE ASSY, rear frame oil level

1шт.

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 x 3/8 x 1/16, oil level gauge

1шт.
