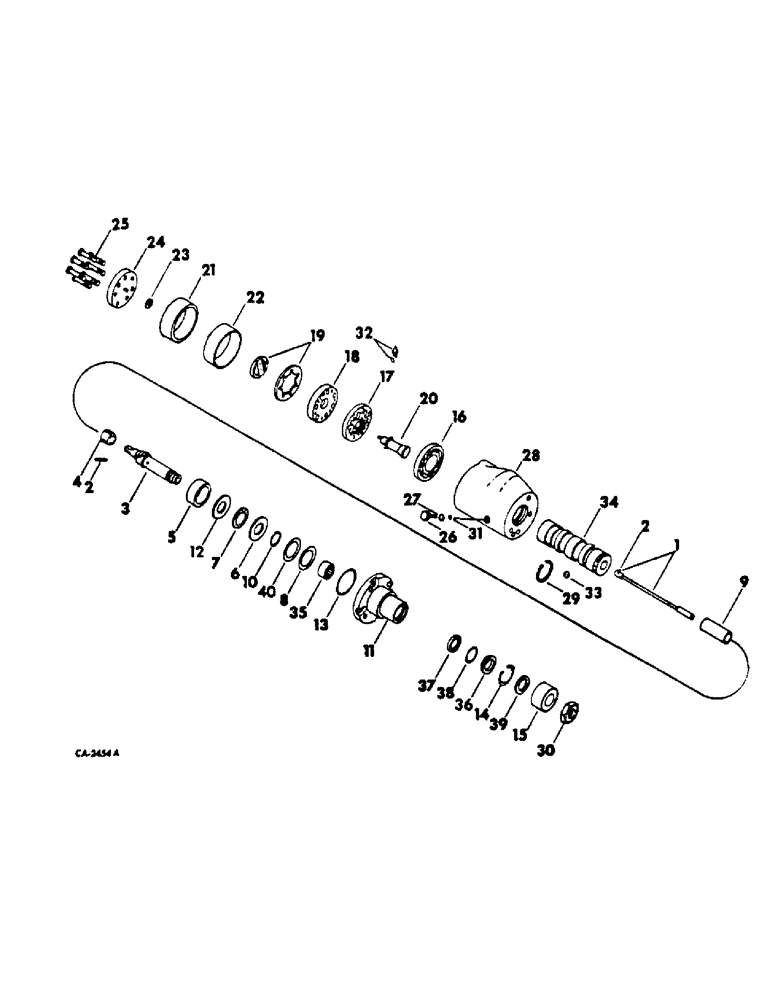

Запчасти Case IH 2400 (10-19) - HYDRAULICS, HYDROSTATIC INTEGRAL STEERING ASSEMBLY (07) - HYDRAULICS

534852R92

HYDRAULIC STEERING

STEERING ASSY, internal hydrostatic, on orders for complete steering assy, furnish 70110C94

1шт.

70110C94

PUMP

STEERING ASSY, internal hydrostatic

1шт.

If customer has Danfuss steering assembly (part no. 67698c93) use seal and o'ring kit # 3141548r91

1шт.

1

535055R1

BAR

TORSION BAR ASSY

1шт.

2

535056R1

PIN

torsion bar needle

1шт.

3

535057R1

SHAFT

input

1шт.

4

535058R1

RING

drive

1шт.

5

SPACER, on orders for spacer 535086R1 on 536361R1 furnish washer 928469C1, spacer 928468C1, bearing 379783R91 and washer 379785R1

1шт.

5

928468C1

SPACER

1шт.

6

535087R1

THRUST WASHER

thrust

1шт.

7

379783R91

THRUST BEARING

BEARING, thrust, will work for 535088R1 and 321898R91

1шт.

8

67567C1

PACKAGE

shim, consists of (4) shim .010 (NSS), (4) shim .005 (NSS), (1) shim .002 (NSS), (1) shim .030 (NSS)

1шт.

9

535120R1

SPACER

drive link

1шт.

10

454331R1

SNAP RING,#87, Ext

1шт.

11

535090R1

COVER

upper, used with steering assembly 534852R92

1шт.

24481R1

SCREW

cover

4шт.

11

70115C1

COVER

upper, used with steering assembly 70110C94

1шт.

24481R1

SCREW

cover

4шт.

12

379785R1

THRUST WASHER

WASHER

1шт.

13

535091R1

RING

seal

1шт.

14

383878R1

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

1шт.

15

535092R1

SHIELD

pump shaft, used with steering assembly 534852R91

1шт.

16

535093R1

SPACER

1шт.

17

535095R1

ROTOR ASSY.

ROTOR SET

1шт.

18

535096R1

MANIFOLD

1шт.

19

535097R1

ROTOR

COMMUTATOR ASSY

1шт.

20

538069R1

DRIVE

LINK, replaces 535094R1

1шт.

21

535098R1

BUSHING,77.57mm ID x 82.8mm OD x 39.62mm L

rotor

1шт.

22

71359C1

RETAINER

SEAL, retainer, replaces 535099R1 and 71423C1

1шт.

23

535100R1

THRUST WASHER

1шт.

24

535101R1

COVER

END COVER ASSY

1шт.

25

535102R1

BOLT,Spcl, Hex, 5/16" - 18 x 2.50", Gr 5

end cover

7шт.

26

379901R91

PLUG

AND ROLL PIN ASSY

1шт.

27

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, Boss Plug

1шт.

28

BODY ASSY, not serviced separately, furnish steering assy, 70110C94

1шт.

29

536360R1

SPRING

ball pre-load

1шт.

30

F19646

LOCK NUT,13/16"-20, Thin

NUT, 13/16-20 hex.

1шт.

31

16008R1

BALL,1/4" Dia, Steel

1/4 dia. stl

1шт.

32

405790R91

PACKAGE

vane and spring

1шт.

33

16010R1

BALL

5/16 dia stl

2шт.

34

VALVE, spool, not serviced separately, furnish steering assy 70110C92

1шт.

35

BEARING, needle, not service separately, furnish upper cover

1шт.

36

PACKING, block vee, not serviced separately, furnish steering service package

1шт.

37

BACKUP RING, packing, not serviced separately, furnish steering service package

1шт.

38

WASHER, brass, not serviced separately, furnish steering service package

1шт.

39

BUSHING, felt, not serviced separately, furnish steering service package

1шт.

40

928469C1

WAVE WASHER

wave

1шт.

68200C1

SERVICE KIT

PACKAGE, hydrostatic steering service, used with steering assembly 534852R92, consists of (1) ring (NSS), (1) seal (NSS), (1) spacer (NSS), (1) seal (NSS)

1шт.

123465C1

X

PACKAGE, hydrostatic steering service, used with steering assembly 70110C94, replaces 70116C1, consists of (1) ring (NSS), (1) seal (NSS), (1) spacer (NSS), (1) seal (NSS)

1шт.
