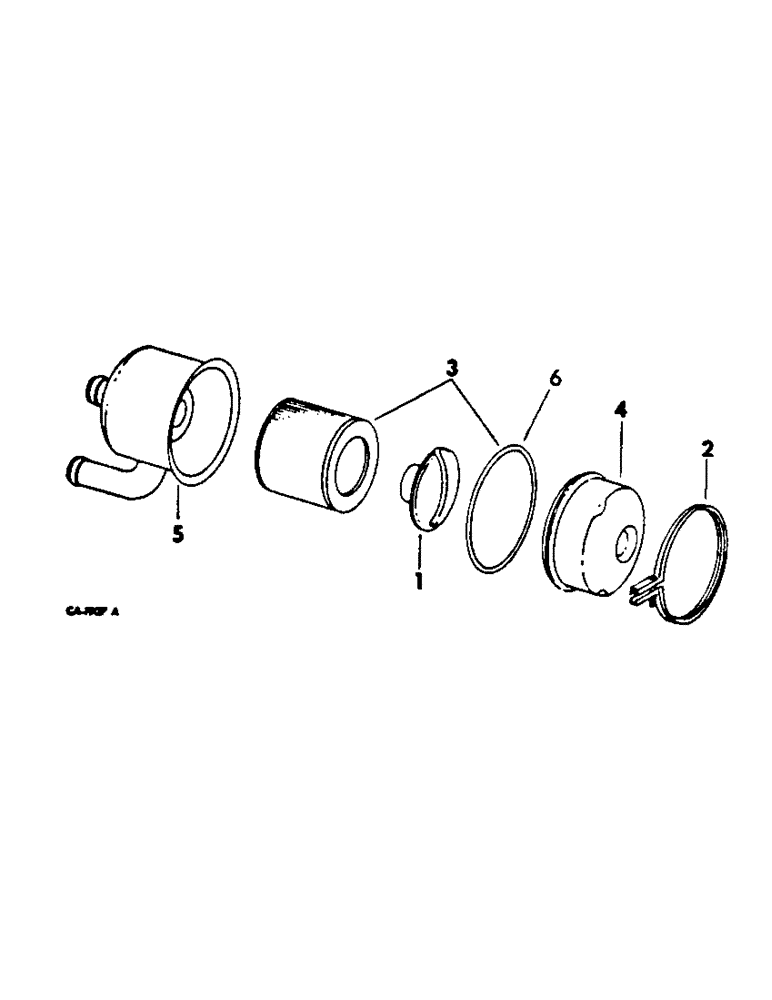

Запчасти Case IH 2400 (10-18) - HYDRAULICS, OIL FILTER (07) - HYDRAULICS

547254R92

FILTER ASSY, oil

1шт.

1

402211R1

VALVE

AND SCREEN ASSY

1шт.

2

61920C91

BAND

PACKAGE, v-clamp service, consists of (1) v-clamp 61921C1 (NSS), (1) bolt 15053R1, (1) nut 120376

1шт.

15053R1

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 sq-nk

1шт.

120376

NUT,5/16"-18, G5

1шт.

3

547412R91

FILTER

PACKAGE, oil filter element, consists of (1) element 541275R1 (NSS), (1) ring 541456R1

1шт.

4

COVER, not serviced separately, order filter assy

1шт.

5

BODY, filter, not serviced separately, order filter assy

1шт.

6

541456R1

O-RING,5.975" ID x 0.21" Width

RING, clamp

1шт.
