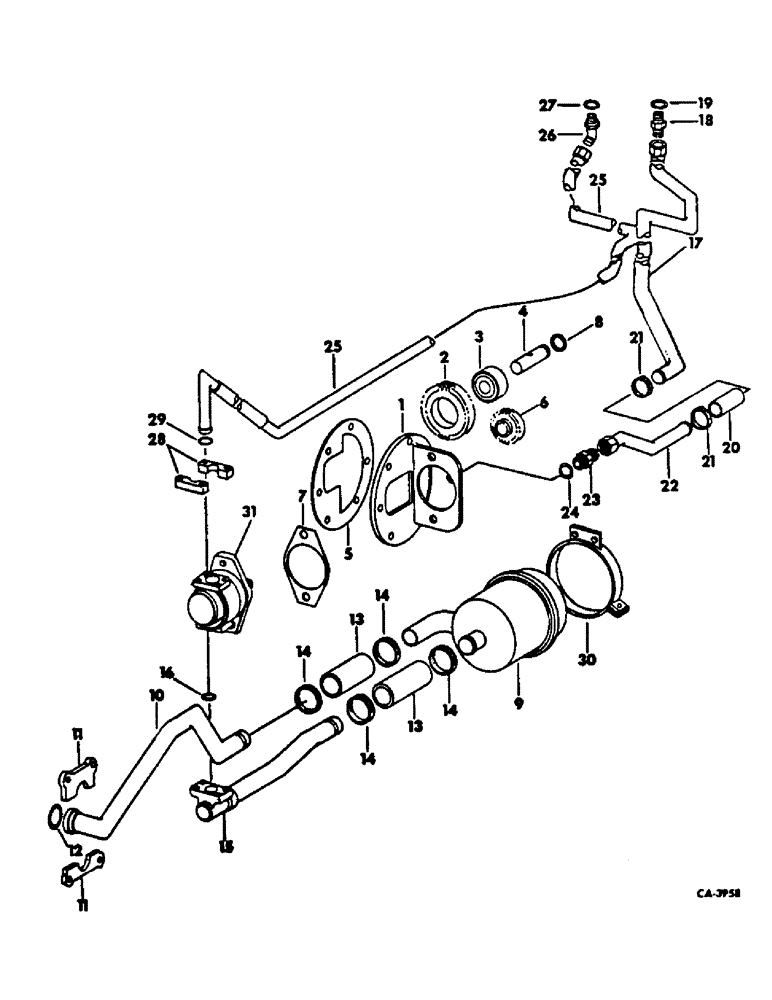

Запчасти Case IH 2400 (10-16) - HYDRAULICS, POWER SUPPLY, TRACTORS WITH SIDE MOUNTED PUMP OR WITH BACKHOE (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
528644R1
HOUSING ASSY.
HOUSING ASSY, hyd pump mounting
1шт.
102637
NUT,1/2"-13, G5
2шт.
NLS
NO LONGER SERVICED
7шт.
179889
BOLT,Hex, 1/2" - 13 x 2", Gr 5
SCREW, 1/2-13 x 3 hex-hd cap
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
2
528646R11
GEAR
W/BEARING, hyd pump idler
1шт.
3
528647R91
BALL BEARING
hyd pump idler gear
1шт.
4
528648R1
SHAFT
hyd pump idler gear support
1шт.
38-31632
PIN,1/4" x 2", Coiled
Pin, Grooved, 1/4" x 2", Type A
1шт.
5
528650R1
GASKET
pump mounting medium
1шт.
6
528652R1
GEAR
side pump drive
1шт.
21121R1
LOCK NUT,1/2"-20, GB
NUT, 1/2-20 nylon insert
1шт.
7
538898R1
GASKET
hydraulic pump
1шт.
8
515440R1
SNAP RING,#98, Ext
Ring, Snap, , gear #98, Ext
2шт.
9
547254R92
FILTER ASSY, for components see list of parts under details of filter assy
1шт.
10
544499R2
TUBE ASSY, Serial Range: tractors-filter
1шт.
11
301844R1
FLANGE
split
2шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
SCREW, 1/2-13 x 1-1/2 znd hex-hd cap
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
12
343921R1
O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro
1-7/8 x 2-1/8 x 1/8
1шт.
13
480901R1
HOSE
filter suction rear
2шт.
14
995220R1
CLAMP
hose size 28
4шт.
15
544491R2
HYD TUBE
TUBE ASSY, Serial Range: filter-pump
1шт.
180149
LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5
SCREW, 7/16-14 x 1-1/2 znd hex-hd cap
4шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
4шт.
17
544493R3
TUBE ASSY, return
1шт.
18
9410207
HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring
UNION, 1-5/16-12 C-Z 37 deg hyd flared tube short swivel
1шт.
19
296247R1
O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk
1 in. OD tube
1шт.
20
HOSE, return line, furnish 4 in. of 1 in. ID hose from a 50 ft roll marked 490960R1
1шт.
21
995219R1
CLIP
CLAMP, hose size 24
2шт.
22
544495R1
TUBE ASSY, return
1шт.
23
574018R1
HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring
CONNECTOR, 1-1/16-12 37 deg hyd flared tube, tractors w/o backhoe
1шт.
24
368269R1
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
3/4 OD tube, tractors w/o backhoe
1шт.
25
544552R2
HYD TUBE
TUBE ASSY, pressure line, tractors w/o backhoe
1шт.
26
9411108
ELBOW,45 Degree, 1 3/16"-12 x 1 3/16"-12, 37 Degree
1-3/16 37-12 deg hyd flared tube adj 45 deg, tractors w/o backhoe
1шт.
27
297459R1
O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro
1 x 1-1/4 x 1/8, tractors w/o backhoe
1шт.
28
295698R1
CLAMP
FLANGE, half 4 bolt split, tractors w/o backhoe
2шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
SCREW, 3/8-16 x 1-1/4 znd hex-hd cap
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
29
343906R1
O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro
1-5/16 x 1-9/16 x 1/8, tractors w/o backhoe
1шт.
30
544500R2
CLAMP ASSY, filter
1шт.
120377
NUT,3/8" - 16, Gr 5
3шт.
22523R1
BOLT (SPREADER),3/8" x 1", Gr 5
SCREW, 3/8-16 x 1 znd hex-hd cap
1шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
SCREW, 3/8-16 x 1-1/4 znd hex-hd cap
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
3шт.
31
544707R93
HYDRAULIC PUMP
PUMP ASSY, 18 GPM side mounted hyd, tractors w/o backhoe, Thompson, for components see list of parts under details of side mounted hydraulic pump, optional w/544708R92
1шт.
31
544708R92
PUMP
ASSY, 18 GPM side mounted hyd, tractors w/o backhoe, Cessna, for components see list of parts under details of side mounted hydraulic pump, optional w/544707R93
1шт.
31
546686R93
HYDRAULIC PUMP
PUMP ASSY, 13.5 GPM, Thompson, tractors with backhoe, for components see list of parts under details of side mounted hydraulic pump, optional w/547301R92
1шт.
31
547301R92
PUMP
ASSY, 13.5 GPM, Cessna, tractors with backhoe, for components see list of parts under details of side mounted hydraulic pump, optional w/546686R93
1шт.
528642R91
PARTS ACCESSORY, side mounted hydraulic pump drive, consists of ref nos. 1 through 8 and attaching hardware
1шт.
Выбрано товаров: 51
