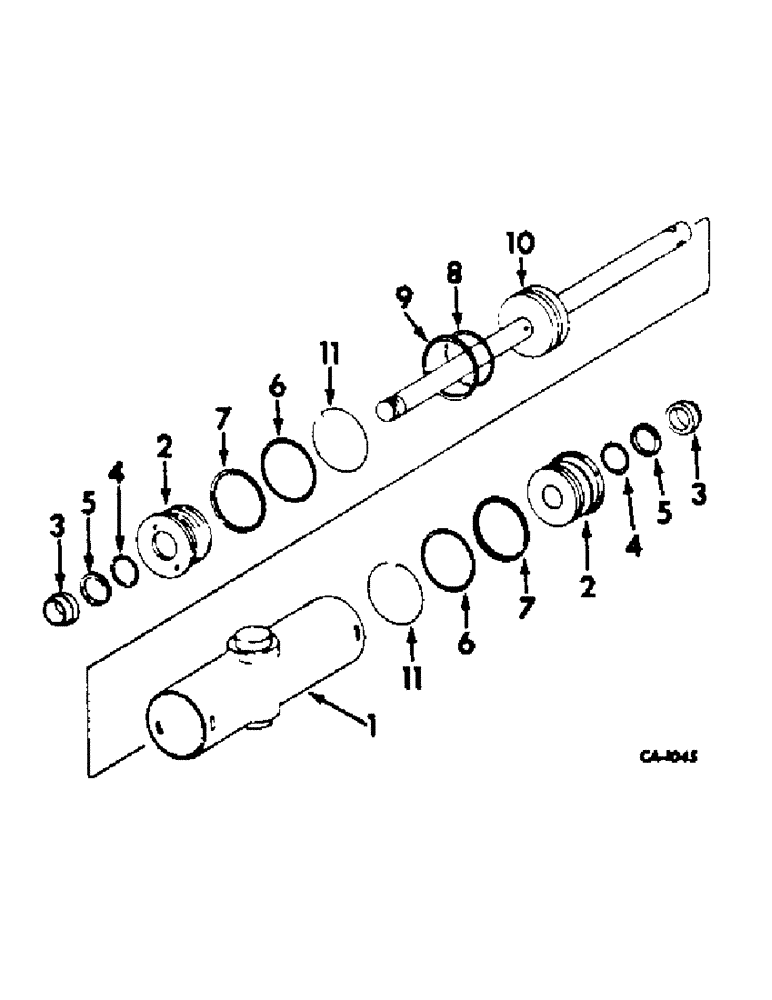

Запчасти Case IH 2400 (10-14) - HYDRAULICS, POWER STEERING CYL., ALL TRACTORS EXCEPT INTL 2400 SERIES A WITH CAST I BEAM FRONT AXLE (07) - HYDRAULICS

CYLINDER, hydraulic power steering, on orders for cylinder 400566R91, furnish cylinder 549667R91, clevis 549670R1 and o-ring 570828R1

1шт.

549667R1

CYLINDER, hydraulic power steering

1шт.

1

400587R1

HYD CYL SLEEVE

BODY ASSY, hyd cyl

1шт.

84336125R

REMAN-HYD CYLINDER

454, 2400 Both (1/71-12/73), Reman for New P/N 400587R1

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

2

400591R1

HEAD

rear

2шт.

3

531183R1

WIPER SEAL,24.23mm ID x 38.91mm OD x 8.73mm Thk

WIPER, piston rod

2шт.

4

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1 x 1-1/4 x 1/8

2шт.

5

379571R1

BACK-UP RING,Split, 25.37mm ID x 31.67mm OD x 1.32mm Thk

piston rod back-up

2шт.

6

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2-1/4 x 2-1/2 x 1/8, rear head static

2шт.

7

380499R1

BACK-UP RING,Split, 57.58mm ID x 63.88mm OD x 1.32mm Thk

rear head back-up

2шт.

8

27034R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 6, 90 Duro

2-1/16 x 2-1/4 x 3/32 piston seal

1шт.

9

379959R1

RING,Square, 3.17mm Thk x 58mm ID

SEAL RING, piston

1шт.

10

549668R1

PISTON ROD

ROD ASSY, piston, on orders for rod 400592R1 furnish rod 549668R1, clevis 549670R1 and o-ring 570528R1

1шт.

11

385133R1

RETAINING WIRE

RING, retaining

2шт.

55355C91

GASKET KIT

PACKAGE, hydraulic cylinder service consists of (2) wiper 531183R1, (2) o-ring 380794R1, (2) washer 379571R1, (2) o-ring 293726R1, (2) washer 380499R1, (1) o-ring 27034R1, (1) seal 379959R1, (2) ring 385133R1

1шт.
