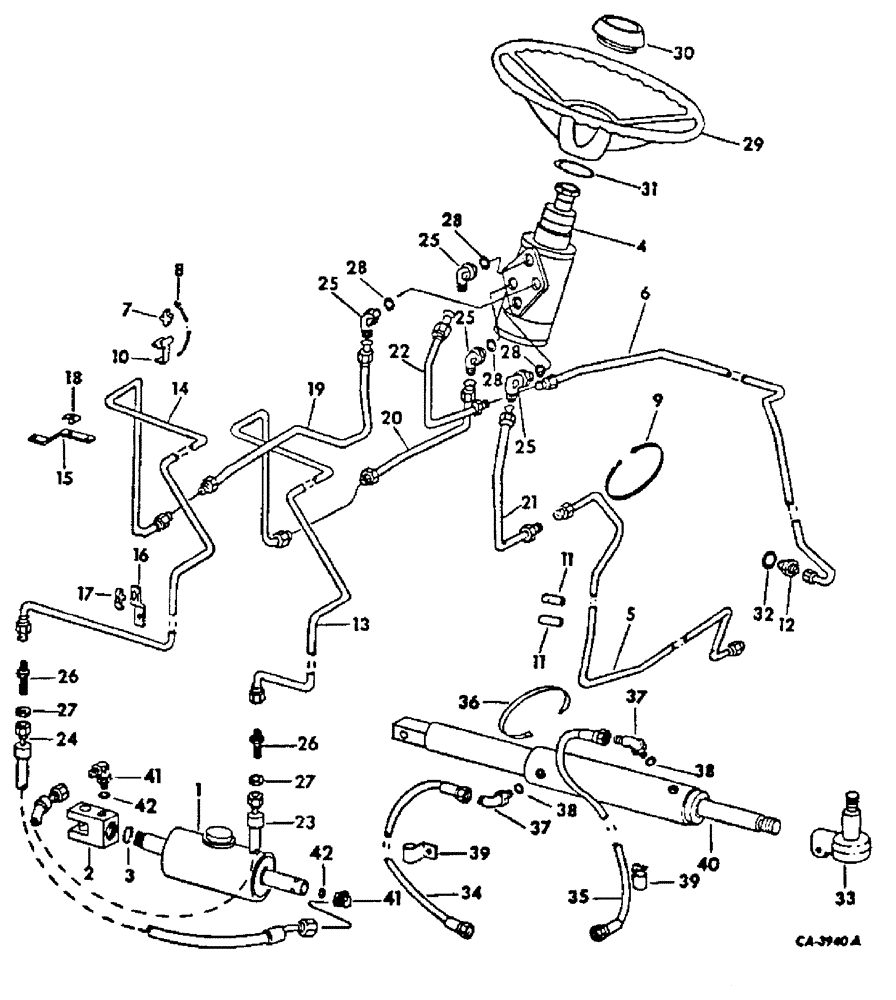

Запчасти Case IH 2400 (10-12) - HYDRAULICS, POWER STEERING, 2400 SERIES A TRACTORS WITH SERIAL NO. 100004 AND ABOVE (07) - HYDRAULICS

1

549667R91

STEERING CYLINDER

CYLINDER ASSY, hyd power steering, all tractors except International 2400 series A w/cast I beam front axle, for components, see list of parts under details of power steering cylinder

1шт.

84336125R

REMAN-HYD CYLINDER

2400, 454 Both (1/71-12/73), Reman for New P/N 549667R91

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

2

549670R1

CLEANER

CLEVIS, cyl end

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive type lub

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

67488C2

PIN

power steering cylinder

1шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

4

70110C94

PUMP

STEERING ASSY, integral hydrostatic, will work for 534852R92, for components, see list of parts under details of integral hydrostatic steering assy

1шт.

5

66104C1

PIPE

TUBE ASSY, power steering return rear

1шт.

6

66105C1

TUBE ASSY.

TUBE ASSY, power steering pressure rear

1шт.

7

529637R2

GUIDE

manifold tube

1шт.

8

306132C1

CABLE TIE,14.5" L

STRAP, rear manifold tubes

1шт.

9

306132C1

CABLE TIE,14.5" L

STRAP, rear manifold tubes

1шт.

10

529638R1

BRACKET

rear manifold, synchromesh transmission tractors

1шт.

10

529639R1

BRACKET

rear manifold, hydrostatic drive tractors

1шт.

11

536009R1

FUEL HOSE,0.31" ID x 2.50"

Spacer 0.31" ID x 2.50"

2шт.

12

57577C1

CHECK VALVE

VALVE ASSY, power steering check

1шт.

13

66106C1

TUBE

ASSY, power steering LH fwd

1шт.

14

66108C1

TUBE

ASSY, power steering RH fwd

1шт.

15

529646R1

BRACKET

front manifold support

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

16

529642R1

BRACKET

front manifold

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

17

529643R11

CLAMP

ASSY, power steering tube

1шт.

18

384891R11

CLAMP

ASSY, power steering tube

1шт.

179795

TILLAGE BLADE

SCREW, 1/4-20 x 3/4 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

19

66110C1

TUBE

ASSY, power steering RH rear

1шт.

20

66111C1

TUBE

ASSY, power steering LH rear

1шт.

21

66112C1

TUBE,0.375" OD, 11.75, 4.35" Length

ASSY, power steering return fwd

1шт.

22

66114C1

TUBE,0.375" OD, 8.78, 5.39" Length

ASSY, power steering pressure fwd

1шт.

23

530131R1

HOSE

ASSY, power steering cyl LH

1шт.

24

530132R1

HYDRAULIC HOSE,0.25" ID x 18.00", SAE 100R1

HOSE ASSY, power steering cyl RH

1шт.

25

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 C-Z 37 deg hyd flared tube adj str thd 90 deg

4шт.

26

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION, 9/16-18 C-Z 37 deg hyd flared tube bulkhead

2шт.

115553

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

27

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT, 9/16-18 C-Z bulkhead union lock

2шт.

28

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

4шт.

29

385156R1

WHEEL (STEERING)

WHEEL, 16 in. dia steering

1шт.

29

385156R1GV

STEERING WHEEL

Vaule, Steering Wheel

1шт.

30

68837C1

CAP

steering wheel, will work for 378395R1

1шт.

31

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32

1шт.

32

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

33

378817R91

BALL JOINT

END ASSY, power steering cylinder, International 2400 series A tractors w/cast I beam front axle

1шт.

181646

BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 5

SCREW, 3/8-24 x 1-3/4 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120369

NUT,3/8"-24, G5

1шт.

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

7/8-14 znd slt-hex.

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

34

537283R1

HOSE

power steering RH, International 2400 series A tractors w/cast I beam front axle

1шт.

35

537284R1

HOSE

power steering LH, International 2400 series A tractors w/cast I beam front axle

1шт.

36

306132C1

CABLE TIE,14.5" L

STRAP, LH hyd hose, International 2400 series A tractors w/cast I beam front axle

1шт.

37

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 C-Z 37 deg hyd flared tube adj str thd 90 deg, International 2400 series A tractors w/cast I beam front axle

2шт.

38

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, International 2400 series A tractors w/cast I beam front axle

2шт.

39

332791R1

CLAMP, International 2400 series A tractors w/cast I beam front axle

2шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

40

378580R91

STEERING CYLINDER

CYLINDER ASSY, power steering, International 2400 series A tractors w/cast I beam front axle, for components, see list of parts under details of hydraulic cylinder

1шт.

518505R1

HEADED PIN,3/4" x 3"

PIN, 3/4 x 3 std-hd

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

41

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 C-Z 37 deg hyd flared tube str thd 90 deg, all tractors except International 2400 series A w/cast I beam front axle

2шт.

42

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, all tractors except International 2400 series A w/cast I beam front axle

2шт.
