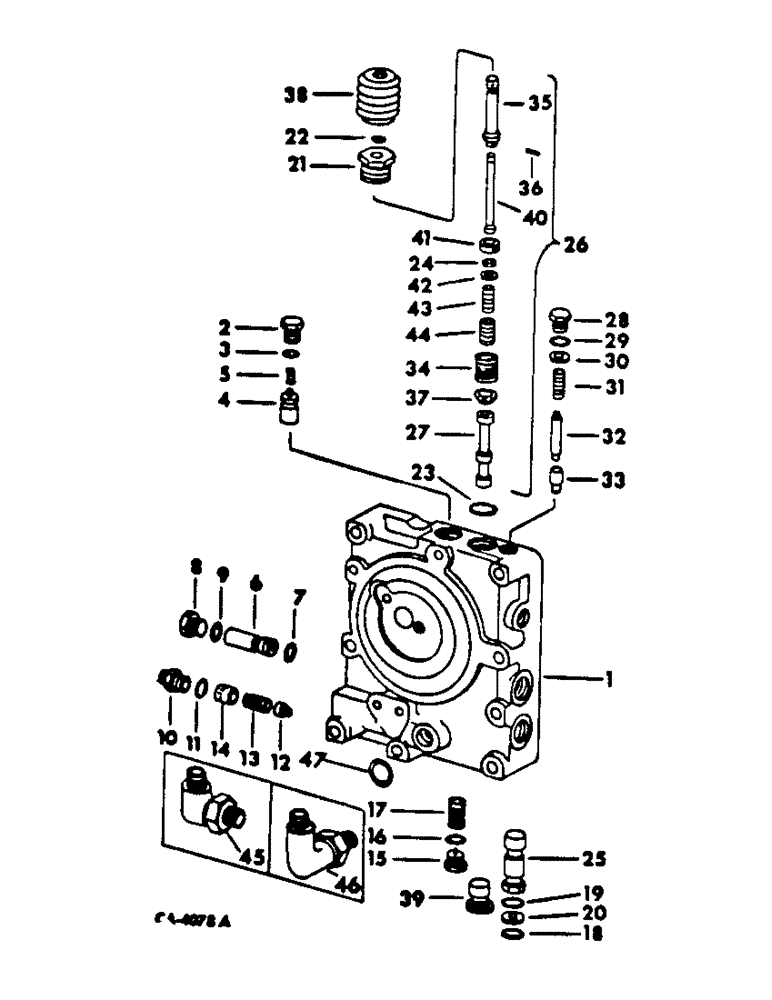

Запчасти Case IH 2400 (10-06) - HYDRAULICS, MULTIPLE CONTROL VALVE (07) - HYDRAULICS

405440R95

LOCK VALVE

VALVE ASSY, multiple control, on orders for complete valve assy furnish 57714C93

1шт.

57713C92

VALVE

ASSY, multiple control, tractors w/out draft control or auxiliary valves

1шт.

57714C93

VALVE

ASSY, multiple control, tractors with draft control, or auxiliary valves, replaces 405440R95

1шт.

1

BODY ASSY, multiple control valve, not serviced separately, furnish multiple control valve assy, consists of (1) body 405445R2 (NSS), (1) spool 405443R2 (NSS), flow divider, (1) seat 399867R1 (NSS), (2) pin 19879R1 (NSS), (2) pin 20020R1 (NSS)

1шт.

2

529492R1

PLUG

cooler by-pass

1шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

4

527482R1

VALVE,By-Pass

VALVE, by-pass, replaces 382301R1

1шт.

5

382299R1

SPRING

by-pass valve

1шт.

6

55356C1

VALVE, CUSHION

VALVE ASSY, safety, 1500 PSI, replaces 384444R92

1шт.

7

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 x 9/16 x 3/32

1шт.

8

536855R1

PLUG

3/4-16 str thd-o-ring boss

1шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

10

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR, 9/16-18 znd 37 deg flared tube short reducer, used with valve 57713C92 and 57714C93

1шт.

11

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

12

382304R1

CHECK VALVE

VALVE, check

1шт.

13

399869R1

SPRING

check valve

1шт.

14

399870R1

RETAINER

check valve spring

1шт.

15

406446R1

PLUG ASSY, FLOW DIVIDER

1шт.

16

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

5/8 OD tube

1шт.

17

405448R1

SPRING

flow divider valve

1шт.

18

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32

1шт.

19

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32

1шт.

20

378985R2

BACK-UP RING

back-up

1шт.

21

530781R2

GUIDE

control valve stem

1шт.

22

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32

1шт.

23

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube

1шт.

24

369107R1

SNAP RING,#21, Ext

SHIM, control valve

3шт.

25

399858R92

VALVE

ASSY, pilot relief, 2500 PSI, used with valve 405440R95 and 57714C93, for components see list of parts under details of pilot relief valve

1шт.

26

530775R93

VALVE

ASSY, control, less ref no. 24, tractors with skidded unit no. 29871 and below also furnish regulator valve spring 549850R1

1шт.

27

405452R2

VALVE

control

1шт.

28

573983R1

PLUG

regulator valve

1шт.

29

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

30

363454R1

WASHER,8.33mm ID x 12.3mm OD x 0.81mm Thk

spring retainer

3шт.

31

399880R1

SPRING

pressure regulator valve, tractors with skidded unit no. 29871 and below

1шт.

31

549850R1

SPRING

pressure regulator valve, tractors with skidded unit no. 29872 and above

1шт.

32

399881R1

PIN

pressure regulator valve

1шт.

33

399882R1

POPPET

pressure regulator poppet

1шт.

34

530776R1

SPRING

control valve return

1шт.

35

530777R2

STEM

control valve

1шт.

36

405456R1

PIN

control valve dowel

1шт.

37

405453R1

RETAINER

IPTO valve

1шт.

38

530780R1

BOOT

IPTO control dust

1шт.

39

378899R1

PLUG

relief valve chamber, used w/valve 57713C92

1шт.

40

405454R2

PIN

control valve guide

1шт.

41

530778R1

RETAINER

pin

1шт.

42

556980R1

WASHER

spring retainer

1шт.

43

399878R2

SPRING

control valve heavy

1шт.

44

381760R1

SPRING

control valve light

1шт.

45

533358R1

ELBOW

90 deg, used with valve 405440R95

1шт.

46

530052R2

VALVE

ASSY, check, used with valve 405440R95

1шт.

47

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, used with valve 405440R95

1шт.

A SKIDDED UNIT WAS A UNIT THAT WAS SHIPPED ON PALLETS AND ASSEMBLED IN THE U.S. TO SAVE TARIFF COSTS. SERIAL NO IS BY THE BELL HOUSING. SEE FRONT OF BOOK FOR PHOTO OF LOCATION.
