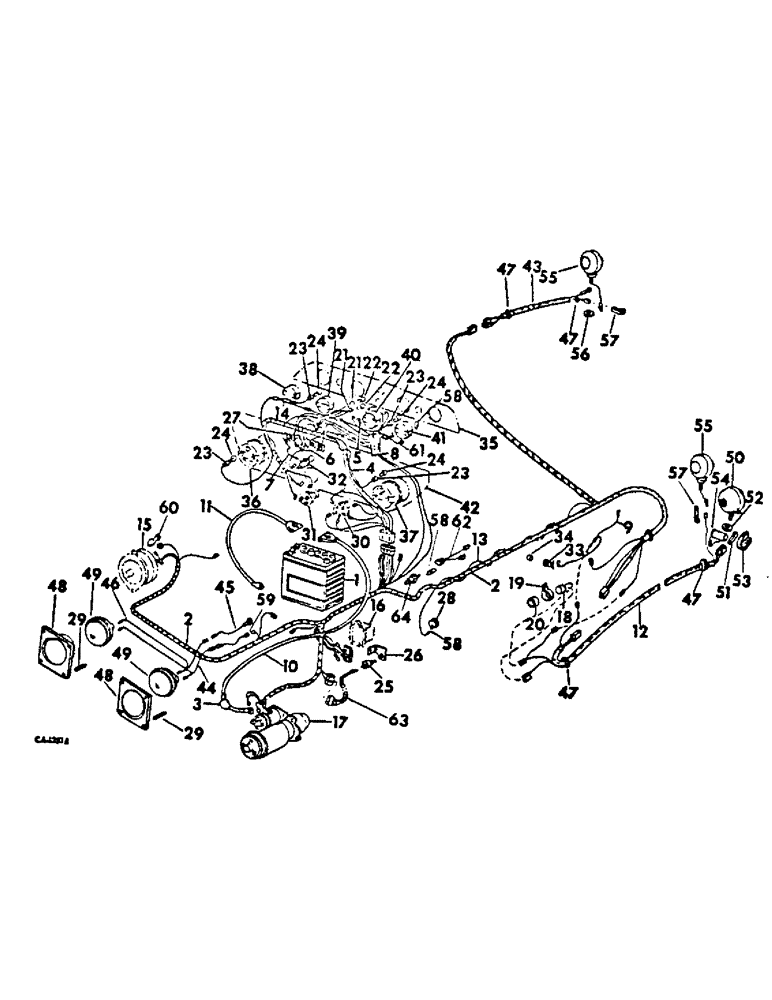

Запчасти Case IH 2400 (08-20) - ELECTRICAL, STARTING AND LIGHTING (06) - ELECTRICAL

1

538976R1

BATTERY, Prestolite 2226X, 12 volt, replaces 395595R1

1шт.

2

529657R2

HARNESS

ASSY, main cable

1шт.

3

364910R1

BOOT

INSULATOR, terminal cover boot

1шт.

4

529659R2

HARNESS

ASSY, panel cable, consists of ref no. 61

1шт.

5

529660R1

CABLE

ASSY, junction block to charge indicator negative terminal

1шт.

6

529661R1

CABLE

ASSY, junction block to charge indicator positive terminal

1шт.

7

404530R1

CABLE

ASSY, junction, Serial Range: block-fuse

1шт.

8

404391R1

CABLE

ASSY, junction block to fuel gauge

1шт.

9

405229R1

CABLE

ASSY, parking brake ground

1шт.

10

529662R1

CABLE

W/BOOT, battery to solenoid switch

1шт.

11

529663R1

CABLE

ASSY, Serial Range: battery-ground

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .074

1шт.

12

529668R2

HARNESS

CABLE ASSY, LH fender

1шт.

13

404531R1

CABLE

oil pressure switch junction, synchromesh transmission tractors

1шт.

14

534821R1

CABLE ASSY, instrument light junction, hydrostatic drive tractors

1шт.

15

ALTERNATOR-GENERATOR, for components, see list of parts under details of alternator generator

1шт.

16

VOLTAGE REGULATOR, refer to alternator generator listing

1шт.

17

1108394

MOTOR, cranking, Delco Remy, 403299R91, for components, see list of parts under details of cranking motor

1шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

120381

WASHER

3/8 C-Z light lock

1шт.

120622

NUT,#8-32

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

18

394132R91

FLASHER UNIT

FLASHER, warning light

1шт.

19

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

20

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

21

537804R1

SOCKET

ASSY, parking brake and trans oil pressure

2шт.

22

9417863

BULB,C2F, #1895, 14V

LIGHT, no. 1895, 12 volt

2шт.

23

537803R1

SOCKET

ASSY, instrument light, 3 used w/synchromesh transmission tractors, 4 used w/hydrostatic drive tractors

1шт.

24

9417863

BULB,C2F, #1895, 14V

LIGHT, no. 1895, 12 volt, 3 used w/synchromesh transmission tractors, 4 used w/hydrostatic drive tractors

1шт.

25

121629C1

IGNITION SWITCH

SWITCH ASSY, neutral starting, replaces 382728R91

1шт.

26

533859R1

BRACKET

neutral starting switch

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

27

378336R91

BLOCK

ASSY, junction

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

109084

NUT,1/4"-20, G5

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

28

529796R1

IGNITION SWITCH

SWITCH ASSY, transmission oil pressure, 454 synchromesh transmission tractors and 2400 series A tractors without draft control or forward and reverse

1шт.

28

376855R92

SWITCH

transmission oil pressure, 454 hydrostatic drive tractors, 2400 series A hydrostatic drive tractors and 2400 series A synchromesh transmission tractors with draft control

1шт.

29

528533R1

SPRING

headlight

8шт.

30

SWITCH ASSY, lighting, refer to engine controls and switches listing

1шт.

31

SWITCH ASSY, ignition key, refer to engine controls and switches listing

1шт.

32

HOUSING ASSY, fuse, refer to engine controls and switches listing

1шт.

33

404352R1

SWITCH

ASSY, park brake warning light, replaces 529461R91

1шт.

34

534351R1

COVER

warning light switch

1шт.

35

PANEL, instrument face, refer to instrument panel and gauges listing, group 11

1шт.

36

SPEEDOMETER, refer to instrument panel and gauges listing, group 11

1шт.

37

TACHOMETER, refer to instrument panel and gauges listing, group 11

1шт.

38

INDICATOR ASSY, heat, refer to instrument panel and gauges listing, group 11

1шт.

39

GAUGE ASSY, oil pressure indicator, refer to instrument panel and gauges listing, group 11

1шт.

40

GAUGE ASSY, charge indicator, refer to instrument panel and gauges listing, group 11

1шт.

41

GAUGE ASSY, fuel, refer to instrument panel and gauges listing, group 11

1шт.

42

PANEL ASSY, instrument, refer to instrument panel and gauges listing, group 11

1шт.

43

529669R2

HARNESS

CABLE ASSY, RH fender

1шт.

44

404420R1

CABLE ASSY, headlight junction, will work for 529670R1, for service replacement also furnish one cable 405228R1

1шт.

45

404421R1

CABLE

ASSY, headlight ground

1шт.

46

404422R1

CABLE

ASSY, ground and headlight junction

1шт.

47

144227

SPIDER, REEL

fender cables

4шт.

48

537013R1

HOUSING

headlight, replaces 528532R1

2шт.

529671R2

SCREW

10-24 x 2-1/4 C-Z ov-hd cr-rec mach

8шт.

66327C1

WASHER

grille screen retainer

4шт.

537014R1

INSERT

headlight housing

8шт.

49

373662R91

LAMP

HEADLIGHT, sealed beam

2шт.

50

377102R91

NO LONGER SERVICED

LIGHT ASSY, sealed beam combination, only serviceable items are bulb 455490 and sealed beam 371461R92

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

51

377105R1

CONNECTOR, ELEC

CONNECTOR, combination rear and tail light

1шт.

52

365503R1

SPACER

combination rear and tail light

1шт.

53

350920R1

CLAMP

combination rear and tail light

1шт.

54

529672R1

BRACKET

ASSY, combination rear light

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

55

394129R91

LIGHT

ASSY, flashing warning, for complete light assy, furnish 67538C91, only serviceable items are lens, amber 899280R1 or 405532R1, red 899279R1 and lamp 9417866

2шт.

120371

NUT,1/2"-20, G5

2шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

1/2 C-Z ext-tooth lock

2шт.

55

67538C91

HEADLAMP

LIGHT ASSY, flashing warning, will work for 394129R91, only serviceable item is lamp 9417866

1шт.

120371

NUT,1/2"-20, G5

2шт.

135629

GATHERING CHAIN

1/2 C-Z ext-tooth lock

2шт.

56

394262R1

WASHER

GASKET, flashing warning light, used with light 394129R91

2шт.

57

376749R1

BODY

CONNECTOR, flashing warning light

2шт.

58

384396R1

SPADE TERMINAL,Male

TERMINAL, oil pressure and temperature switch

3шт.

59

405228R1

CABLE

ASSY, harness to headlight junction

1шт.

60

399470R1

BOOT

INSULATOR, terminal cover boot

1шт.

61

145510

FUSE,1 Amp, Type 3AG

cartridge type AGC-1, 1-1/4 long

1шт.

61

149559

FUSE, cartridge type AGA-1, 5/8 lonc 1 Amp, Type 1AG

1шт.

62

534820R2

CABLE ASSY, warning light junction, hydrostatic drive tractors

1шт.

63

539462R1

HARNESS, 2400 series A hydrostatic drive tractors with foot controls

1шт.

289862C1

CABLE TIE,3/16" x 7"

STRAP

1шт.

64

65425C1

SWITCH

ASSY, oil temperature, hydrostatic drive tractors

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.
