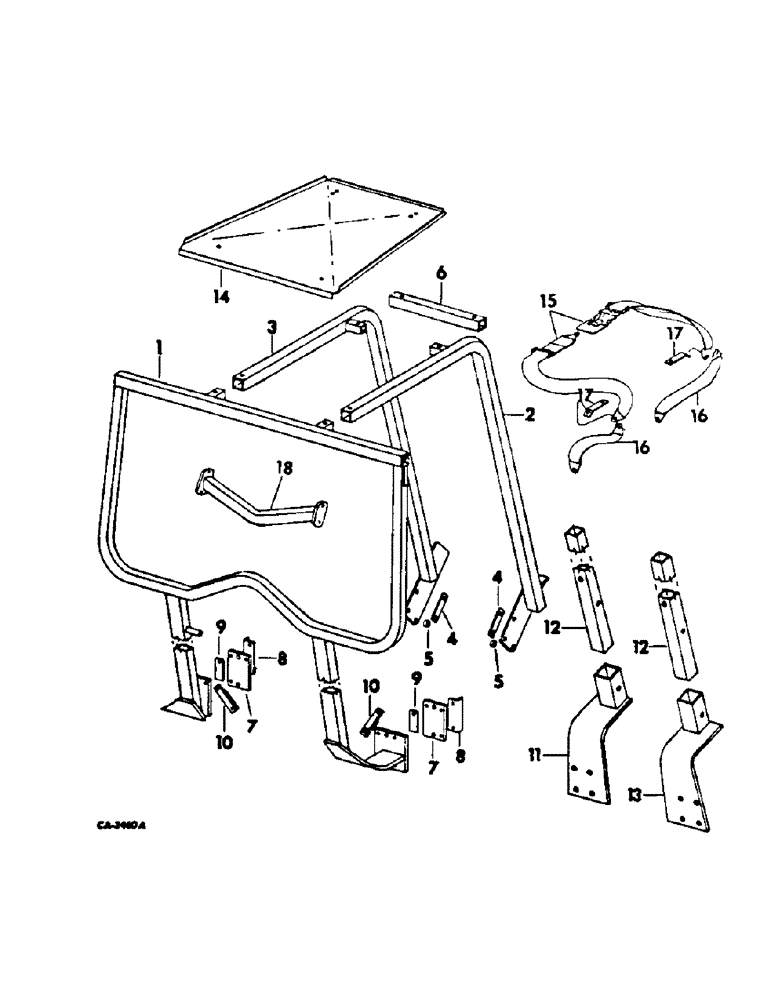

Запчасти Case IH 2400 (13-09) - SUPERSTRUCTURE, PROTECTIVE FRAME AND SEAT BELT (05) - SUPERSTRUCTURE

ATTACHMENT, protective frame, 537296R92, see note, tractors with 2050A loader and tractors with 1550 or 1850 loader also order completing package 68409C91, consists of all parts w/hardware marked unit A, light harness 66064C1 and product graphics

1шт.

ATTACHMENT, protective frame, 66343C92, see note, 2400 series A lo-boy tractors with 2050A loader, consists of all parts w/hardware marked unit B, light harness 66064C1, wheel spacer hub 66341C1 and product graphics

1шт.

ATTACHMENT, protective frame, 66782C91, see note, tractors with 2050A loader and 3122A backhoe, consists of all parts w/hardware marked unit C, LH fender 67154C1 and product graphics

1шт.

ATTACHMENT, seat belt, 539619R91, consists of all parts w/hardware marked unit D

1шт.

ATTACHMENT, protective frame canopy, 66917C91, consists of all parts w/hardware marked unit E, when canopy is ordered tractor must also be equipped with exhaust extension and clamp

1шт.

COMPLETING PACKAGE, protective frame, 68409C91, 454 tractors with 1550 or 1850 loader, consists of all parts w/hardware marked unit F

1шт.

1

FRAME ASSY, rear, units A, B and C, not serviced separately, order frame attachment

1шт.

380575R2

SCREW,Hex, 5/8" - 11 x 8.80", Gr 8

5/8-11 x 8.8 hex-hd type 8, 8 used with unit B, 6 used with unit C

1шт.

21434R1

NUT,5/8"-11, G8

5/8-11 hex. zn type 8, 8 used with unit B, 6 used with unit C

1шт.

23702R1

BOLT,Hex, 3/4" - 10 x 9", Gr 8

SCREW, 3/4-10 x 9 hex-hd cap, unit A

4шт.

22049R1

NUT,3/4"-10, G8

3/4-10 C-Z hex. type 8, unit A

4шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 zn hex-hd, unit C

2шт.

120384

WASHER,1/2"

LOCK, , Unit C 1/2"

2шт.

2

LEG ASSY, RH front, units A, B and C, not serviced separately, order frame attachment

1шт.

21457R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

SCREW, 3/4-10 x 2-1/4 zn hex-hd

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

3

LEG ASSY, LH front, units A, B and C, not serviced separately, order frame attachment

1шт.

21457R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

SCREW, 3/4-10 x 2-1/4 zn hex-hd

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

4

537308R1

PLATE

spacer, units A, B and C

2шт.

5

537309R1

SPACER

units A, B and C

2шт.

6

528274R2

BAR, front cross, units A, B and C

1шт.

20906R1

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 8

SCREW, 5/8-11 x 3-1/4 znd hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

21434R1

NUT,5/8"-11, G8

5/8-11 C-Z hex. type 8

4шт.

7

66058C2

PLATE, backing, units A and B

2шт.

8

66062C1

PLATE

mounting, units A and B

2шт.

9

66063C1

DECAL

SHIM, units A and B

4шт.

10

PLATE ASSY, mounting, units A and B, not serviced separately, order frame attachment

2шт.

11

BRACKET ASSY, LH mounting, unit F, not serviced separately, order completing package

1шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2-13 x 1-3/4 znd hex-hd cap type 8

4шт.

21330R1

NUT,1/2"-13, G8

1/2-13 znd hex. type 8

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

12

TUBE, connector, unit F, not serviced separately, order completing package

2шт.

13

BRACKET ASSY, RH mounting, unit F, not serviced separately, order completing package

1шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2-13 x 1-3/4 znd hex-hd cap type 8

4шт.

21330R1

NUT,1/2"-13, G8

1/2-13 znd hex. type 8

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

14

66797C1

TOP

CANOPY, unit E

1шт.

432487

HOLE PLUG BUTTON,11/16"

PLUG, 11/16 button

2шт.

217459

SUPPORT

WASHER, 21/32 x 2 x 11 ga

4шт.

15

537339R1

SAFETY BELT

SAFETY BELT, Units A, B and C

1шт.

404911C1

BOLT

seat belt anchor

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

24513R1

NUT,7/16"-20, G8

7/16-20 znd hex. type 8

2шт.

15

702248C3

BELT

SAFETY BELT, Unit D

1шт.

344096C3

BOLT

BOLT, seat belt anchor

2шт.

24513R1

NUT,7/16"-20, G8

7/16-20 znd hex. type 8

2шт.

16

539258R1

SAFETY BELT

SAFETY BELT, Retainer, Units A, B and C

2шт.

404911C1

BOLT

seat belt anchor

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

24513R1

NUT,7/16"-20, G8

7/16-20 znd hex. type 8

2шт.

17

539259R1

CLIP

seat belt anchor, units A, B and C

2шт.

18

TUBE ASSY, center, unit C, not serviced separately, order frame attachment

1шт.

432695R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

SCREW, 5/8-11 x 1-3/4 hex-hd zn type 8

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

21434R1

NUT,5/8"-11, G8

5/8-11 hex. zn type 8

4шт.

70773C1

DECAL

PRODUCT GRAPHIC, seat belt and ROPS caution instruction

1шт.

65982C1

DECAL

PRODUCT GRAPHIC, ROPS caution instructions, keep hand clear

1шт.

70571C1

DECAL

PRODUCT GRAPHIC, ROPS caution instructions

1шт.
