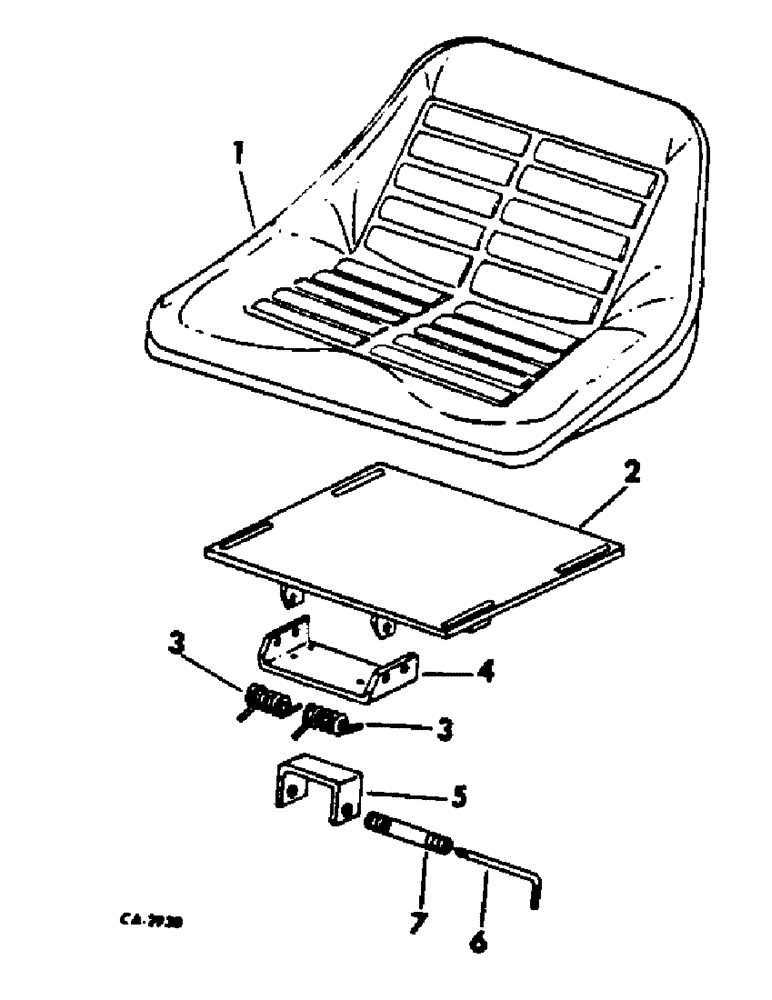

Запчасти Case IH 2400 (13-08) - SUPERSTRUCTURE, BACKHOE SEAT AND SEAT SUPPORT (05) - SUPERSTRUCTURE

1

528844R1

SEAT

ASSY

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SCREW, 5/16-18 x 7/8 znd hex-hd cap

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .065 znd

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

546647R1

SUPPORT ASSY, seat

1шт.

625326R1

PIN

3/8 x 6 std hd

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

3

15068EB

SPRING

seat torsion

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051

1шт.

4

477567R1

BRACKET, seat

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

5/16"-18 x 1-1/4" znd hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

5

484481R1

BRACKET, seat lock

1шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4-20 x 3/4 znd pan-hd slt

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

6

484482R1

ROD, seat latch handle

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 23/16 x .051

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

7

359109R2

VALVE SPRING

SPRING

1шт.
