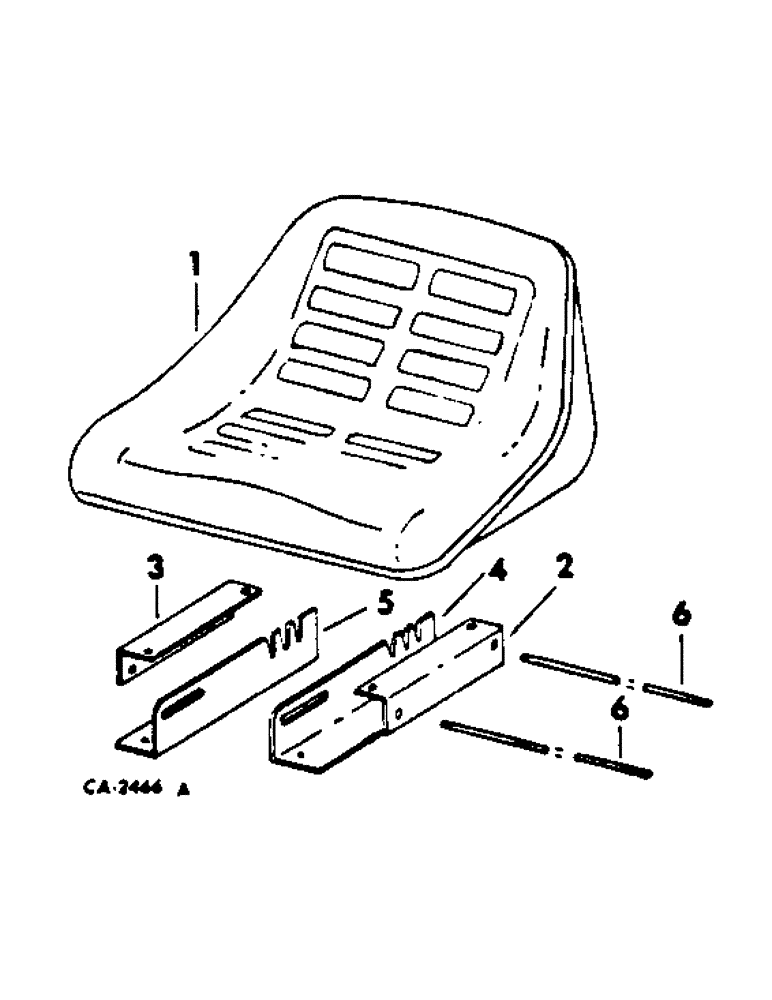

Запчасти Case IH 2400 (13-06) - SUPERSTRUCTURE, UPHOLSTERED SEAT (05) - SUPERSTRUCTURE

1

528844R1

SEAT

ASSY

1шт.

2

537990R2

ANGLE, seat support rail LH

1шт.

3

537991R1

ANGLE, seat support rail RH

1шт.

4

537608R2

SUPPORT, seat angle LH

1шт.

5

537609R2

SUPPORT, seat angle RH

1шт.

6

26134R1

PIN, 3/8 x 1/4 headed seat mounting, replaces 537610R1

1шт.

177923

COTTER PIN

1/8" x 3/4"

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 znd hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

4шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 131/6 x .051 C-Z

2шт.

22871R1

SPACER, 3/8 x 7/16 pipe, used with rod 537610R1

1шт.
