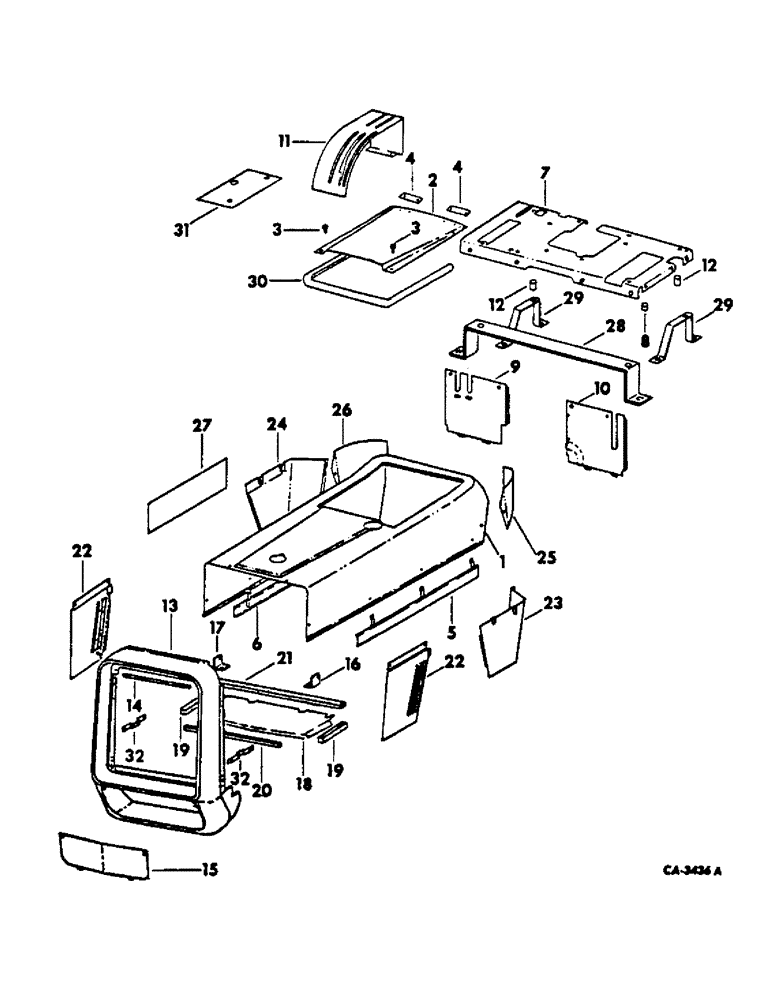

Запчасти Case IH 2400 (13-02) - SUPERSTRUCTURE, HOOD AND PANELS (05) - SUPERSTRUCTURE

1

401953R1

HOOD

ASSY, tractors w/vertical exhaust

1шт.

1

401922R1

SPARE PART ASSY, tractors w/underslung exhaust

1шт.

534458R1

NUT

10-24 hex.

6шт.

381052R1

BOLT,Sl Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16-18 C-Z hex-washer-hd cap

6шт.

3479

WASHER,7/32" x 9/16" x .060"

7/32 x 9/16 x 16 ga.

6шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

Floating

2шт.

2

401933R11

COVER

W/2 SCREW 389872R1 AND 2 WASHER 376787R1, rear hood, optional w/cover 3113425R1

1шт.

2

3113425R1

COVER

Rear hood, optional w/cover 401933R11

1шт.

3

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

2шт.

376787R1

WASHER

2шт.

4

406698R1

STRIP

Rear hood cover retainer

2шт.

443-1108

SCREW,Cross Flat Hd, #10-24 x 1/2"

10-24 x 5/8 cr-rec-f-hd mach (Replaces 147791) (Replaces 155937 )

4шт.

106497

LOCK WASHER,#10

4шт.

110633

NUT,#10-24

4шт.

5

529568R1

PANEL

ASSY, lower hood LH

1шт.

157728

SCREW

1/4-20 x 5/8 C-Z cr-rec-truss hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

6

529569R1

PANEL

ASSY, lower hood RH

1шт.

157728

SCREW

1/4-20 x 5/8 C-Z cr-rec-truss hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

7

401937R5

SPARE PART ASSY, rear top

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

5шт.

120368

NUT,5/16"-24, G5

5шт.

8

401941R1

SPACER

Mounting, short, 454 tractors, 2400 series A tractors with serial no. 100003 and below and 2400 series A tractors with draft control and serial no. 100004 and above

2шт.

9

527856R2

SPARE PART ASSY, rear vertical RH

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1/4-20 x 5/8 znd hex-hd cap

2шт.

10

401942R2

SPARE PART ASSY, rear vertical LH, synchromesh transmission tractors and 2400 series A hydrostatic drive tractors w/hand controls

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1/4-20 x 5/8 znd hex-hd cap

2шт.

10

537961R3

SPARE PART ASSY, rear vertical LH, 2400 series A hydrostatic drive tractors w/foot control

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1/4-20 x 5/8 znd hex-hd cap

2шт.

11

400088R3

SPARE PART ASSY, hitch control lever, tractors with draft control and/or independent PTO

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

2шт.

12

401940R2

SPARE PART Mounting

2шт.

13

402400R3

HOUSING

ASSY, radiator grille, all tractors except International 2400 series A tractors w/cast I beam front axle

1шт.

13

535769R1

SPARE PART ASSY, radiator grille, International 2400 series A tractors w/cast I beam front axle

1шт.

102635

NUT,3/8"-16, G5

2шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

Floating cage

4шт.

14

530854R1

MOLDING

Air baffle edge

1шт.

15

402406R1

PANEL

ASSY, lower radiator grille

1шт.

157728

SCREW

1/4-20 x 5/8 C-Z cr-rec-truss hd mach

2шт.

16

406696R1

BRACKET

Grille housing angle LH

1шт.

17

406697R1

BRACKET

Grille housing angle RH

1шт.

180144

RETAINER

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

2шт.

18

402410R1

BAFFLE

Radiator lower

1шт.

19

389838R1

FOAM

GASKET, radiator baffle lower

2шт.

20

370181R1

GASKET

Radiator baffle

1шт.

21

394788R1

GASKET

GASKET, radiator baffle

1шт.

22

402411R2

SPARE PART ASSY, grille side LH

1шт.

22

402412R2

PANEL

ASSY, grille side RH

1шт.

172439

SPACER

SCREW, 1/4-28 x 1/2 C-Z slt-hes-hd tap.

2шт.

103319

LOCK WASHER,1/4"

1шт.

109084

NUT,1/4"-20, G5

1шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 C-Z

1шт.

23

402418R2

PANEL

LH

1шт.

544363R1

SCREW

1/4-20 x 7/16 hex-washer-hd cap

3шт.

24

402419R2

PANEL

RH

1шт.

544363R1

SCREW

1/4-20 x 7/16 hex-washer-hd cap

3шт.

25

402423R1

PANEL

LH

1шт.

26

402424R1

PANEL

RH

1шт.

27

65125C1

SHIELD

Heat, replaces 534308R1, diesel engine tractors w/vertical exhaust

1шт.

534458R1

NUT

10-24 hex. lock, used w/shield 534308R1

2шт.

3479

WASHER,7/32" x 9/16" x .060"

7/32 x 9/16 x 16 ga, used w/shield 534308R1

2шт.

28

67262C1

BRACKET

Top cover front, 2400 series A tractors w/serial no. 100004 and above

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

29

67263C1

BRACKET

Top cover rear, 2400 series A tractors w/serial no. 100004 and above

2шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

30

3113428R1

SPARE PART Rear hood cover, 58 inches, used w/rear hood cover 3113425R1 (Replaces 3113428)

1шт.

CHECK DLR LOCATOR. JBEDFORD 3/2/98.

1шт.

31

67782C1

PLATE

Hitch control lever cover, tractors w/out draft control and/or independent PTO

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

2шт.

32

402199R1

SUPPORT

SPARE PART Radiator and grille housing

2шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

2шт.
