Запчасти Case IH 2400 (07-44[1]) - DRIVE TRAIN, DRIVE CONTROL VALVE (04) - Drive Train

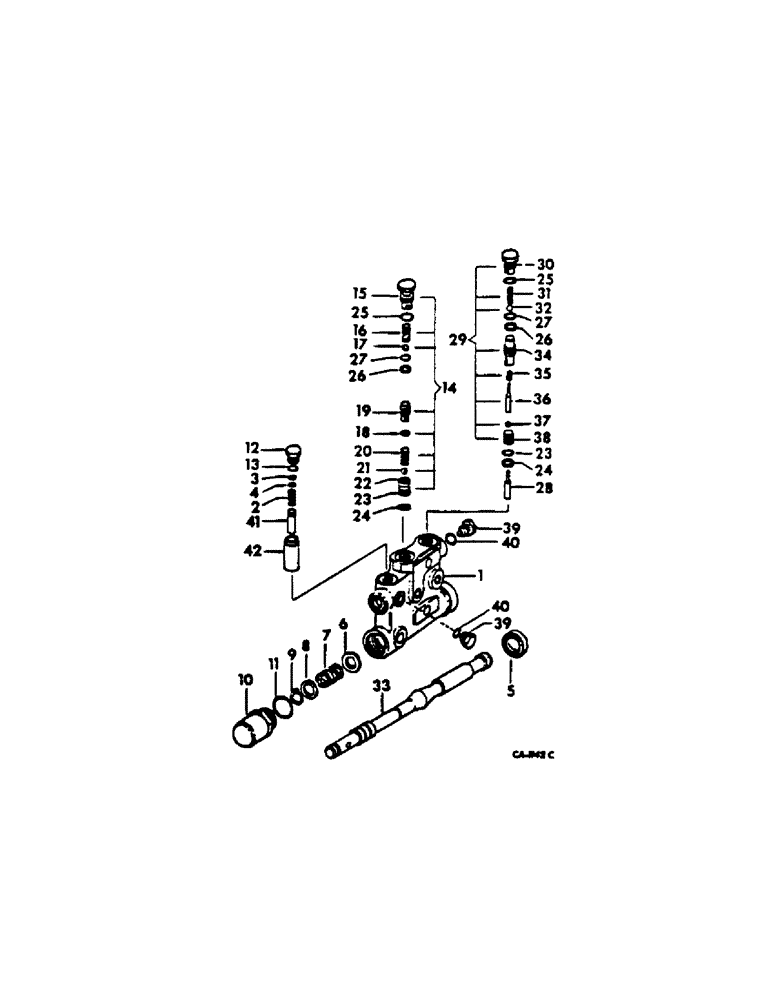

Схема запчастей Case IH 2400 - (07-44[1]) - DRIVE TRAIN, DRIVE CONTROL VALVE (04) - Drive Train
6
23
41
4
3
27
21
10
14
30
33
9
11
25
39
5
16
12
32
28
29
2
8
7
20
17
38
31
18
37
1
26
25
24
13
34
42
39
15
36
35
23
27
26
40
24
22
40
19

Артикул

Название

Примечание

Количество

1

BODY ASSY, drive control, not serviced separately, order valve assy 401852R92

1шт.

2

400454R1

SPRING

valve

1шт.

3

875777R1

SNAP RING,#25, Ext

Ring, Snap, #25, Ext

1шт.

4

401291R1

SPRING WASHER

anti-coast valve pin

1шт.

5

381232R91

OIL SEAL

oil

1шт.

6

398693R1

WASHER

1шт.

7

398733R1

SPRING

drive control valve centering

1шт.

8

398694R1

WASHER

1шт.

9

398700R1

SNAP RING,#56, .524", Ext

RING, retaining

1шт.

10

398692R1

PLUG

drive control valve

1шт.

11

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube

1шт.

12

533567R1

PLUG

9/16-18 str-thd o-ring boss

1шт.

13

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

14

404497R3

VALVE

ASSY, B capsule, less ref nos 23, 24, 26 & 27

8шт.

15

BODY, check valve seat, not serviced separately, order valve assy 404497R3

1шт.

16

SPRING, upper ball check, not serviced separately, order valve assy 404497R3

1шт.

17

BALL, 5/16 dia., not serviced separately, order valve assy 404497R3

1шт.

18

WASHER, 1/8 x 1/4 x .017, not serviced separately, order valve assy 404497R3

1шт.

19

BODY, check valve seat, not serviced separately, order valve assy 404497R3

1шт.

20

SPRING, low pressure relief, not serviced separately, order valve assy 404497R3

1шт.

21

BALL, 7/32 dia., not serviced separately, order valve assy 404497R3

1шт.

22

SEAT, relief valve, not serviced separately, order valve assy 404497R3

1шт.

23

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 x 1/16

2шт.

24

398699R1

BACK-UP RING

RING, back-up

2шт.

25

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

2шт.

26

383004R1

BACK-UP RING,Split, 13.16mm ID x 15.9mm OD x 1.32mm Thk

RING, backup

2шт.

27

370920R1

O-RING,1/2" ID

1/2 x 5/8 x 1/16

2шт.

28

398696R1

PIN

lower valve lift

1шт.

29

404496R3

VALVE

ASSY, A capsule, less ref nos 23, 24, 25, 26, 27 and 28

1шт.

30

BODY, check valve, not serviced separately, order valve assy 404496R3

1шт.

31

SPRING, check valve, not serviced separately, order valve assy 404496R3

1шт.

32

BALL, 5/16 dia., not serviced separately, order valve assy 404496R3

1шт.

33

SPOOL, not serviced separately, order valve assy 401852R92

1шт.

34

BODY, check valve seat, not serviced separately, order valve assy 404496R3

1шт.

35

SPRING, lower check valve, not serviced separately, order valve assy 404496R3

1шт.

36

PIN, upper valve lift, not serviced separately, order valve assy 404496R3

1шт.

37

BALL, 1/4 dia., not serviced separately, order valve assy 404496R3

1шт.

38

SEAT, lower check valve, not serviced separately, order valve assy 404496R3

1шт.

39

9410356

PLUG

7/16-20 str-thd o-ring boss

3шт.

40

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

3шт.

41

PIN, anti-coast valve, not serviced separately, order valve assy 401852R92

1шт.

42

PIN, anti-coast valve spool, not serviced separately, order valve assy 401852R92

1шт.

Выбрано товаров: 42
