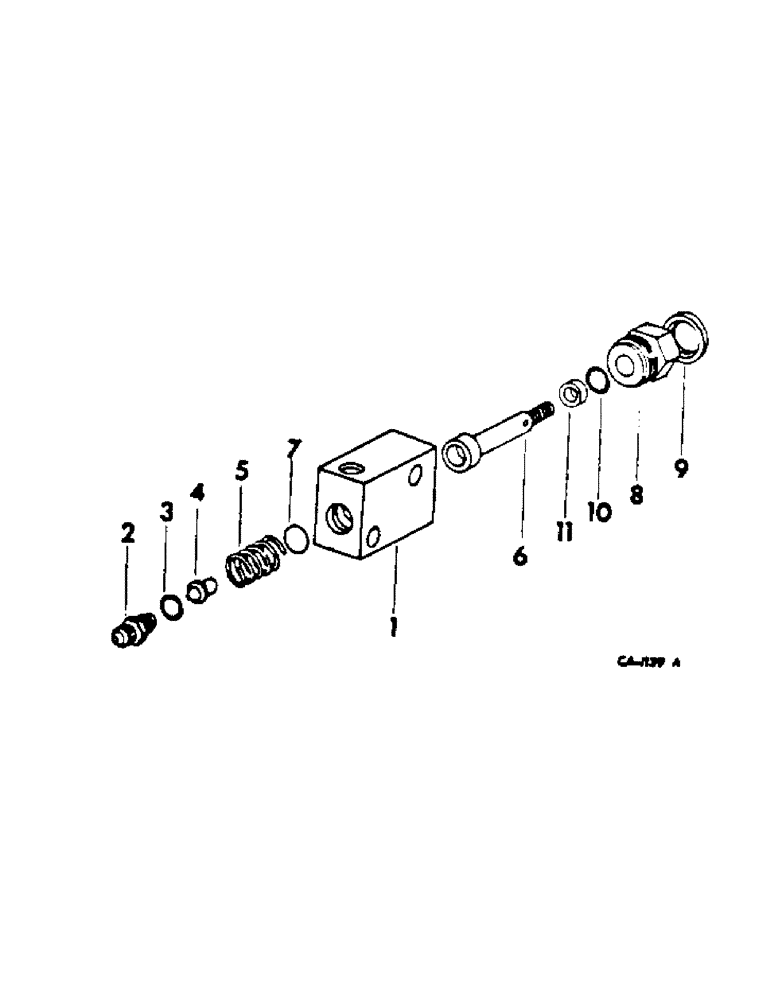

Запчасти Case IH 2400 (07-42[1]) - DRIVE TRAIN, FOOT-N-INCH AND DECELERATOR VALVE (04) - Drive Train

404211R91

VALVE

ASSY, decelerator

1шт.

1

BODY, valve, not serviced separately, furnish valve assy

1шт.

2

398709R1

SEAT

poppet valve

1шт.

3

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

4

398710R1

VALVE POPPET

VALVE, poppet

1шт.

5

398731R1

SPRING

valve

1шт.

6

398708R1

STOP

valve

1шт.

7

530575R91

SHIM KIT

PACKAGE, relief valve shim service, will work for 401293R91, consists of (4) shim .005 530571R1 (NSS), (4) shim .007 530572R1 (NSS), (2) shim .020 530573R1 (NSS), (1) shim .042 530574R1 (NSS)

1шт.

8

398707R1

GUIDE

valve spring stop

1шт.

9

398701R91

OIL SEAL,8.26mm ID x 19.15mm OD x 6.5mm Thk

oil

1шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

11

404212R1

SLEEVE

R, valve stop, used w/decelerator valve 404211R91

1шт.
