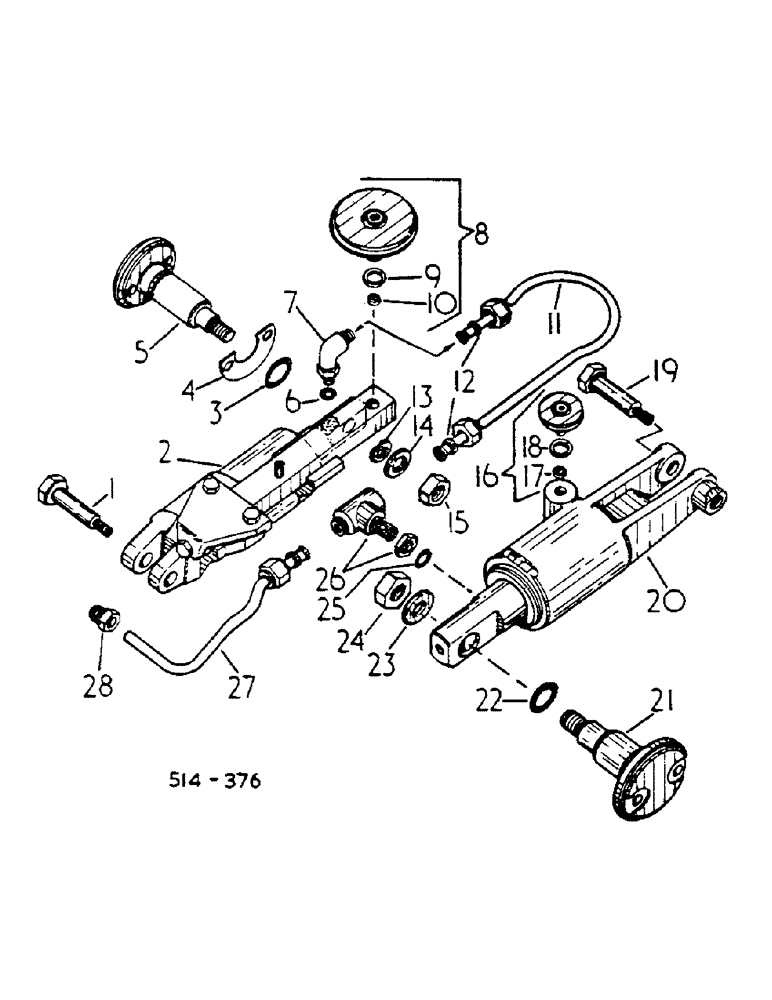

Запчасти Case IH 2400 (07-11) - MOTOR AND PUMP SERVO CYLINDER W/CONNECTIONS (04) - Drive Train

1

396119R1

BOLT,Shldr, Hex, 1/2" - 13 x 2.38"

HEX HD SHOULDER

1шт.

2

CYLINDER ASSY, PUMP SERVO, FOR DETAILS SEE LIST OF PARTS UNDER DETAIL PUMP SERVO CYLINDER

1шт.

3

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 X 1 X 3/32

1шт.

4

401036R1

PACKAGE, PUMP SERVO TRUNNION SHIM, CONSISTS OF (1) SHIM .005", (1) SHIM .007" AND (1) SHIM .020"

1шт.

5

401035R1

TRUNNION

PUMP SERVO

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

7

401048R1

ELBOW

ADJ FLEX 5/16 TUBE, PUMP SERVO

1шт.

8

401049R92

PLUG

PUMP CYL CONTROL W/RING, AGRICULTURAL

1шт.

8

530027R92

PLUG

PUMP CYL CONTROL W/RING, INDUSTRIAL

1шт.

9

403989R1

SPRING WASHER

SPRING

1шт.

10

396109R1

RING

1шт.

11

401047R11

TUBE ASSY.

PUMP SERVO

1шт.

12

134630H1

SLEEVE

RUBBER FOR 5/16 OD TUBE

1шт.

13

401040R1

SPRING WASHER

SPRING

1шт.

14

401401R1

SPARE PART WASHER, PUMP SERVO TRUNNION

1шт.

25

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5/16 OD tube, Motor servo tee

1шт.

15

25-118

NUT,1/2"-20, G5

1/2-20 HEX

1шт.

16

530027R92

PLUG

MOTOR CYLINDER CONTROL W/RING

2шт.

17

396109R1

RING

1шт.

18

403989R1

SPRING WASHER

SPRING

1шт.

19

396119R1

BOLT,Shldr, Hex, 1/2" - 13 x 2.38"

HEX HD SHOULDER

1шт.

20

CYLINDER ASSY, MOTOR SERVO, FOR DETAILS SEE LIST OF PARTS UNDER DETAIL MOTOR SERVO CYLINDER

1шт.

21

401043R1

TRUNNION

MOTOR SERVO

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

22

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1-1/16 X 1-1/4 X 3/32

1шт.

23

401044R1

WASHER

MOTOR SERVO TRUNNION

1шт.

24

425-1110

NUT,5/8"-18, G5

1шт.

26

401046R1

TEE

ADJ FLEX 5/16 TUBE, MOTOR SERVO

1шт.

27

401045R11

TUBE ASSY.

MOTOR SERVO SUPPLY

1шт.

28

222-503

TUBE NUT,1/2"-20

1/2-20 HI-DUTY FITTING

1шт.

6

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 OD tube, Pump servo

1шт.
