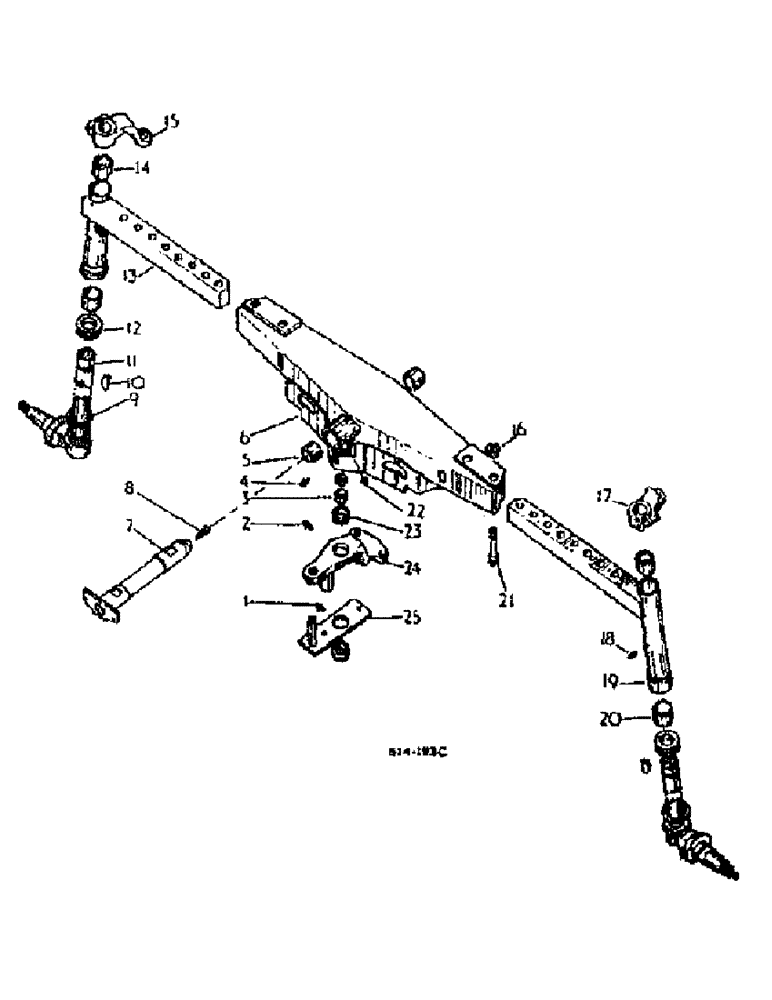

Запчасти Case IH 2400 (14-10) - ADJUSTABLE FRONT AXLE, STRAIGHT Suspension

1

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

1шт.

3

405574R1

BUSHING

SUPPORT

2шт.

3

376160R1

BUSHING,25.4mm ID x 28.7mm OD x 19.3mm L

SUPPORT, OPTIONAL

1шт.

4

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

1/4 65 DEG ANGLE DRIVE TYPE

1шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

PIVOT

2шт.

6

69881R91

AXLE ASSY, FRONT

1шт.

6

527790R91

CENTER AXLE

ASSY, FRONT

1шт.

ON ORDERS FOR AXLE 527790R91, FURNISH AXLE 69881C91 TOGETHER W/SHAFT 539128R1, FITTING 273352 AND TWO SCREWS 179883

1шт.

7

539128R1

SHAFT ASSY.

FRONT AXLE PIVOT

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

8

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1/8-27 PIF 90 DEG ANGLE LUB

1шт.

9

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle felt

2шт.

10

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

11

405840R11

KNUCKLE JOINT

ASSY, STEERING

2шт.

11

67535C91

KNUCKLE

ASSY. STEERING

2шт.

MODEL 2400: 100089 AND AFTER

1шт.

12

405831R91

BEARING

STEERING KNUCKLE THRUST, OPTIONAL W/527295R91

2шт.

12

527295R91

THRUST BEARING,44.45mm ID x 68.4mm OD x 17.6mm W

STEERING KNUCKLE THRUST, OPTIONAL W/405831R91

2шт.

13

66720C92

EXTENSION ASSY, FRONT AXLE, RH, INDUSTRIAL TRACTORS, ADJUSTABLE, STRAIGHT

1шт.

13

67533C91

EXTENSION ASSY.

FRONT AXLE, RH, ADJUSTABLE, STRAIGHT

1шт.

14

376099R1

BUSHING

ADJUSTABLE FRONT AXLE, STRAIGHT

2шт.

15

67525C1

ARM

STEERING KNUCKLE, RH, ADJUSTABLE FRONT AXLE, STRAIGHT

1шт.

MODEL 454: 100675 AND AFTER

1шт.

MODEL 2400: 100089 AND AFTER

1шт.

15

527802R1

ARM

STEERING KNUCKLE, RH, ADJUSTABLE FRONT AXLE, STRAIGHT

1шт.

MODEL 454: UP TO 100674

1шт.

MODEL 2400: UP TO 100088

1шт.

102637

NUT,1/2"-13, G5

Adjustable front axle, straight

1шт.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

Adjustable front axle, straight

1шт.

16

405576R1

NUT

FRONT AXLE, ADJUSTABLE, STRAIGHT

4шт.

17

67524C1

ARM

STEERING KNUCKLE, LH, ADJUSTABLE FRONT AXLE, STRAIGHT

1шт.

MODEL 454: 100675 AND AFTER

1шт.

MODEL 2400: 100089 AND AFTER

1шт.

17

527801R1

ARM

SPARE PART STEERING KNUCKLE, LH, ADJUSTABLE FRONT AXLE, STRAIGHT

1шт.

MODEL 454: UP TO 100674

1шт.

MODEL 2400: UP TO 100088

1шт.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

Adjustable front axle, straight

1шт.

102637

NUT,1/2"-13, G5

Adjustable front axle, straight

1шт.

18

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

1/4 DRIVE TYPE STR LUB, ADJUSTABLE FRONT AXLE, STRAIGHT

2шт.

19

66719C92

EXTENSION ASSY, FRONT AXLE, LH, INDUSTRIAL TRACTORS, ADJUSTABLE, STRAIGHT

1шт.

19

67532C91

EXTENSION ASSY.

FRONT AXLE, LH, ADJUSTABLE, STRAIGHT

1шт.

20

376099R1

BUSHING

ADJUSTABLE FRONT AXLE, STRAIGHT

2шт.

21

405584R2

BOLT,Shldr, 3/4" - 16 x 4

Shoulder, Adjustable front axle, Straight

4шт.

22

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

Adjustable front axle, straight

1шт.

23

379748R1

BUSHING

ADJUSTABLE FRONT AXLE, STRAIGHT

2шт.

24

67499C91

ARM ASSY.

PS CENTRE, ADJUSTABLE FRONT AXLE, STRAIGHT

1шт.

MODEL 454: 100675 AND AFTER

1шт.

MODEL 2400: 100089 AND AFTER

1шт.

24

405585R11

ARM

ASSY, PS CENTRE, ADJUSTABLE FRONT AXLE, STRAIGHT

1шт.

MODEL 454: UP TO 100674

1шт.

MODEL 2400: UP TO 100088

1шт.

25

405580R11

BAR ASSY.

PS CYL, ADJUSTABLE FRONT AXLE, STRAIGHT

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

Adjustable front axle, Straight

2шт.

103323

LOCK WASHER,1/2"

Adjustable front axle, straight

2шт.

MODEL 454: UP TO 100010

1шт.

MODEL 2400: UP TO 100000

1шт.

67976C1

PLATE, LOCKING

STRIP STEERING CENTRE ARM, BOLT LOCK, ADJUSTABLE FRONT AXLE, STRAIGHT

1шт.

MODEL 454: 100011 AND AFTER

1шт.

MODEL 2400: 100001 AND AFTER

1шт.

405578R1

PLATE

FRONT AXLE PIVOT PIN LOCK, NOT ILLUSTRATED, Serial Range: -03867

1шт.

MODEL 2400 - INCLUDING UP TO 00549

1шт.

NLS

NO LONGER SERVICED

Not Illustrated, Serial Range: -03867

1шт.

MODEL 2400 - INCLUDING UP TO 00549

1шт.
