Запчасти Case IH 2400 (12-87) - COLD START Power

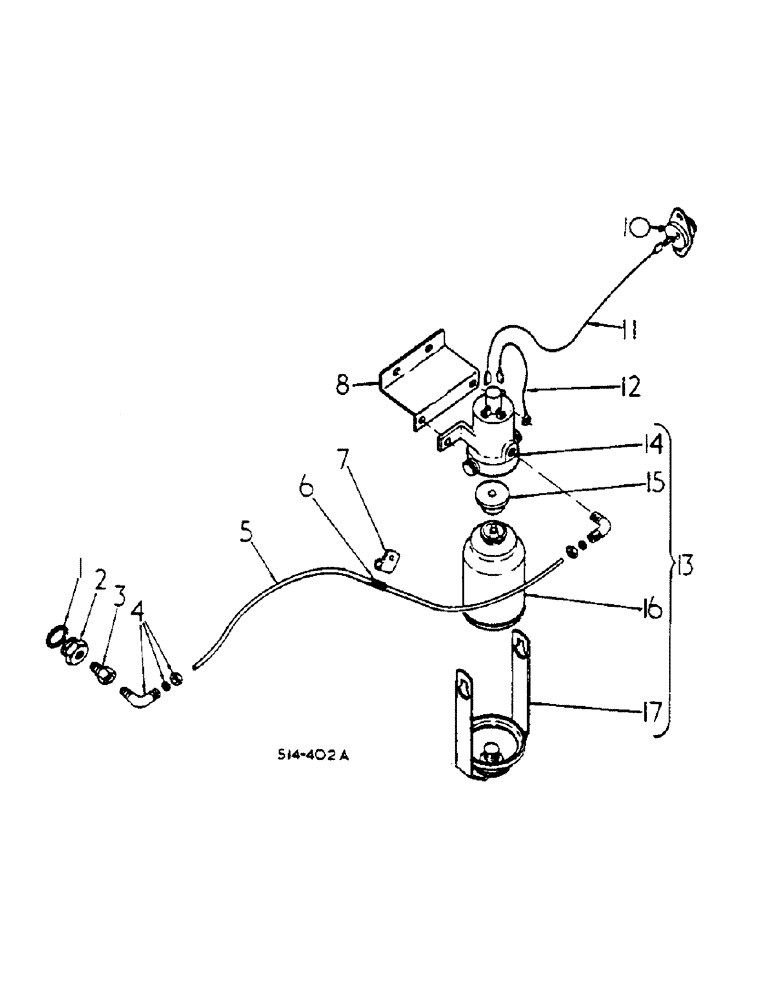

Схема запчастей Case IH 2400 - (12-87) - COLD START Power
12
1
5
11
6
15
7
8
4
3
16
17
14
13
10
2

Артикул

Название

Примечание

Количество

1

3116081R1

JET

ADAPTOR, ETHER NOZZLE

1шт.

2

933945R1

SEALING RING,M23 x 28 x 2.5

1шт.

3

269635R91

NOZZLE CAP

STARTING FLUID

1шт.

4

140304

ELBOW

1/8-27 90 DEG BALL SLEEVE TUBE

2шт.

5

3116080R1

PIPE

INJECTOR FEED

1шт.

6

3116374R1

SLEEVE

1шт.

7

3112817R1

CLAMP

SUPPORT

1шт.

8

535672R2

BRACKET

INJECTION MOUNTING

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

9

Not used

1шт.

10

397940R93

SWITCH

PUSH BUTTON ETHER

1шт.

436730

LOCK SCREW,Slotted Pan Hd, #10-24 x 3/8"

10-24 X 3/8 C-Z SLT PAN HD MC

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

11

3116375R1

CABLE ASSY.

SPARE PART ETHER SWITCH TO SOLENOIID

1шт.

12

3116503R1

CABLE

SPARE PART ETHER SOLENOID TO GROUND

1шт.

13

533231R92

SOLENOID

INJECTOR ASSY, ETHER, CONSISTS OF: REF. 14 - 17

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16-18 X 7/8 ZND HEX HD CAP

2шт.

80681

LOCK WASHER,5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

14

NSS

NOT SOLD SEPARAT

INJECTOR ASSY

1шт.

15

395686R1

GASKET

ETHER STARTING INJECTOR

1шт.

16

385064R91

FLUID

ETHER STARTING, 12 OZ CAN

1шт.

17

121851C1

RETAINER

ETHER FLUID CANNISTER

1шт.

535070R2

PRODUCT-GRAPHIC, LOWER INSTRUMENT PANEL

1шт.

Выбрано товаров: 24
