Запчасти Case IH 2400 (12-75) - FUEL INJECTION CONNECTIONS, BOSCH INJECTION C.R. PUMP, UP TO 454 AND 2400/027204 Power

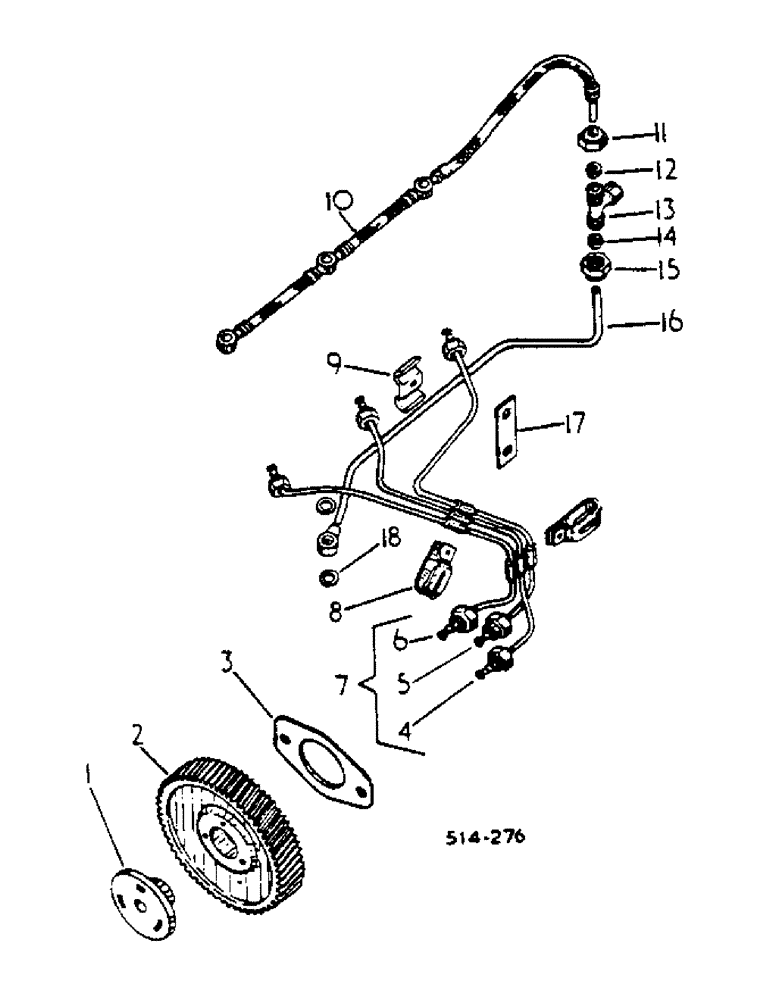

Схема запчастей Case IH 2400 - (12-75) - FUEL INJECTION CONNECTIONS, BOSCH INJECTION C.R. PUMP, UP TO 454 AND 2400/027204 Power
7
1
13
11
5
15
17
14
8
10
9
18
4
6
16
12
3
2

Артикул

Название

Примечание

Количество

1

3055067R1

HUB

GEAR INJECTION PUMP

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

8 5 X 19 X 25

3шт.

2

3056885R3

PINION

GEAR, INJECTION PUMP

1шт.

3

3055384R1

GASKET

FUEL INJECTION PUMP

1шт.

4

3144407R91

PIPE

TUBE, INJECTION CYLINDER 2 CPT

1шт.

5

3144409R91

PIPE

TUBE, INJECTION CYLINDER 3 CPT

1шт.

6

3144405R91

PIPE

TUBE, INJECTION CYLINDER 1 CPT

1шт.

7

3144404R91

INJECTION PIPE

SET OF 3 INJECTION, CPT

1шт.

8

3132766R1

CLAMP

PIPE

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

3052189R1

BELLEVILLE WASHER

LOCK

2шт.

109084

NUT,1/4"-20, G5

1шт.

9

3055386R1

CLAMP

CLIP, FUEL LINES

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

1шт.

10

3132826R1

LINE

PIPE, LEAK

1шт.

11

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

COUPLING

1шт.

12

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

CUTTING

1шт.

13

35539R1

UNION, SPECIAL TEE

1шт.

14

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

CUTTING

1шт.

15

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

COUPLING

1шт.

16

3144414R91

PIPE, OVERFLOW

1шт.

17

3132174R91

LINK FIXING FUEL LINE

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

3050221R1

LOCK WASHER

LOCK 3/8

1шт.

18

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

2шт.

Выбрано товаров: 28
