Запчасти Case IH 2400 (12-65) - FUEL INJECTION PUMP, C.A.V. INJECTION Power

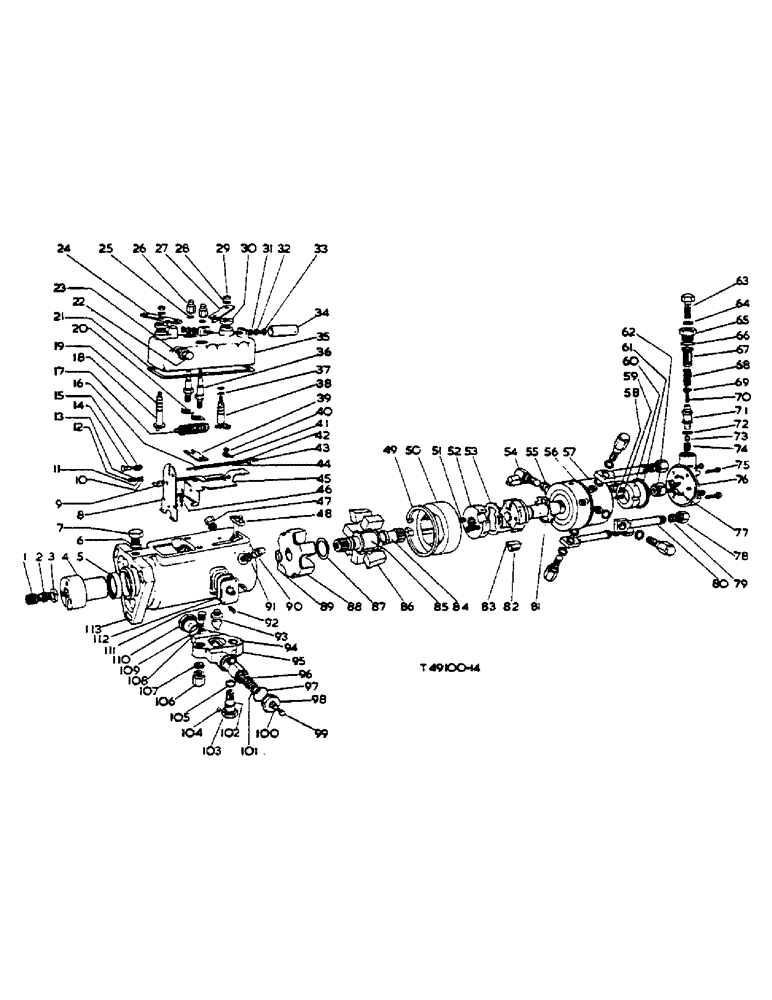

Схема запчастей Case IH 2400 - (12-65) - FUEL INJECTION PUMP, C.A.V. INJECTION Power
45
78
100
93
79
3
82
67
6
31
53
91
55
32
43
46
107
12
68
1
104
111
23
4
25
70
57
41
14
97
85
77
103
34
39
90
71
64
99
94
59
88
20
5
105
58
109
87
51
74
16
40
8
72
83
86
29
65
18
2
48
60
63
92
110
21
56
17
24
19
22
42
10
84
36
80
37
28
69
113
50
66
61
9
30
75
96
112
62
33
95
76
11
54
98
108
44
7
15
52
27
73
101
102
26
38
89
106
81
49
35
13
47

Артикул

Название

Примечание

Количество

3138780R91

PUMP

CPTE, FUEL INJECTION, DPA 3233 F 450

1шт.

3138781R91

SPARE PART CPTE, FUEL INJECTION, DPA 3233 F 460

1шт.

1

3078639R1

SPARE PART DRIVE SHAFT

1шт.

2

384767R1

SPRING WASHER

SPRING

1шт.

3

384768R1

WASHER

SUPPORT

1шт.

4

384769R1

HUB

DRIVE

1шт.

5

384770R91

SEAL

DRIVE HUB

1шт.

6

3043093R1

WASHER

1шт.

7

3111087R1

SPARE PART OUTLET

1шт.

8

3078643R1

SPARE PART GOVERNOR

1шт.

9

895981H1

BAR

SHUT-OFF

1шт.

10

384782R1

SPARE PART PIVOT BALL

1шт.

11

895974H1

WASHER

1шт.

12

895973H1

SPARE PART LOCKING

1шт.

13

384781R1

SPARE PART LINKAGE

1шт.

14

384796R1

GUIDE

IDLING SPRING

1шт.

15

3078652R1

SPARE PART IDLING

1шт.

16

384783R1

SPARE PART LINKAGE

1шт.

17

3078649R1

SPARE PART GOVERNOR, PUMP DPA 3233 F 450

1шт.

17

3078650R1

SPARE PART GOVERNOR, PUMP DPA 3233 F 460

1шт.

18

384791R1

SPARE PART T-OFF

1шт.

19

796020R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

SEAL

2шт.

20

384775R1

WASHER

TAB

2шт.

21

384771R1

GASKET

HOUSING

1шт.

22

3069754R1

SCREW

Vent

1шт.

23

3078655R1

WASHER

VENT BODY

2шт.

24

3078647R1

LEVER

SHUT-OFF

1шт.

25

3043102R1

SEALING WASHER

STUD

2шт.

26

3043101R1

NUT

STUD

2шт.

27

3043104R1

ARM

THROTTLE

1шт.

28

705380R1

SPARE PART SHAKEPROOF

2шт.

29

3105138R1

NUT

CONTROL LEVER

2шт.

30

384792R1

SPARE PART CAP, DUST

2шт.

31

3105139R1

WASHER

2шт.

32

3105138R1

NUT

2шт.

33

3078653R1

SCREW

ADJUSTING

2шт.

34

3064263R1

SLEEVE

LOCKING

1шт.

35

3078651R1

SPARE PART CONTROL

1шт.

36

384779R1

STUD

CONTROL COVER

2шт.

37

796020R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

SEAL

2шт.

38

384794R1

SHAFT

THROTTLE

1шт.

39

384774R1

PLATE

KEEP

1шт.

40

384777R1

SCREW

BRACKET

1шт.

41

3109745R1

WASHER

TAB

1шт.

42

384787R1

SPARE PART SPRING

1шт.

43

384784R1

NO LONGER SERVICED

HOOK, LINKAGE

1шт.

44

384785R1

SPRING

LINKAGE

1шт.

45

384776R1

SPARE PART CONTROL

1шт.

46

384773R1

SPRING

GOVERNOR ARM

1шт.

47

795970R1

BOLT,Locking, 5/16" - 24 x 1/2"

SCREW, HEAD LOCKING

1шт.

48

384788R1

VALVE

METERING, STANDARD SIZE

1шт.

48

384789R1

VALVE

METERING, OVERSIZE

1шт.

49

845836R1

SPARE PART RING

1шт.

50

796184R1

RING

CAM, PUMP DPA 3233 F 450

1шт.

50

795981R1

RING, CAM, PUMP DPA 3233 F 460

1шт.

51

795980R1

DRIVE SCREW,12 Pt Serr Flg, 5/16" - 24 x 25.50mm

DRIVE PLATE

2шт.

52

795979R1

PLATE

DRIVE

1шт.

53

795978R1

SPARE PART ADJUSTING TOP

1шт.

54

3109178R1

VALVE

STUD, FUEL CONNECTION

3шт.

3078675R1

SPARE PART VOLUME

3шт.

55

3043093R1

WASHER

CONNECTION

6шт.

56

795965R1

RING

SEAL, DISTRIBUTOR HEAD

1шт.

57

3078625R1

ROTOR

HEAD ASSY

1шт.

58

795964R1

WASHER

PLUG SCREW

1шт.

59

795963R1

SCREW, PLUGGING

1шт.

60

3078623R1

RING

TRANSFER PUMP

1шт.

61

3069749R1

RING

SEAL, TRANSFER PUMP

1шт.

62

384754R1

ROTOR

TRANSFER PUMP

1шт.

63

NOT APPLICABLE

1шт.

64

NOT APPLICABLE

1шт.

65

3078621R1

SPARE PART UNION, INLET

1шт.

66

3111081R1

WASHER

INLET

1шт.

67

3043084R1

FILTER

1шт.

68

795952R1

SPRING

RETAINING SLEEVE

1шт.

69

3078620R1

PLUG

REGULATING VALVE

1шт.

70

796185R1

SPRING

REGULATING

1шт.

71

3078619R1

CLIP

SLEEVE, REGULATING

1шт.

72

795948R1

WASHER

SLEEVE

1шт.

73

795946R1

PISTON

REGULATING

1шт.

74

795945R1

SPRING

PISTON RETAINING

1шт.

75

796231R1

SCREW

END PLATE

1шт.

76

3110089R92

PLATE

ASSY, END

1шт.

77

795959R1

BLADE

TRANSFER PUMP

2шт.

78

NOT APPLICABLE

1шт.

79

NOT APPLICABLE

1шт.

80

3078626R1

BOLT

FITTING, LONG SCREWED

3шт.

81

795975R1

RETAINING PLATE

ADJUSTING BOTTOM

1шт.

82

795976R1

ROLLER

2шт.

83

795977R1

NO LONGER SERVICED

SHOE, ROLLER

2шт.

84

3078638R1

SHAFT

DRIVE

1шт.

85

3078635R1

SPARE PART THRUST

1шт.

86

3078634R1

WEIGHT

GOVERNOR

6шт.

87

3110449R1

WASHER

THRUST

1шт.

88

384762R1

RETAINER

WEIGHTS

1шт.

89

384786R1

RING

SEAL, DRIVE SHAFT

1шт.

90

796048R1

SCREW

ASSY, HEAD VENT

1шт.

3069751R1

SCREW

VENTED HEAD

1шт.

3069752R1

SCREW

VENT

1шт.

91

3111088R1

WASHER

HEAD SCREW

1шт.

92

796230R1

SCREW, COVER PLATE

2шт.

705380R1

SPARE PART SHAKEPROOF

2шт.

93

796030R1

SCREW, CAM

2шт.

94

796026R1

GASKET, HOUSING

2шт.

95

3078657R1

PISTON

HOUSING, PUMP DPA 3233 F 450

1шт.

3078658R1

SPARE PART PISTON, PUMP DPA 3233 F 460

1шт.

96

3078664R1

SPARE PART PISTON OUTER

1шт.

696032R1

SPRING PISTON INNER

1шт.

97

796034R1

SEAL, SPRING CAP

1шт.

98

796035R1

CAP, PISTON SPRING

1шт.

99

845892R1

SCREW, FOR CAP

1шт.

100

796002R1

COPPER WASHER

CAPSCREW

1шт.

101

796039R1

SHIM, 0.2 MM

1шт.

101

796040R1

SHIM, 0.5 MM

1шт.

101

796041R1

SHIM, 1.0 MM

1шт.

101

796042R1

SHIM, 2.0 MM, OPTIONAL

1шт.

102

3111111R1

SPARE PART STUD

1шт.

103

3078672R1

SCREW

HEAD LOCATING

1шт.

104

796047R1

BALL, STEEL

1шт.

105

3025565R1

SPARE PART STUD

1шт.

106

796028R1

NUT

CAP

1шт.

107

3111088R1

WASHER

CAP NUT

1шт.

108

3078659R1

SPARE PART HOUSING

1шт.

109

796034R1

SEAL, PLUG

1шт.

110

796033R1

PLUG, PISTON

1шт.

111

3078641R1

PLATE

COVER

1шт.

112

796228R1

GASKET

COVER PLATE

1шт.

113

3078640R1

HOUSING

PUMP

1шт.

3078674R1

SPARE PART RING, HOUSING

1шт.

Выбрано товаров: 128
