Запчасти Case IH 2400 (12-64) - PRIMARY FUEL FILTER, C.A.V. INJECTION Power

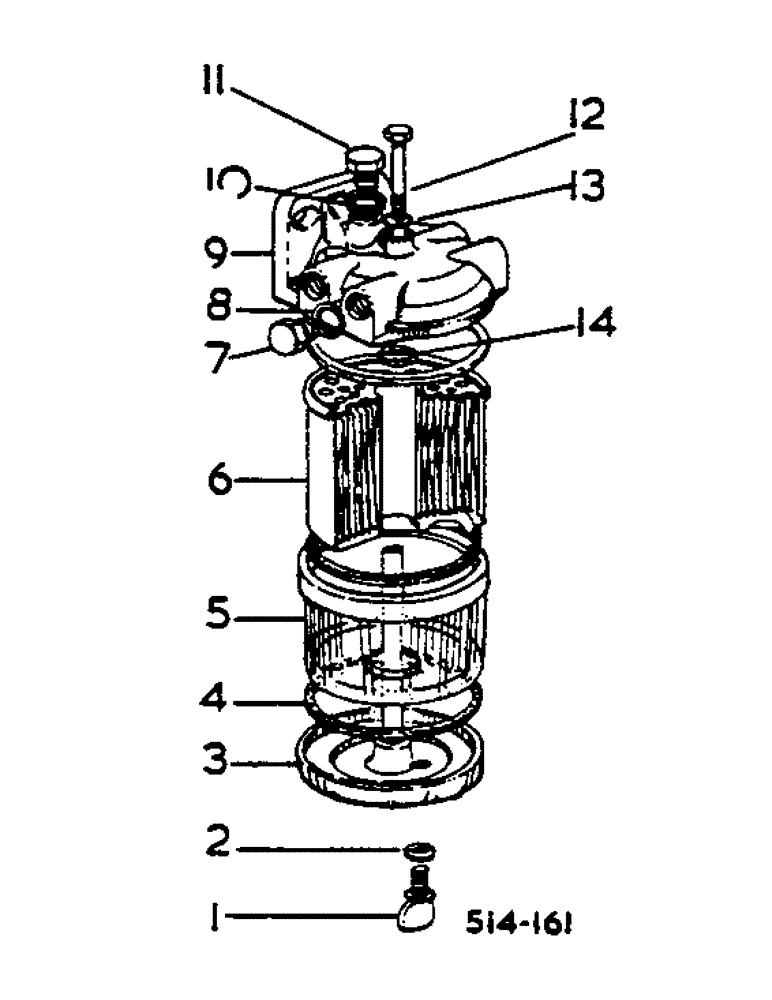

Схема запчастей Case IH 2400 - (12-64) - PRIMARY FUEL FILTER, C.A.V. INJECTION Power
5
1
4
11
10
13
12
9
3
6
14
8
2
7

Артикул

Название

Примечание

Количество

3138805R92

FILTER

ASSY, FUEL

1шт.

1

3072558R1

PLUG

DRAIN

1шт.

2

3072559R1

WASHER

SEAL, DRAIN PLUG

1шт.

3

3078688R91

COVER

BASE, FILTER ASSY, W/STUD

1шт.

4

3105001R1

SEAL

COVER AND BASE

3шт.

5

3069610R1

BOWL

WATER SEDIMENT GLASS

1шт.

6

3044506R93

FILTER, FUEL

ELEMENT, PACKAGE

1шт.

7

3078689R1

PLUG

CLOSING

2шт.

8

3078690R1

SEALING WASHER

SEAL, CLOSING PLUG

2шт.

9

3078693R2

FILTER HEAD

FILTER

1шт.

ON ORDERS FOR HEAD 3078692R1, FURNISH 3078693R2 W/TWO O-RING 796020R1 AND TWO WASHER 3144668R1.

1шт.

10

3049111R1

SEALING WASHER

SEAL, VENT PLUG

1шт.

11

3070770R1

PLUG

VENT

1шт.

12

3070771R2

BOLT

CENTER

1шт.

13

3144668R1

SEALING WASHER

SEAL

1шт.

13

796020R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

14

3044505R1

SEAL

RING, ELEMENT

1шт.

3044504R1

WASHER

SEAL, USED W/CENTER BOLT 3077071R1

1шт.

Выбрано товаров: 18
