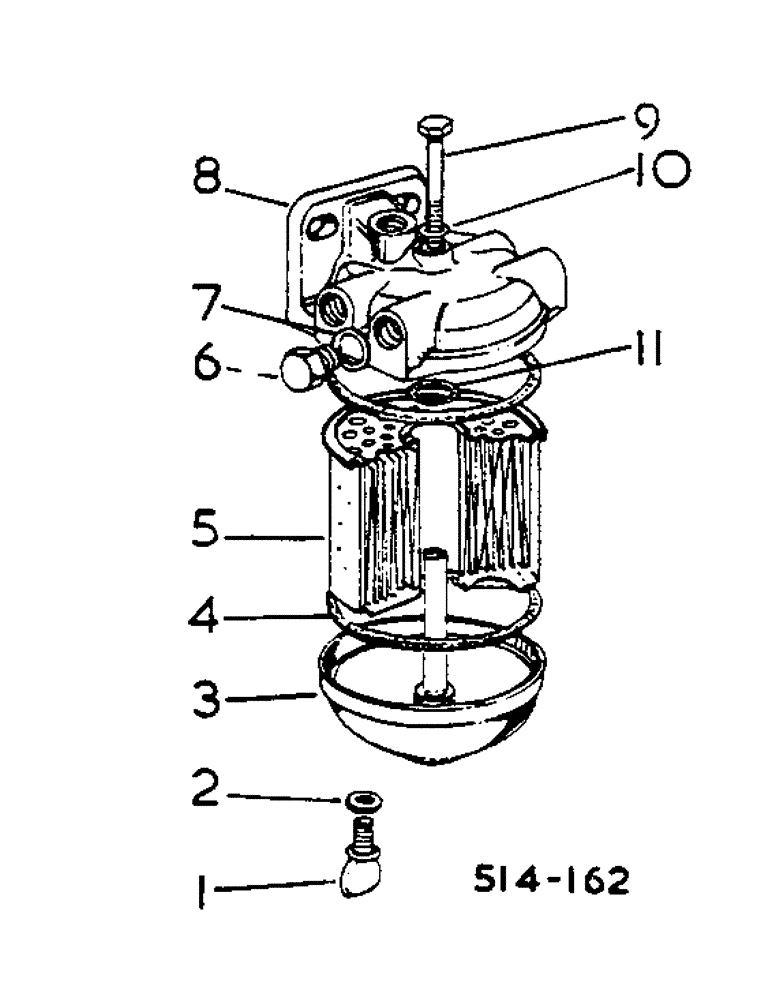

Запчасти Case IH 2400 (12-63) - FINAL FUEL FILTER, C.A.V. INJECTION Power

3138807R92

FILTER

ASSY, FUEL

1шт.

1

3072558R1

PLUG

DRAIN

1шт.

2

3072559R1

WASHER

SEAL, DRAIN PLUG

1шт.

3

3078691R91

COVER

BASE, FILTER ASSY, W/STUD

1шт.

4

3105001R1

SEAL

COVER BASE

2шт.

5

3044506R93

FILTER, FUEL

ELEMENT, PACKAGE

1шт.

6

3078689R1

PLUG

CLOSING

1шт.

7

3078690R1

SEALING WASHER

SEAL, CLOSING PLUG

1шт.

8

3078693R2

FILTER HEAD

FILTER

1шт.

ON ORDERS FOR HEAD 3078693R1, FURNISH R2 W/TWO O-RING 796020R1 AND TWO WASHER 3144668R1.

1шт.

9

3070771R2

BOLT

CENTER

1шт.

10

3144668R1

SEALING WASHER

1шт.

10

796028R1

NUT

O-RING

1шт.

11

3044505R1

SEAL

RING, ELEMENT

1шт.

3044504R1

WASHER

SEAL, USED W/CENTER BOLT 3070771R1

1шт.
