(12-54) - INJECTION NOZZLE, BOSCH INJECTION, UP TO 454 AND 2400/027204

Запчасти Case IH 2400 (12-54) - INJECTION NOZZLE, BOSCH INJECTION, UP TO 454 AND 2400/027204 Power

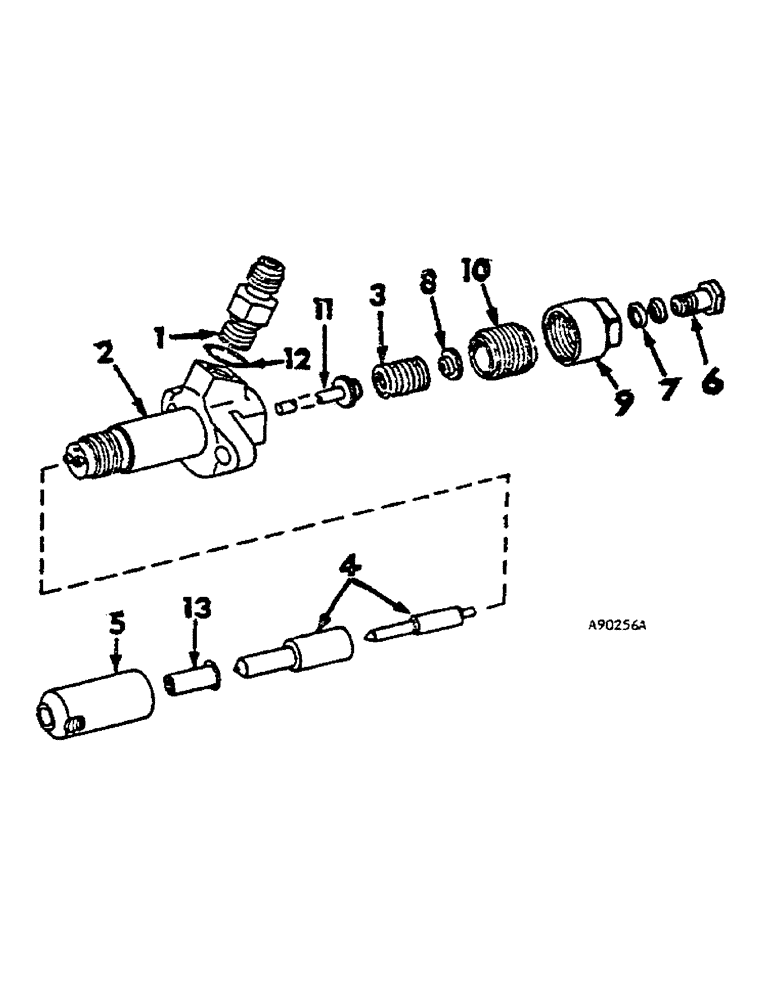

Схема запчастей Case IH 2400 - (12-54) - INJECTION NOZZLE, BOSCH INJECTION, UP TO 454 AND 2400/027204 Power
5
1
11
13
9
2
6
4
3
10
7
8
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3055423R93

HOLDER

ASSY, INJECTION NOZZLE

3шт.

735253C91

REMAN-FUEL INJECTOR

3шт.

1934195C1

CORE-FUEL INJECTOR

Return Number

3шт.

3055298R92

NOZZLE HOLDER

LESS REF. NO. 4

3шт.

1

3056940R1

CONNECTOR, ELEC

SPARE PART ASSY, FUEL INLET

1шт.

2

NSS

NOT SOLD SEPARAT

BODY, INJECTION NOZZLE HOLDER, ORDER HOLDER ASSY 3055423R93

1шт.

3

759844R1

SPRING

1шт.

4

3055428R92

FUEL SYSTEM INJECTOR

NOZZLE

1шт.

5

3133042R1

NOZZLE HOLDER

NUT, CAP

1шт.

6

3132999R1

HOLLOW SCREW

INLET UNION

1шт.

7

3053133R1

SEALING RING,M8 x 11.5 x 1

NOZZLE PACKING

6шт.

8

787049R1

CUP

BOLT, GUIDE

1шт.

9

3056943R1

CROWN NUT

NOZZLE HOLDER CAP

1шт.

10

3132998R1

SCREW

CAP, SPRING

1шт.

11

3056939R1

SPINDLE

W/GUIDE

1шт.

12

3056941R1

SEALING WASHER,6.5mm ID x 12mm OD x 1mm Thk

WASHER

1шт.

13

NOT USED

1шт.
