Запчасти Case IH 2400 (12-43) - CYLINDER HEAD AND RELATED PARTS Power

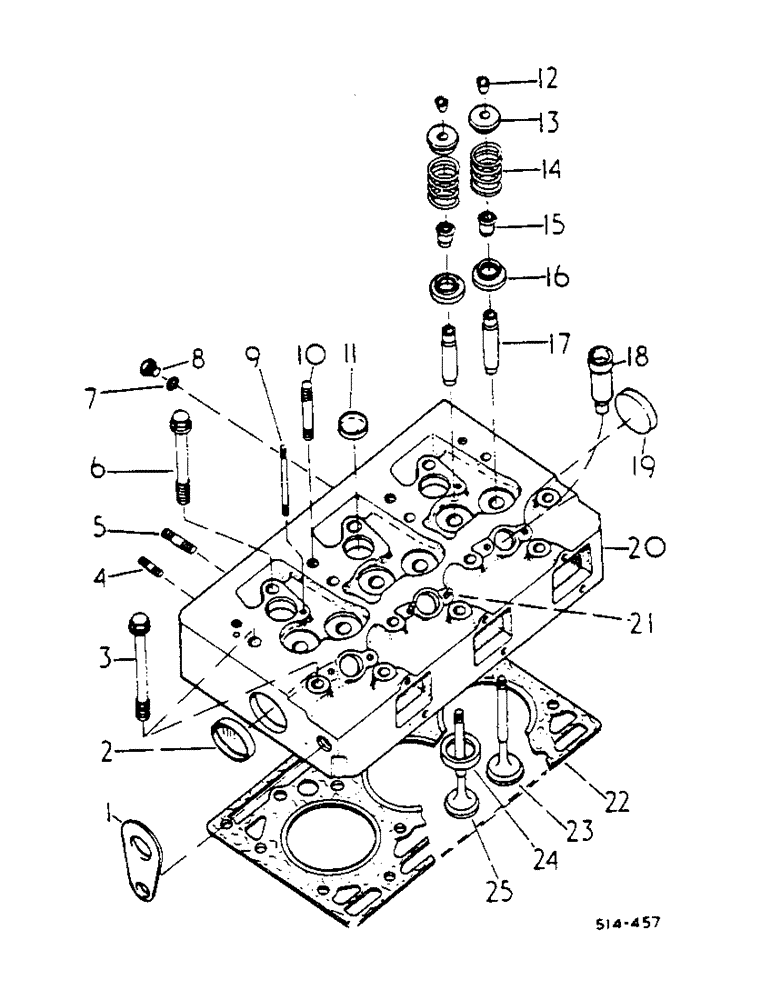

Схема запчастей Case IH 2400 - (12-43) - CYLINDER HEAD AND RELATED PARTS Power
2
16
13
25
1
23
20
12
22
3
9
11
19
4
6
14
15
5
24
17
10
21
7
8
18

Артикул

Название

Примечание

Количество

1

3055370R1

STIRRUP

SHACKLE, ENGINE MOUNTING FRONT

1шт.

NLS

NO LONGER SERVICED

3/4-10 X 1-1/8 HEX HD CAP

1шт.

2

933574R1

PLUG,M50, Conical

EXPANSION

1шт.

3

3138748R1

BOLT,Flng, 9/16" - 12 x 5-3/4"

CYLINDER HEAD

8шт.

4

3055221R1

STUD

WATER COLLECTING PIPE

6шт.

5

3055663R1

STUD

EXHAUST MANIFOLD

6шт.

6

3138747R1

BOLT,Cyl Hd, 9/16" - 12 x 123mm

CYLINDER HEAD

8шт.

7

718743R1

SEALING RING,M10 x 16 x 1

Packing

1шт.

8

933127R1

PLUG

1шт.

9

3055223R1

STUD

CYLINDER HEAD COVER

2шт.

425-115

NUT,5/16"-24, G5

2шт.

10

3055220R1

STUD,1/2" - 20 x 3.18"

ROCKER SHAFT BRACKET

4шт.

11

933750R1

PLUG,M32, Conical

EXPANSION

3шт.

12

3055057R1

KEY

SPARE PART ASSY, SPRING LOCK VALVE

6шт.

13

3055058R1

CAP

VALVE SPRING RETAINER

6шт.

14

3055060R1

SPRING

VALVE

6шт.

15

3136407R91

SEAL KIT

PACKAGE SERVICE, VALVE

1шт.

16

3218069R1

SPACER

SYNCHRO. BOSCH 025811 UP, HYDRO. BOSCH 056601 UP

6шт.

16

3055059R91

CAP

ROTATOR, UP TO SYNCHRO. BOSCH 025810, UP TO HYDRO. BOSCH 056600

6шт.

17

3055022R2

VALVE GUIDE

VALVE STEM

6шт.

18

3055344R1

SLEEVE

INSERT, NOZZLE HOLDER

3шт.

19

933574R1

PLUG,M50, Conical

EXPANSION

1шт.

20

3055366R96

HEAD (CYLINDER)

ASSY, GUIDES AND STUDS

1шт.

21

3055412R1

STUD

NOZZLE HOLDER

6шт.

22

3144181R2

GASKET

CYLINDER HEAD

1шт.

23

3055055R2

OVERSIZE INLET VALVE

INTAKE

3шт.

24

3132361R1

INSERT

INSERT, EXHAUST VALVE SEAT .016 O/S

3шт.

24

3132362R1

VALVE SEAT

EXHAUST VALVE SEAT .004 O/S

3шт.

25

3055056R2

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

3шт.

Выбрано товаров: 29
