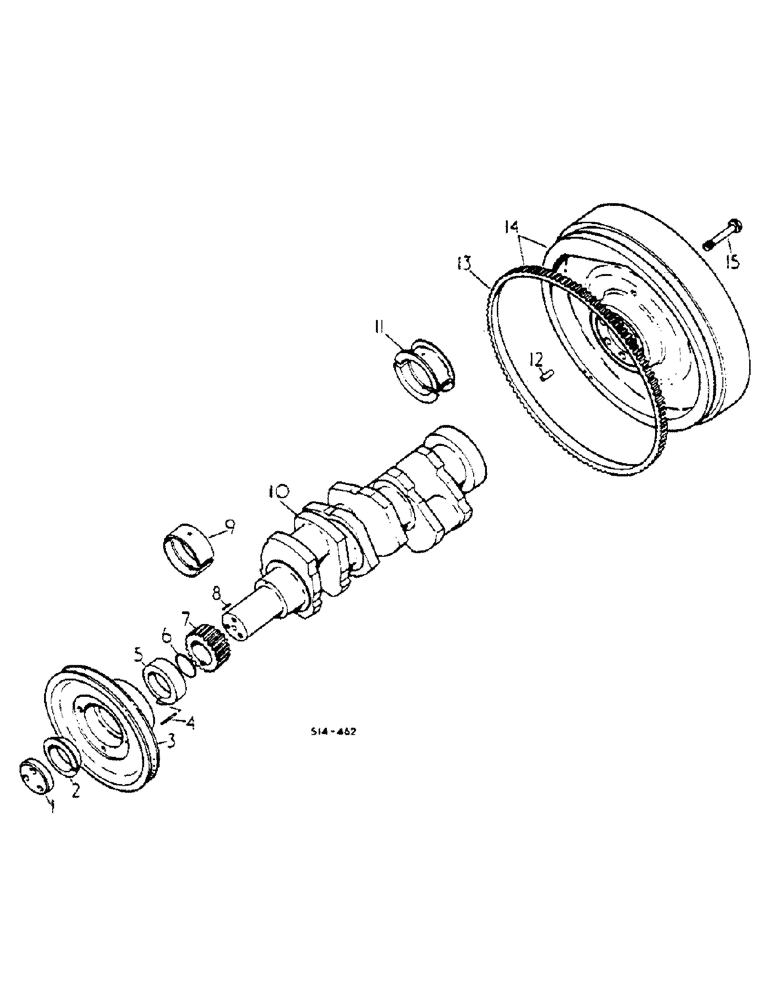

Запчасти Case IH 2400 (12-39) - CRANKSHAFT, FLYWHEEL AND BEARING Power

1

3055154R1

WASHER

PRESSURE

1шт.

308464R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

3шт.

2

31388

RING, CLAMPING

1шт.

3

3144613R1

PULLEY

CRANKSHAFT, BOSCH 21314 UP

1шт.

3

3138790R2

PULLEY

CRANKSHAFT, UP TO BOSCH 21313

1шт.

3

3136251R1

PULLEY

CRANKSHAFT, ORDER PULLEY 3138790R2 WITH RING 3138874R1

1шт.

3055153R1

SPACER,56.64mm ID x 61.72mm OD x 10.16mm L

PRESSURE

2шт.

3055152R91

RING

ELEMENT, SPRING TIGHTENER, USED WITH PULLEY 3136251R1

2шт.

4

932681R1

DOWEL,4mm OD x 24mm L

Pin

1шт.

5

3055151R31

RING

ASSY, DISTANCE

1шт.

6

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

7

3055028R1

PINION

GEAR, CRANKSHAFT, 33T

1шт.

8

932169R1

LOCK PIN,M4 x 10, Slotted

Roll

1шт.

9

3055130R21

CRANKSHAFT BEARING

BEARING ASSY, MAIN STD.

3шт.

9

3

SUPPORT

BEARING ASSY, MAIN .010" UNDERSIZE

3шт.

9

3056877R21

BEARING ASSY

ASSY, MAIN .020" UNDERSIZE

3шт.

9

3055779R21

BEARING ASSY

ASSY, MAIN .030" UNDERSIZE

3шт.

10

3055782R92

CRANKSHAFT BEARING

W/BEARINGS STD., BOSCH 21314 UP, CONSISTS OF (2) PIN 932169R1, (1) CRANKSHAFT, (1) PIN 141244, (1) GEAR 3055028R1, (1) BEARING 3055129R21, (3) BEARING 3055130R21, (3) BEARING 3055351R91

1шт.

11

3055129R21

CRANKSHAFT BEARING

ASSY, MAIN STD.

1шт.

11

3056820R11

BEARING ASSY

ASSY, MAIN .010" UNDERSIZE

1шт.

11

3056875R11

BEARING ASSY

ASSY, MAIN .020" UNDERSIZE

1шт.

11

3055776R11

BEARING ASSY

ASSY, MAIN .030" UNDERSIZE

1шт.

12

NLS

NO LONGER SERVICED

3/8 X 1 DOWEL

1шт.

13

60883H

RING GEAR

1шт.

14

3144614R94

FLYWHEEL

EU

1шт.

14

3136044R41

FLYWHEEL WITH GEAR

NA, 11"

1шт.

15

3218037R1

BOLT,Hex, 1/2" - 20 x 58.5mm

Flywheel

7шт.
