Запчасти Case IH 2400 (12-37) - CRANKCASE FRONT COVER AND RELATED PARTS Power

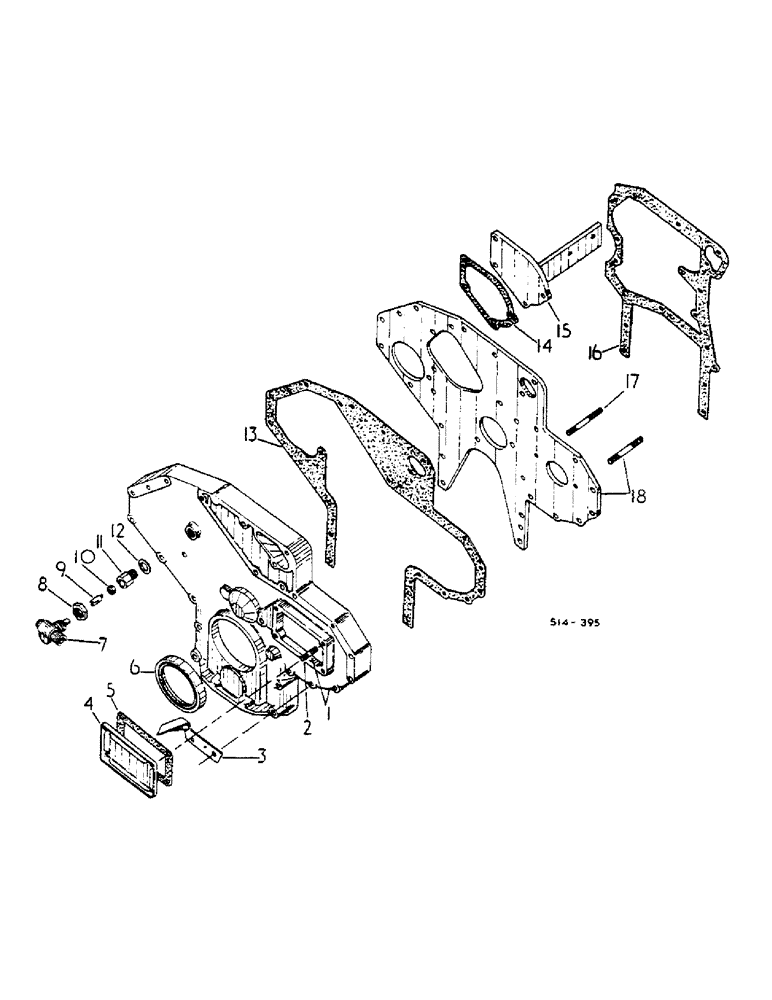

Схема запчастей Case IH 2400 - (12-37) - CRANKCASE FRONT COVER AND RELATED PARTS Power
10
4
1
5
12
7
3
18
2
16
6
13
14
17
8
15
11
9

Артикул

Название

Примечание

Количество

1

3136057R14

COVER ASSY

CRANKCASE FRONT

1шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

7шт.

103320

LOCK WASHER,5/16"

7шт.

993570R1

SPARE PART SPRING

6шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

2

3055242R1

STUD

1шт.

3

3136252R11

INDICATOR

TIMING

1шт.

4

3055140R1

COVER

INJECTION PUMP

1шт.

103320

LOCK WASHER,5/16"

4шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

131042H

WASHER

11/32 X 11/16 X 16 GA

4шт.

5

3138640R1

GASKET

INJECTION PUMP COVER

1шт.

6

3136724R94

GASKET

PACKAGE, CRANKCASE OIL SEAL SERVICE, CONSISTS OF (1) RING 3136723R21, (1) PIN 932681R1, (1) O-RING 713778R1, (1) SEAL

1шт.

7

3055982R93

DRIVE, ANGLE

1шт.

8

3132116R1

NUT

HEX

1шт.

9

3056986R1

SUPPORT

SHAFT, ANGLE EXTENSION

1шт.

10

3052295R91

SEAL,6mm ID x 16mm OD x 7mm Thk

RING, RADIAL

1шт.

11

3055983R1

REDUCER FITTING

SPACER

1шт.

12

933222R1

SEALING WASHER,M18 x 22 x 1.5

1шт.

13

3055994R1

GASKET

CRANKCASE FRONT COVER

1шт.

14

3132541R1

GASKET

CLOSING COVER

1шт.

15

3138776R91

COVER

ASSY, HYDROSTATIC C.A.V. 200000 UP, SYNCHROMESH C.A.V. 160000 UP

1шт.

15

3136049R11

COVER

SPARE PART ASSY, BOSCH INJECTION

1шт.

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

4шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

16

3055239R1

GASKET

FRONT PLATE

1шт.

17

3055065R1

STUD

HYDROSTATIC C.A.V. 200000 UP, SYNCHROMESH C.A.V. 160000 UP

3шт.

17

3055065R1

STUD

BOSCH INJECTION

2шт.

9635082

NUT,5/16" - 18, Gr 5

Hydrostatic C.A.V. 200000 up, Synchromesh C.A.V. 160000 up

3шт.

9635082

NUT,5/16" - 18, Gr 5

Bosch Injection

2шт.

18

3138774R91

PLATE

ASSY, CRANKCASE FRONT, HYDROSTATIC C.A.V. 200000 UP, SYNCHROMESH C.A.V. 160000 UP

1шт.

18

3055996R11

PLATE ASSY.

CRANKCASE FRONT, BOSCH INJECTION

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

7шт.

103320

LOCK WASHER,5/16"

7шт.

20990R1

PLUG

3/8-18 AUTO HEX HD PIPE

1шт.

Выбрано товаров: 38
