Запчасти Case IH 2400 (12-33) - CRANKCASE AND RELATED PARTS Power

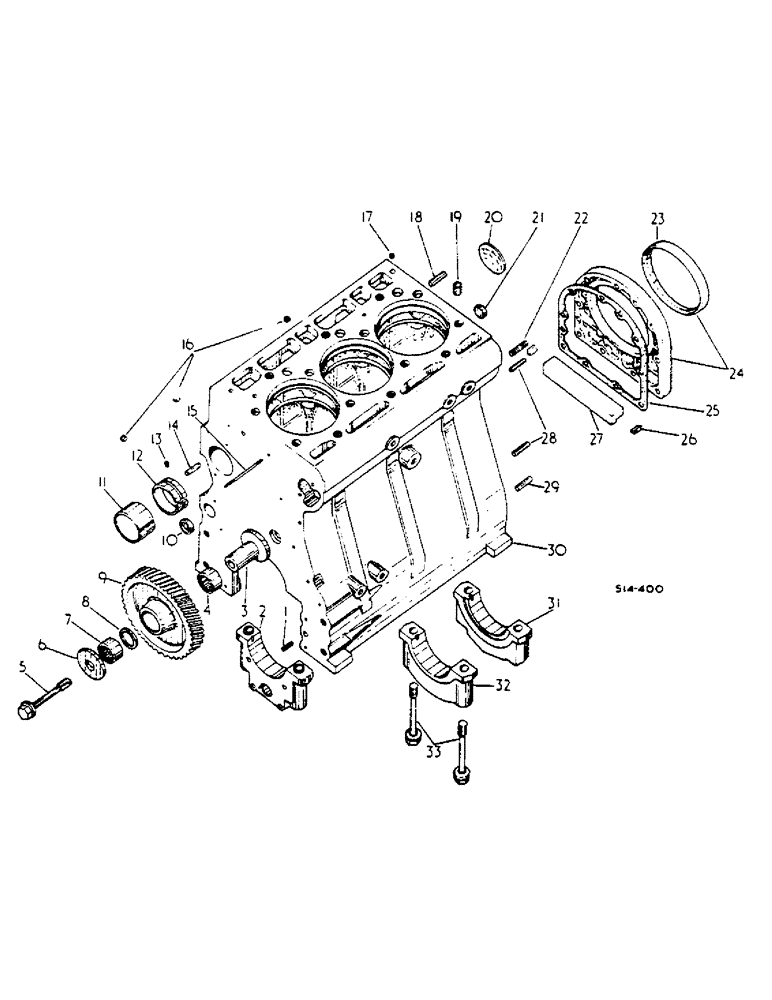

Схема запчастей Case IH 2400 - (12-33) - CRANKCASE AND RELATED PARTS Power
31
4
3
5
16
10
25
17
7
6
14
24
22
21
19
27
33
32
23
26
12
18
15
2
11
1
30
8
9
29
13
28
20

Артикул

Название

Примечание

Количество

1

141242

DOWEL

PIN, 3/8 X 7/8

1шт.

2

NSS

NOT SOLD SEPARAT

CAP, CRANKSHAFT FRONT BEARING

1шт.

3

3055373R1

CARRIER

IDLER GEAR

1шт.

4

3058816R91

NEEDLE BEARING CAGE,35mm ID x 42mm OD x 17.8mm W

RETAINER

1шт.

4

3136515R91

BEARING

RETAINER, NEEDLE, OPTIONAL

1шт.

5

3055374R2

BOLT

IDLER GEAR CARRIER

1шт.

6

3055372R1

DISC

WASHER, THRUST

1шт.

7

3058816R91

NEEDLE BEARING CAGE,35mm ID x 42mm OD x 17.8mm W

RETAINER

1шт.

7

3136515R91

BEARING

RETAINER, NEEDLE, OPTIONAL

1шт.

8

787656R1

SPACER,35.5mm ID x 41mm OD x 4mm L

RING, DISTANCE

1шт.

9

3055043R3

PINION

GEAR, IDLER, 68 TEETH

1шт.

10

933537R1

PLUG,M25, Conical

COVER, CLOSING

1шт.

11

3055008R1

CAMSHAFT BEARING

BEARING, CAMSHAFT FRONT

1шт.

12

3055009R1

BEARING LINER

CAMSHAFT

3шт.

13

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

1/4 Headless pipe

2шт.

14

NLS

NO LONGER SERVICED

PIN, 3/8 X 7/8

4шт.

15

3055989R1

STUD

1шт.

16

3144520R1

PLUG

1/8 SLOTTED HEADLESS PIPE

3шт.

17

3136004R1

COVER

CLOSING

1шт.

18

141284

PIN,25.4mm OD x 31.75mm L

1шт.

19

3055007R1

BUSHING

DOWEL

10шт.

20

41-3044

PLUG,Exp, 2 3/4"

2-3/4 EXPANSION

1шт.

21

933537R1

PLUG,M25, Conical

COVER CLOSING

1шт.

22

3055270R1

STUD

REAR

1шт.

23

3138701R91

SEAL

1шт.

24

3055216R1

RETAINER

C/W OIL SEAL

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

933570R1

WASHER

DISC, SPRING

9шт.

25

3055215R1

GASKET

SEAL RETAINER

1шт.

26

714868R1

SEALING STRIP

SEAL

2шт.

27

3055214R1

SUPPORT

CRANKCASE SEALING

1шт.

28

141242

DOWEL

PIN, 3/8 X 7/8

2шт.

29

141284

PIN,25.4mm OD x 31.75mm L

2шт.

30

3055001R35

CRANKCASE

CPTE

1шт.

CONSISTS OF (1) CRANKCASE, (2) PLUG 103883, (3) PLUG 3144520R1, (4) PIN 141242, (2) PIN 141284, (1) PLUG 172602, (1) COVER 3136004R1, (2) COVER 933537R1, (2) BUSHING 3055007R1, (1) BEARING 3055008R1, (3) BEARING 3055009R1, (8) SCREW 3138580R1, (1) CAP ASSY, (2) CAP ASSY, (1) CAP ASSY, (1) STUD 3055270R1, (1) STUD 3055989R1, (8) BUSHING 3055007R1

1шт.

31

3144436R91

CRANKSHAFT BEARING

PACKAGE, REAR MAIN CAP, CONSISTS OF (1) CAP, (2) BOLTS, INSTRUCTION PAMPHLET

1шт.

32

3144438R91

BEARING ASSY

PACKAGE, CAP, CONSISTS OF (1) CAP, (2) BOLTS, INSTRUCTION PAMPHLET

2шт.

33

3138580R1

BOLT,Hex Flg, 9/16" - 12 x 120.70mm, 12.9

Bearing cap, 454GD/D027045 UP

1шт.

33

3138886R1

BOLT

BEARING CAP, UP TO 454GD/D027044

1шт.

Выбрано товаров: 40
