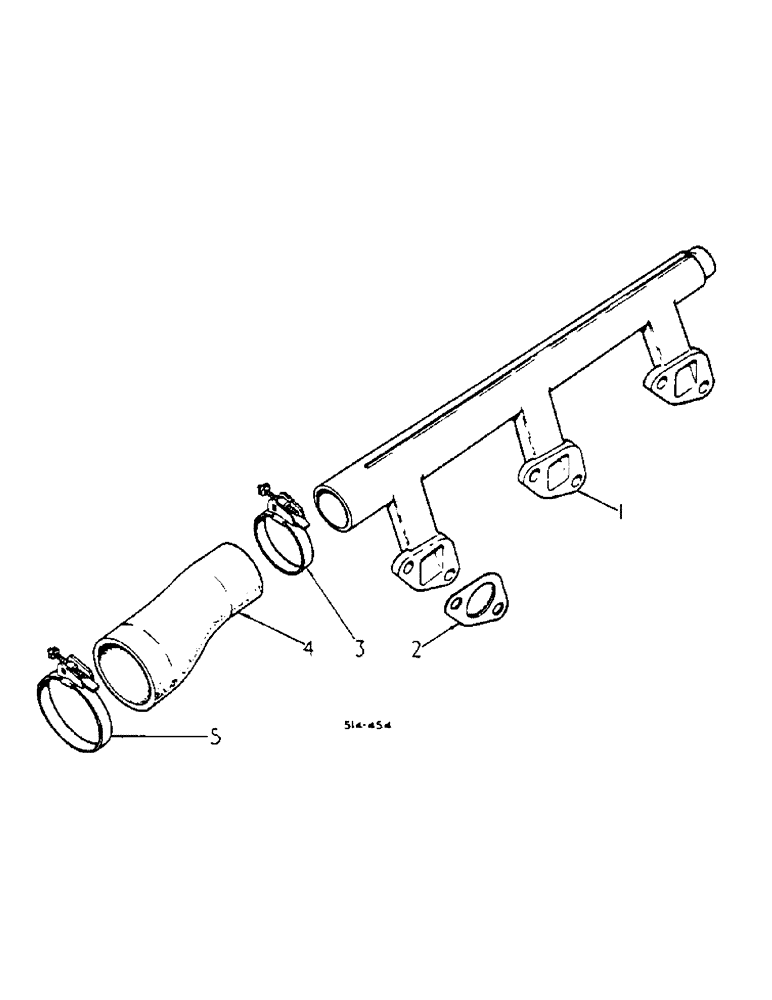

Запчасти Case IH 2400 (12-30) - WATER MANIFOLD, UP TO DT2D 029416 SYNCHRO Power

1

3055254R1

PIPE

WATER

1шт.

425-115

NUT,5/16"-24, G5

6шт.

933570R1

WASHER

DISC, SPRING

5шт.

933161R2

SEALING RING

RING, PACKING

1шт.

712616R1

PLUG,Hex, M14 x 1.5

Packing

1шт.

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

1шт.

2

3055306R1

GASKET

WATER PIPE

3шт.

3

3136499R1

CLAMP

HOSE

1шт.

3

755023R91

STRAP

CLAMP, HOSE, OPTIONAL

1шт.

4

3132144R1

HOSE,38.60 mm ID, 50.70 mm ID x 112.00 mm

Connecting

1шт.

5

316501R1

CLAMP, HOSE

1шт.

5

755023R91

STRAP

CLAMP, HOSE, OPTIONAL

1шт.
