Запчасти Case IH 2400 (12-29) - WATER PUMP Power

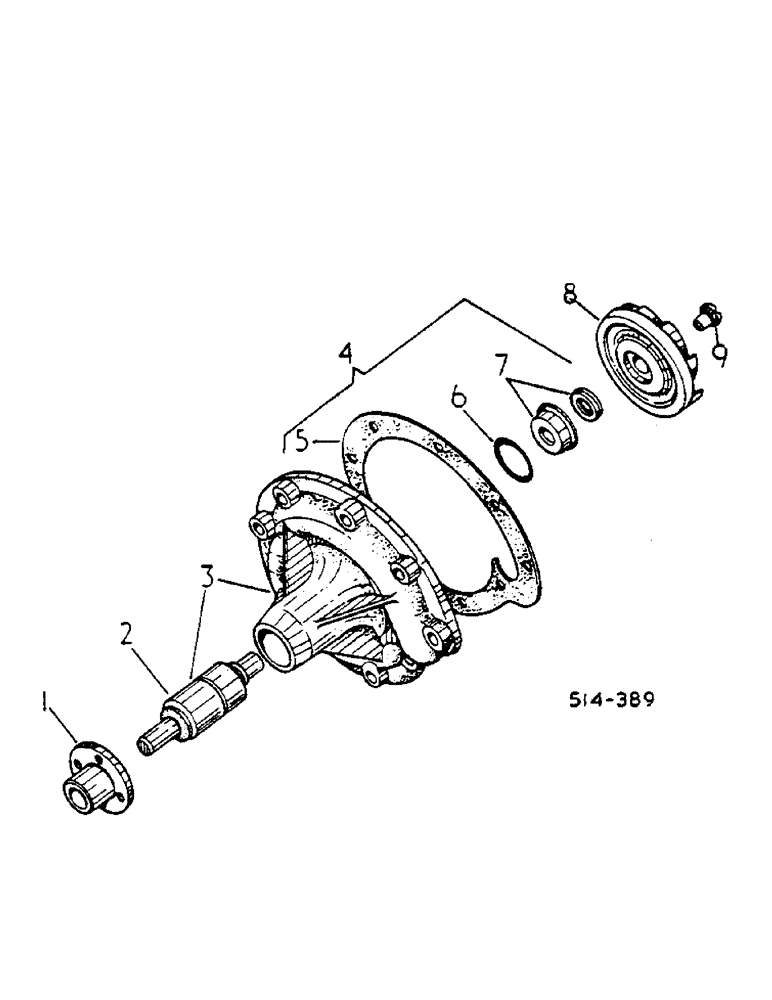

Схема запчастей Case IH 2400 - (12-29) - WATER PUMP Power
6
9
4
5
1
3
7
8
2

Артикул

Название

Примечание

Количество

3136053R91

WATER PUMP

ASSY

1шт.

3136053R92GV

WATER PUMP

Value, Water Pump Assy.

1шт.

735102C91

REMAN-WATER PUMP

Reman for New PN 3136053R91

1шт.

1928123C1

CORE-WATER PUMP

Return Number

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

8шт.

3050129R1

LOCK WASHER

WASHER, 5/16 MED LOCK

8шт.

1

3132146R1

HUB

PULLEY

1шт.

1

3132148R1

HUB

PULLEY, OPTIONAL

1шт.

2

3055191R91

BEARING ASSY

PUMP

1шт.

2

3055192R91

BEARING ASSY,38.1mm OD x 129.5mm L

PUMP, OPTIONAL

1шт.

3

3132677R21

BODY

ASSY, C/W BEARING

1шт.

4

3055285R92

STRIPPER PACKAGE

WATER PUMP, RECONDITIONING, CONSISTS OF (1) RING, (1) PACKING, (1) O-RING, (1) GASKET 3055177R1

1шт.

5

3055177R1

GASKET

WATER PUMP

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING, ORDER PACKAGE 3055285R92

1шт.

7

NSS

NOT SOLD SEPARAT

RING AND PACKING, ORDER PACKAGE 3055R92

1шт.

8

3055211R2

IMPELLER

PUMP

1шт.

9

3055308R1

PLUG

CLOSING

1шт.

401124R2

PULLEY

WATER PUMP

1шт.

3113329R1

BELT,0.53" W

Fan

1шт.

403335R1

SPACER

2шт.

82797R91

NO LONGER SERVICED

BLADE ASSY, FAN

1шт.

86897R91

FAN

BLADE ASSY, OPTIONAL

1шт.

103319

LOCK WASHER,1/4"

4шт.

433065

BOLT,Hex, 1/4" - 28 x 3 1/2", Gr 5

4шт.

Выбрано товаров: 24
