Запчасти Case IH 2400 (12-27) - CONNECTING ROD, PISTON AND SLEEVE Power

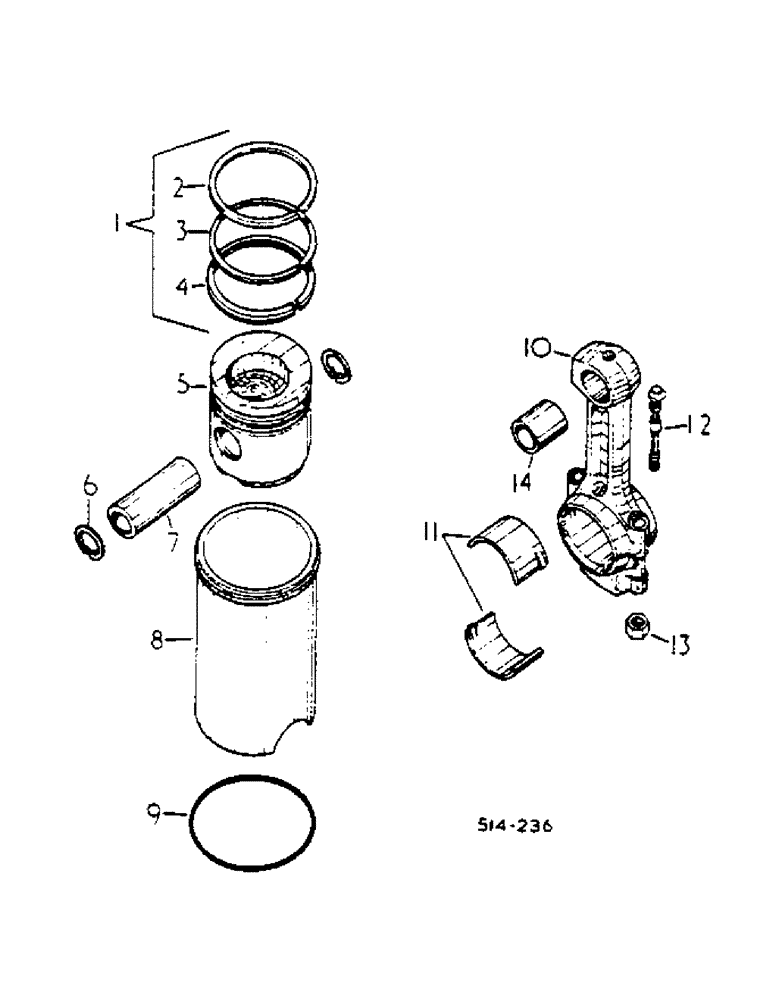

Схема запчастей Case IH 2400 - (12-27) - CONNECTING ROD, PISTON AND SLEEVE Power
13
9
10
14
1
4
11
3
5
6
8
2
7
12

Артикул

Название

Примечание

Количество

1

3144452R92

PISTON RING SET

454 GD/02483 UP

3шт.

1

3139594R91

PISTON RING

3шт.

1

671510R91

SET OF RINGS

PISTON, OPTIONAL, UP TO 454 GD/02482, USED W/3 RING PISTONS

3шт.

1

3059262R92

PISTON RING SET

USED W/4 RING PISTONS

1шт.

2

3055600R2

RING

COMPRESSION, FIRST, USED W/4 RING PISTONS

3шт.

2

RING, COMPRESSION, FIRST, USED W/3 RING PISTONS, ORDER SET 3139549R91, 671510R91 OR 3144452R92

3шт.

3

3055332R1

RING

SPARE PART COMPRESSION, SECOND, USED W/4 RING PISTONS

3шт.

3

RING, COMPRESSION, SECOND, USED W/3 RING PISTONS, ORDER SET 3139549R91, 671510R91 OR 3144452R92

3шт.

4

3055334R91

RING, COMPRESSION, FOURTH, USED W/4 RING PISTONS

3шт.

4

RING, COMPRESSION, THIRD, USED W/3 RING PISTONS, ORDER SET 3139549R91, 671510R91 OR 3144452R92

3шт.

5

3144257R93

PISTON ASSY

W/SLEEVE, 454 GD/02483 UP

3шт.

5

3139591R93

PISTON ASSY

W/SLEEVE, UP TO 454 GD/02482, 3 PISTON RING

3шт.

5

3136070R94

PISTON

W/SLEEVE, 4 PISTON RING, ORDER PISTON 3139591R93

3шт.

6

933327R1

SNAP RING,M36, Int

SPRING, RETAINER

6шт.

7

3055217R2

PISTON PIN

PISTON

3шт.

8

NSS

NOT SOLD SEPARAT

SLEEVE, CYLINDER

3шт.

9

3218603R1

O-RING

3шт.

10

3055030R24

ROD, CONNECTING

ASSY

3шт.

11

3055351R91

BEARING ASSY

ASSY, CONNECTING ROD

3шт.

11

3056834R11

BEARING ASSY

ASSY, .010" U/S

3шт.

11

3056879R11

BEARING ASSY

ASSY, .020" U/S

3шт.

11

3055781R11

BEARING ASSY

ASSY, CONNECTING ROD, .030" U/S

3шт.

12

3055033R11

BOLT

Connecting rod w/nut

6шт.

13

NSS

NOT SOLD SEPARAT

NUT, CONNECTING ROD BOLT

6шт.

14

3132018R1

BUSHING

PISTON PIN

3шт.

3055333R1

RING

COMPRESSION, THIRD, USED W/4 RING PISTONS

3шт.

Выбрано товаров: 26
